Outdoor Aerial Waterproof Fiber Enclosure F2E-701B

Publisher: MJADOM

Author: Andy

RGP-F2E-701B Fiber Optic Splice & Splitter Closure applies vented structure and mechanical locking without using screws.


There are two connection ways: direct connection and splitting connection. Suitable for different ways of cable's divergent and splicing, including uncut cable.

RGP-F2E-701B Fiber Optic Splice & Splitter Closure applies vented structure and mechanical locking without using screws.

There are two connection ways: direct connection and splitting connection. Suitable for different ways of cable’s divergent and splicing, including uncut cable.


All the metal parts inside are made of SUS304 Stainless Steel.

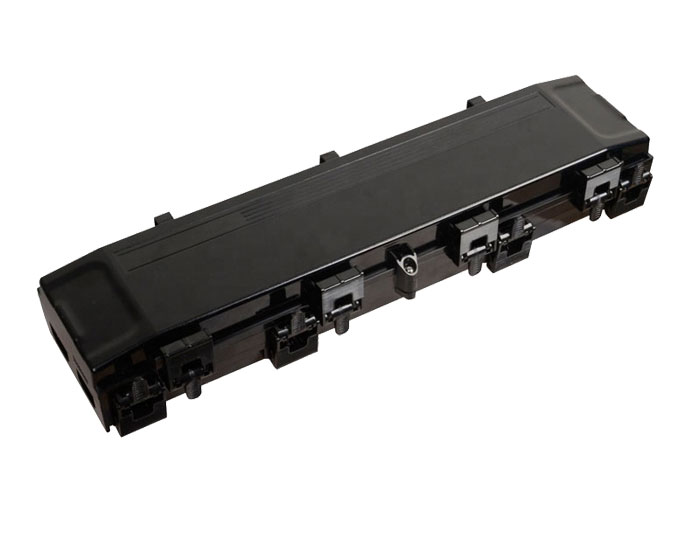

China Outdoor Fiber Enclosure F2E-701B

Box Material: Modified P.P

Seal Material: Vulcanized Silicone Rubber.

The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as the smooth appearance and reliable mechanical structure.

Installation Method: Aerial or Hang on the entrance cable directly.

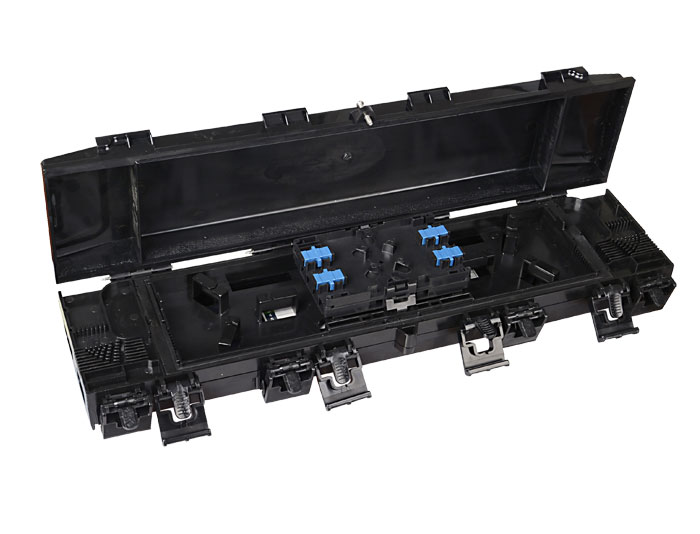

A two-layer system, bottom layer for splicing, top layer for splitting & distribution.



The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.



The protection grade reaches IP 65.

Installation style: Aerial

Installation Method: Aerial or Hang on the entrance cable directly.

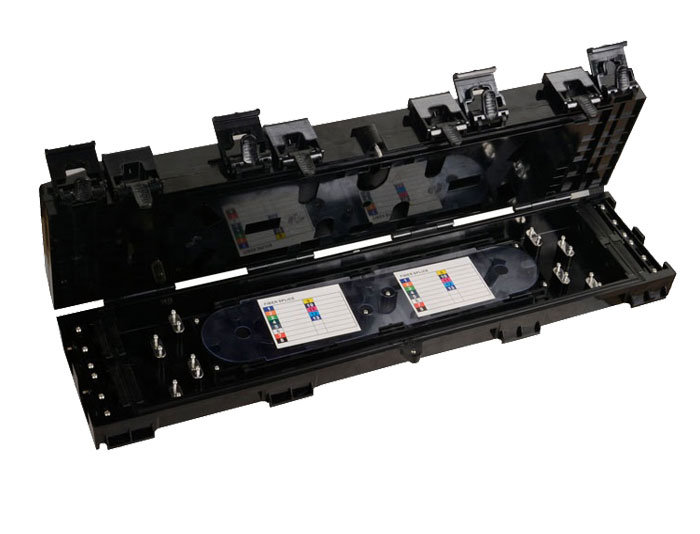

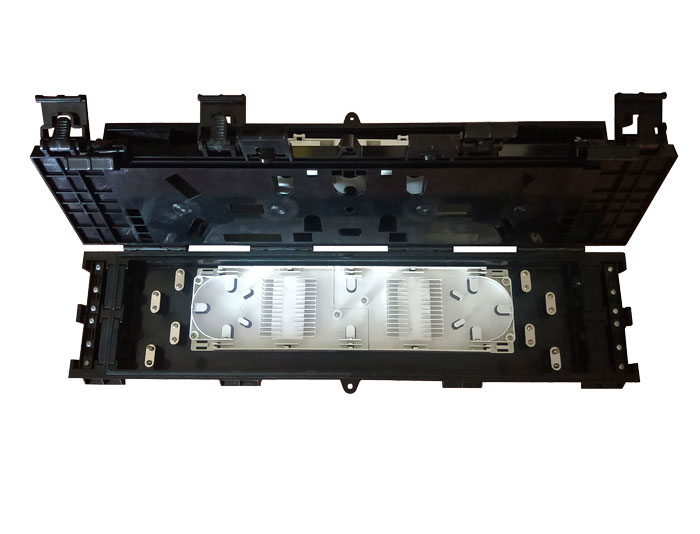

A two-layer system, bottom layer for splicing, top layer for splitting & distribution.

Structured construction fixed by a simple buckle, easy for operation.

China Outdoor Fiber Enclosure F2E-701B


Aerial installation.

Configuration

Specification:

Model
Splitter Capacity2pcs of 1*8 or 1pc of 1*16 PLC Splitters
TypeInline type
Number of Inlet/Outlet Feeder Cable Ports8 ports
Cable Diameter8 ports× 6~16mm
Number of Inlet/Outlet Drop Cable Ports16 ports
Cable Diameter16 ports× 2*3mm, 2mm
Maximum CapacityBunchy: 24 fibers
Capacity per Splice TrayBunchy: 12 fibers
Quantity of Splice Tray2pcs
Body MaterialModified P.P
Assembling methodAerial Mounting
Dimension600(L)×190(W)×100(H)mm
Net Weight2.72KG
Temperature-20℃~65℃


Standard Accessories:

ItemNameUsage
1Fiber Splice Protective SleevesTo protect fiber splices
2Screw holeLocking the closure for anti-theft
3Middle HousingSeparating and storage the drop cable
4Base HousingInstalling and fixing Main Cable;Installing Splice Tray.
5Main Cable BracketLocking Main Cable
6Main Cable GasketSealing Main Cable Port
7Bottom Housing GasketSealing the Housing
8Strength Member BracketLocking Messenger and Strength Member
9Splice TrayInstalling the spliced fiber
10Drop Cable Arrangement partInstalling the Drop Cable
11Exit of the Drop CableArranging the Drop Cable
12Nylon TieTo fix buffer tubes with fibers inside
13Grounding WireTo connect with grounding device
14Abrasive ClothTo polish fiber optic cable
15Labelling PaperTo label fibers
16Buffer TubeTo protect fibers and be fixed on splice trays
17GreaseTo install fiber cable into sealing gaskets easier
18ScrewsTo fix splitter cassette


Shipping Infomation

SpecificationSizePcs/CartonWeight
Internal Carton Box610mmx195mmx105mm1 pc2.75 KGS
Outside Carton Box640mmx360mmx340mm6 pcs16.5 KGS
