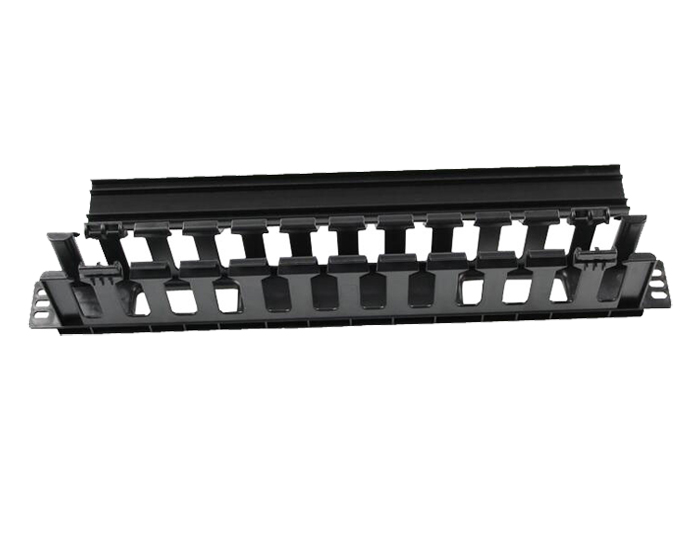

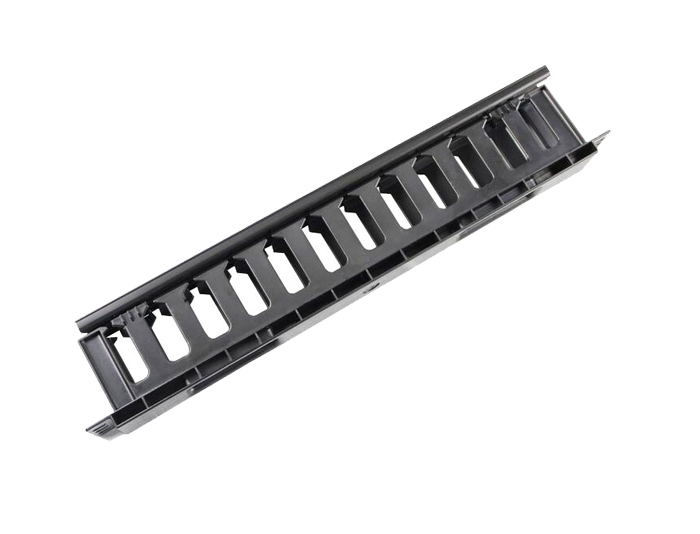

1U 12 Way Metal Single Sided Horizontal Cable Manager With Finger Duct TSF-306B

Publisher: MJADOM

Author: Andy

Horizontal Cable Manager provides a neat and efficient way to manage patch cables on any standard EIA 19 inch (483mm) rack or cabinet. The single-sided cable manager is 1U Cable Manager / Server Rack cable management, The removable cover makes it easy to add or remove bundled cables quickly.

Description:

Horizontal Cable Manager provides a neat and efficient way to manage patch cables on any standard EIA 19 inch (483mm) rack or cabinet. They ensure optimal cable radius to prevent deterioration or breakage. Cable Manager 1U manages copper, fiber optic, and coax cables. Cable Manager for Rack Flexible fingers maximize the care and protection of the equipment and cables, keeping the structured cabling system unhurt and totally functional. The single-sided cable manager is 1U Cable Manager / Server Rack cable management, The removable cover makes it easy to add or remove bundled cables quickly.



MJADOM offers a wide range of cable manager racks, vertical cable managers, and horizontal cable managers, pathway systems, and accessories to meet a variety of applications from the data center to the LAN. Cable Manager is the ideal structured cabling system for telecommunications space or data centers.


Features:

Integral bend radius control, Maintains bend radius as cables transition to and from horizontal and vertical pathways.

Convenient hinged cover, Allows access to the cable pathway without having to completely remove the cover.

Cable Manager for Rack Flexible finger dust, Provides for easy installation, and organizes cables simplifying moves, adds, and changes.

Cable pass-through holes, Provides ease of installation and cable maintenance.

1U Cable Manager more cables in 1U space, saving rack space and money.

The requirements of UL 94V-0 flammability rating.

Snap-on covers are easy to use and open 180° up or down with adjacent installation.


Product Details:

Rack Space1UTypeFinger Duct with Cover
OrientationHorizontalConfiguration TypeSingle-Sided
Capacity12 WayEnvironmentIndoor Rack, Cabinet
MaterialMetalColorBlack
InstallationStandard EIA 19" Rack RailsStandards MetRoHS Compliant
Dimensions (HxWxD)44mmx483mmx87mmIncluded AccessoriesM6*15mm Screw x4 and M6 Nut x4


Application:

Data applications (19" Rack & Cabinet).

Perfect for Private/enterprise networks.

Ideal for switches, servers, patch panels, or copper cabling solutions.

Configuration

Order Information:

Model No.Product Description
RGP-TSF-306A19" 1U Metal Horizontal Cable Manager with 5 D-rings
RGP-TSF-306B19" 1U 12 Way Metal Single-Sided Horizontal Cable Manager with Finger Duct
RGP-TSF-306C19" 1U 24 Way Metal Single-Sided Horizontal Cable Manager with Finger Duct
RGP-TSF-306D19 Inch 1U Brush Type Network Rack Cable Management
