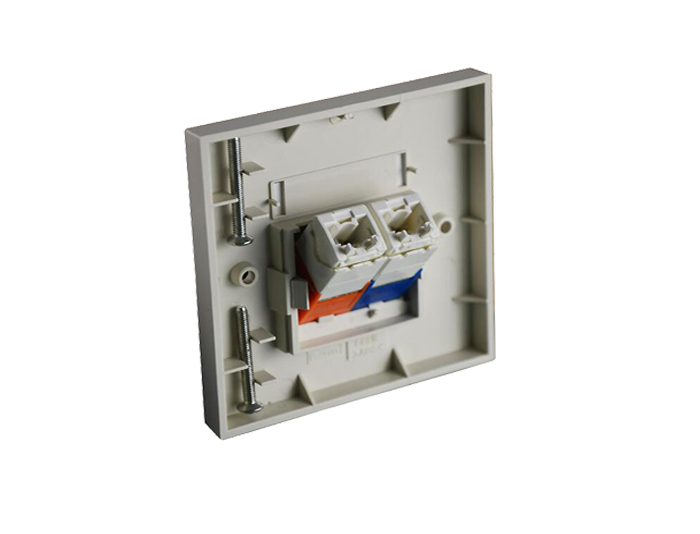

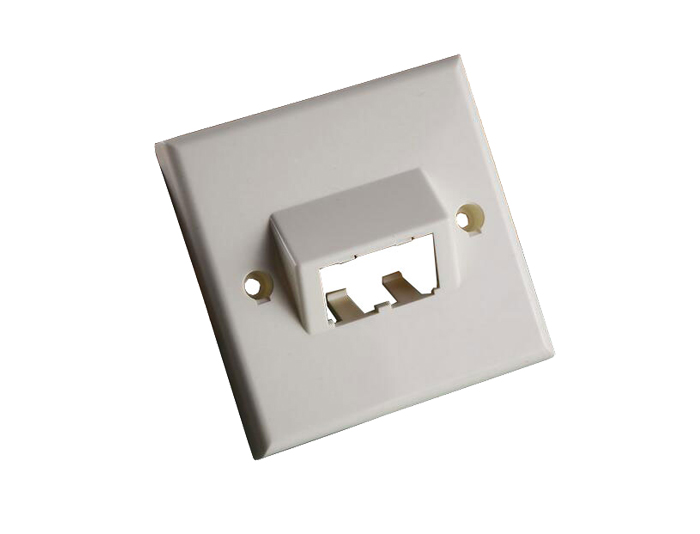

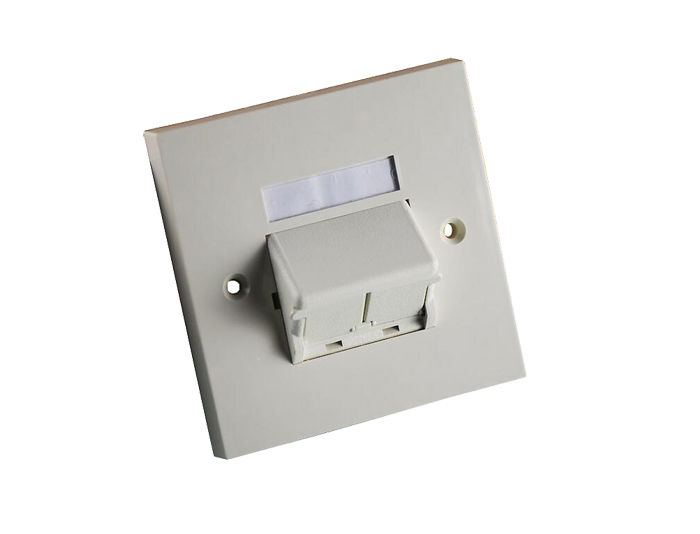

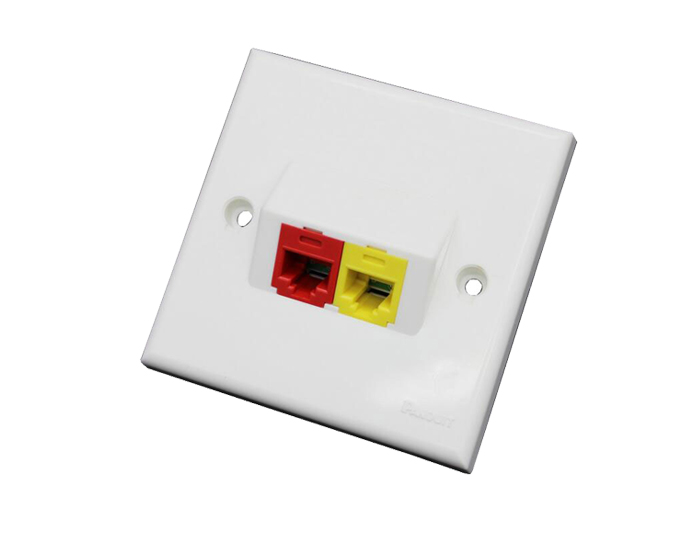

86x86 Type, Double Port, Angled CAT5 RJ45 Faceplate TSF-301F

Publisher: MJADOM

Author: Andy

Faceplates also known as Faceplate RJ45 or Faceplate Cat6 or Faceplate Cat5 or Faceplate Module, Ethernet faceplates are wall mount fittings that house Krone 110 RJ45 data sockets, USB, HDMI, RCA, and 3.5mm Stereo audio sockets.

Description:

Faceplates also known as Faceplate RJ45 or Faceplate Cat6 or Faceplate Cat5 or Faceplate Module, MJADOM offers faceplates are configured to fit a standard single gang outlet box. They come with two-port which can be configured with modular connectors for voice, data, audio, video, and fiber-optic connectivity. Also offers a full range of colored Keystone Jacks to help identify the port to the workstation. The faceplate outlet is made with tough Polycarbonate (PC) plastic for long-lasting use and complies with UL 94 plastics flammability standard.



Faceplate socket shall be applied together with all kinds of Modular Jack, Available in single port, double ports, triple ports, quad ports, and six ports.



Ethernet faceplates are wall mount fittings that house Krone 110 RJ45 data sockets, USB, HDMI, RCA, and 3.5mm Stereo audio sockets.


Features:

Faceplate Cat6 designed to support the distribution of voice, data, and other communication.

Cat6 Faceplate rugged and durable construction.

Works with all RJ45 Keystone Jacks, USB, HDMI, RCA modular connectors that easily snap-in.

Faceplate Module is available in single port, double ports, triple ports, quad ports, and six ports.

Impact resistant plastic - Polycarbonate(PC).

Exceeds ANSI/TIA-568-C requirements for permanent performances.


Technical Details:

Material
PlasticPolycarbonate PC, UL94V-0ColorWhite or Ivory
Module AcceptRJ45 data sockets, USB, HDMI, RCAScrewsM-3.5mm
Environmental Conditions:
Storage Temperature-60℃ ~+80℃Operational Temperature-10℃ ~+60℃
Relative HumidityMaximum Noncondensing 93%.


Application:

Compatible with keystone jack wall plates.

Compatible with keystone jack surface mount boxes.

Telecommunication or Equipment Room Inter-connect or cross-connect termination.

Configuration

Order Information:

Model No.Product Description
RGP-TSF-301C86x86 Type, Single Port, Faceplate
RGP-TSF-301D86x86 Type, Triple Port, Faceplate
RGP-TSF-301E86x86 Type, Double Port, Angled Faceplate
RGP-TSF-301F86x86 Type, Double Port, Angled Faceplate
RGP-TSF-301LU.S. Standard Faceplate Kit, labeled, 1-gang, 2 port, Electrical Ivory
