Description :

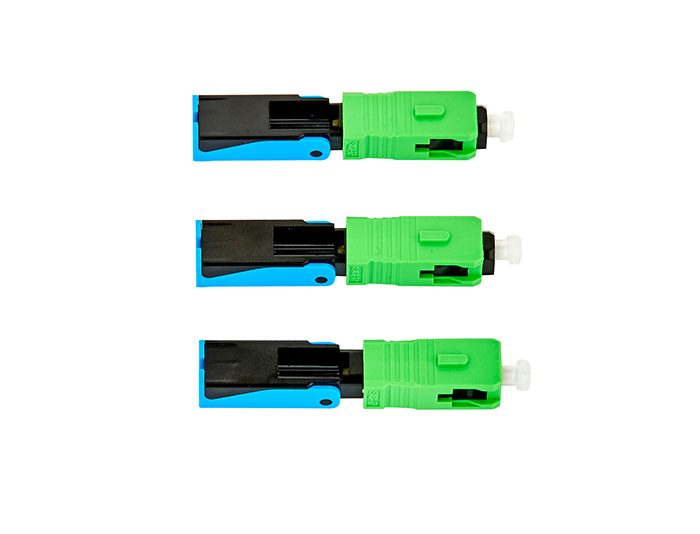

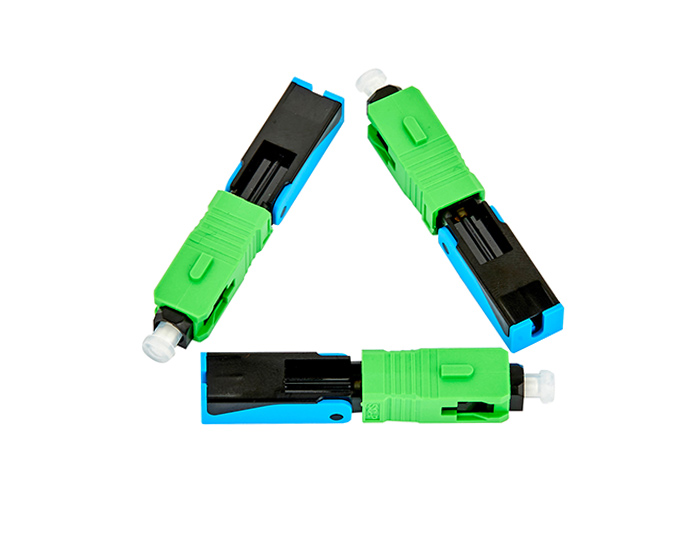

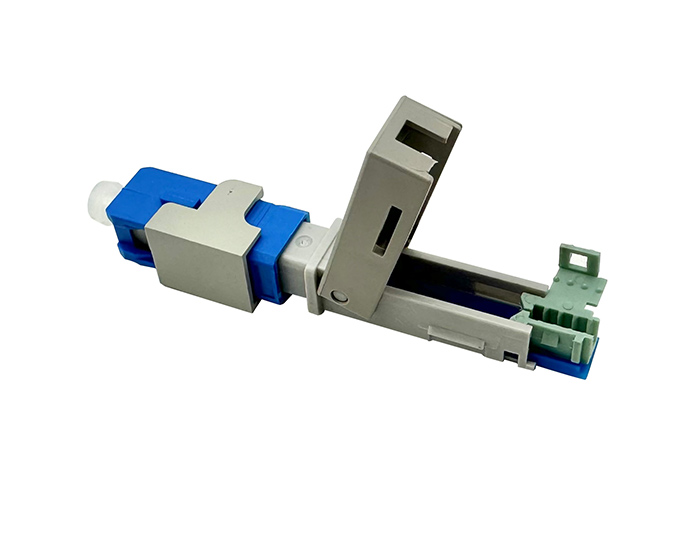

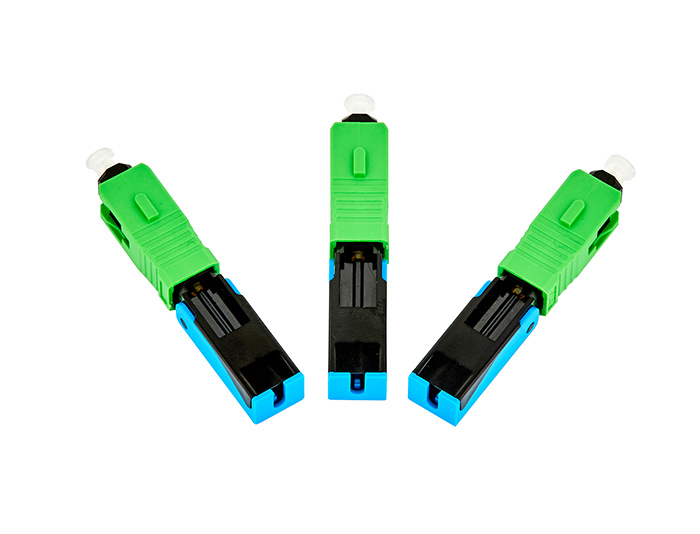

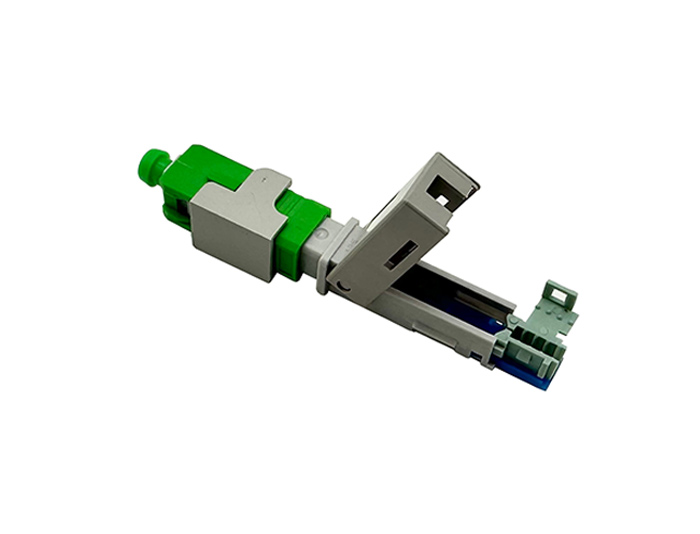

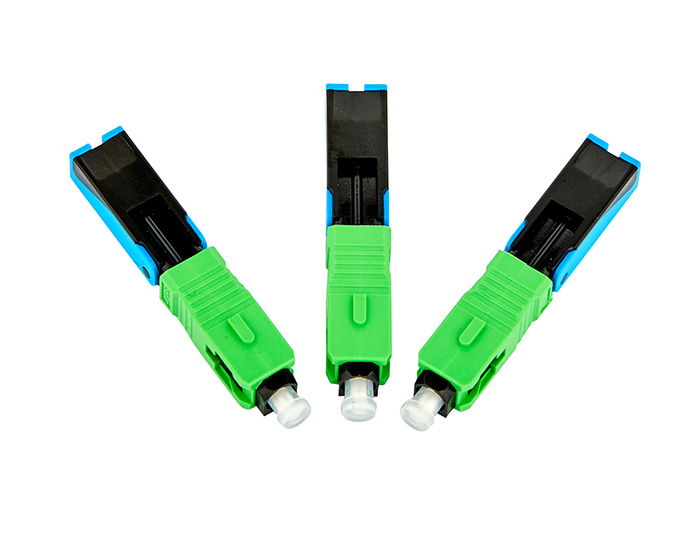

RGP-TSB-405B3 Pre-polished Field Assembly SC/APC Fiber Fast Connector has been factory-polished, eliminating the need for any polishing materials, thereby enabling the preparation and termination of optical fibres in a fraction of the time of other conventional methods. The fiber connector SC APC also uses V-groove mechanical splice principals and therefore the use of an epoxy is not required for the termination of the connector. This Fast Connector Fiber Optik offers convenience in assembling and strong stability. It allows simple optical core connection without any additional practices or adhesives. Fast Connector APC does not require a working space by connecting itself in challenging environments such as a telephone pole and a manhole. It reconnects the cables and reduces the connection defect rate by an installer error in the field.
Our Fast Connector Fiber Optic series are now available in SC, LC, or FC variants, catering for 250um to 900um, and 2.0mm, 3.0mm diameter single mode and multimode fiber types, including Multi-mode 62.5/125um and Multi-mode 50/125um. The single-mode versions are available with UPC or APC ferrules.
Features :
No epoxy and polishing required.
No expensive tools required.
Quick and easy fiber termination.
Precision mechanical alignment insures low insertion loss.
Superior optical performance.
Streamlined component design, convenient operation.
Pre-installed, on-site assembly without end face grinding and consideration.
Uses proven, molded v-groove technologies.
Allow optical continuity to be verified by use of visual fault locator (VFL).
Applications :
Fiber optic communication system and telecommunication networks.
Fiber optic data transmission.
CATV / Optical access network.
Fibre to the Subscriber (FTTx) applications.
Optical cable interconnection.
Maintenance or emergency restoration of fiber networks.
Repair/replacement requirements.
Fiber optic equipment.
