16 Core Fiber Optic Splitter Box with PLC Splitter FDB-016F

Publisher: MJADOM

Author: Andy

RGP-FDB-016F  Fiber Optic Splitter Box called Fiber Splitter Box can load 1x8 or 1x16 LGX Splitter, It's used for connecting optical cable with various equipment in FTTX optical access network node. In FTTH application, it is applied to the second stage splitter point of the optical fiber network.

RGP-FDB-016F Fiber Optic Splitter Box called Fiber Splitter Box can load 1x8 or 1x16 LGX Splitter. In FTTH application, it is applied to the second stage splitter point of the optical fiber network. The optical cable can be connected by fusion or mechanical jointing method after introduction into the box. It is possible to realize cable termination, splitting and distribution function conveniently.


It is an important optical access point in the ODN network, the body of the box is made of PC/ABS alloy material.


Can accommodate 1x16 Insert Splitter Box.

Material : PC/ABS Alloy or Fire-Retardant ABS .

UV and weather proof ; Up to 16 FTTH drops.

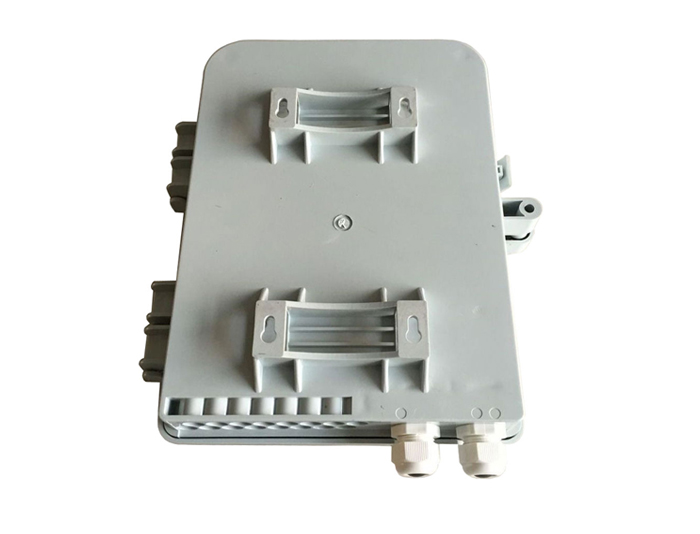

Wall and pole mountable.

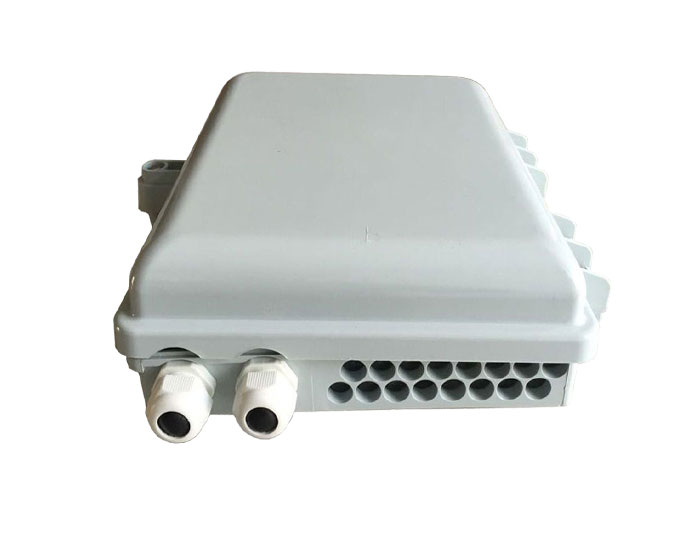

2 inlet ports( for cables with max diameter 14 mm), 16 outlet drop cable ports.

Suitable for used uncut OR cut fiber optic cable.

Optical fiber distribution and splitting box are composed by cabinet body, splicing tray, splitting module and accessories.

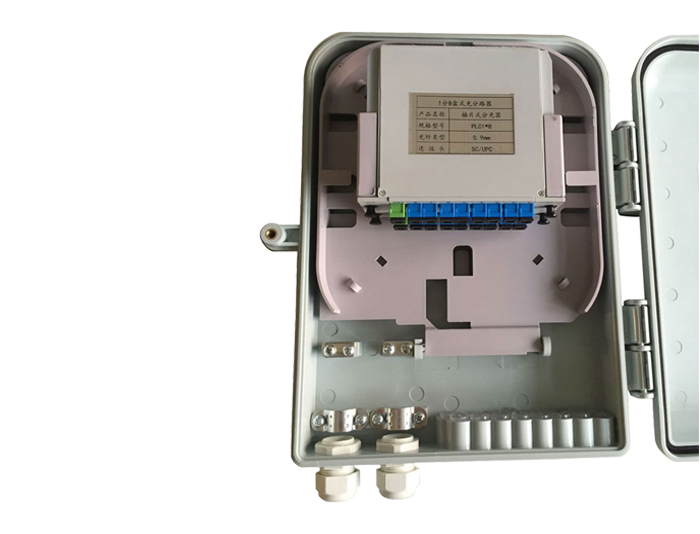

The box has two layers. The outer layer is composed with mounting unit for splitter and cable

management parts. The inner layer is equipped by splicing tray and cable storage unit for pass-through riser cable.



Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.

The mark is clear on each fiber connection and distribution.

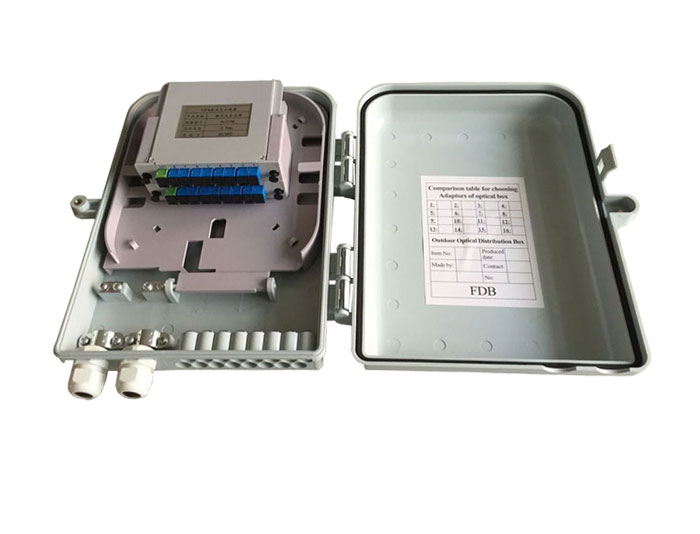

The door opening angle is greater than 180 degree for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP65.

RoHS compliance.


FTTH access network.

Telecommunication Networks.

CATV Networks.

Data communications Networks.

Local Area Networks.

Configuration

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
RGP-FDB-016F

16 Splices,

1*16 PLC Insert Splitter Box

320mmx260mm

x95 mm

10 PCS

2 Inlet Port ( Cut or Uncut Port )

+16 Drop Cable Outlet Ports

15.7 KGS

520mmx320mm

x490mm
