Description:

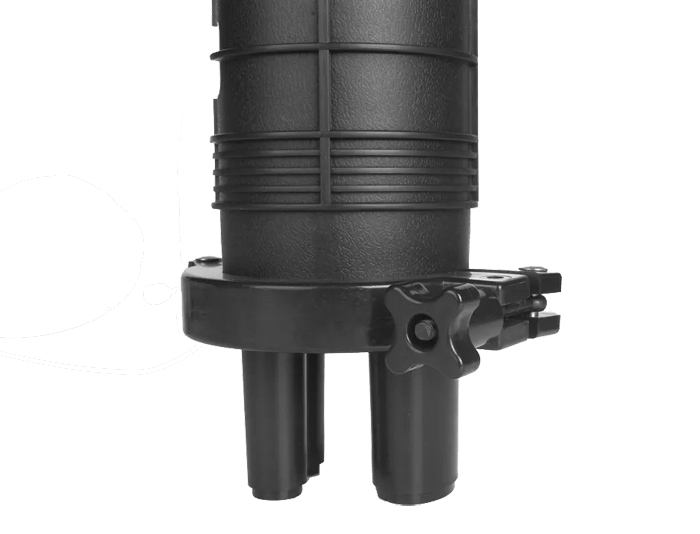

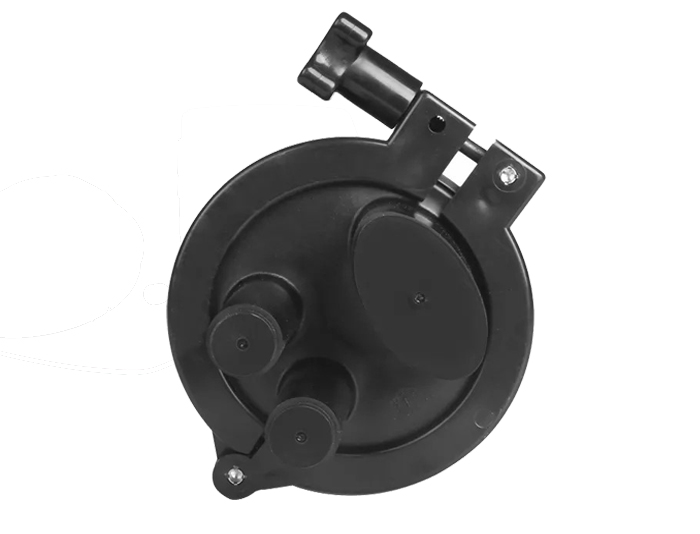

RGP-TSB-202C Dome Outdoor Fiber Splice Enclosure has one oval port for express cable applications and two round cable ports, the fiber splice closure features an O-ring sealing system along with an innovative latching/locking mechanism. This combination is designed to allow simple, watertight closure. Utilizes heat shrinkable tubing technology for fiber optic cable sealing which helps provide a watertight seal.

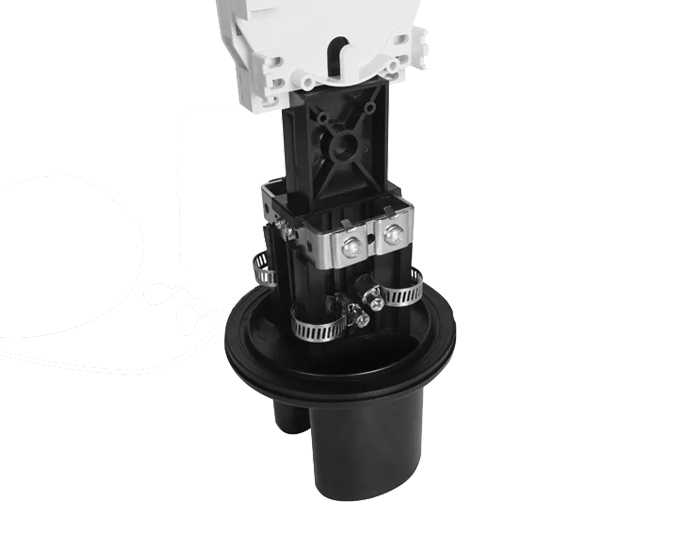

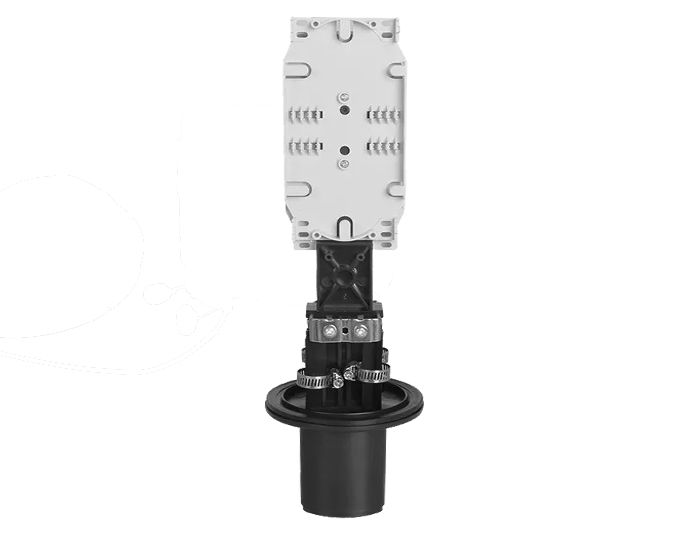

The Fosc is equipped with a built-in fiber management system which provides a separate area for storing, routing, protecting, and "expressing" buffer tubes, singles, and ribbon fibers.
An optional built-in air valve is designed to allow flash testing.
Feature:
Closure Material: Modified P.P.
Closure Seal Material: Innovative latching / locking O-ring closure sealing system.
May be used for all fiber optic cables.
May be used for cut, uncut and taut sheath applications.
Sheath retention & central strength member fasten system included.
Built-in integral multipurpose fiber storage system.
Heat shrinkable cable seal.
Hinged tray design, Splice trays can be easily increased and reduced according to capacity.
Modular splice holder design.
Installation and reentry with a minimum of tools.
Closure can be flash tested.
Protection class: IP68.
RoHS compliance.
Applications :
Aerial mounting, Pole Mounting, Buried, Under-ground, Vault, Handhole & Manhole.
