Description:

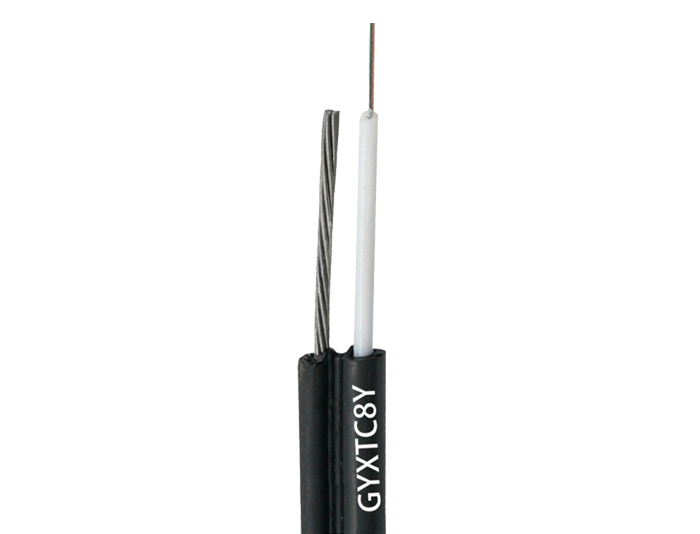

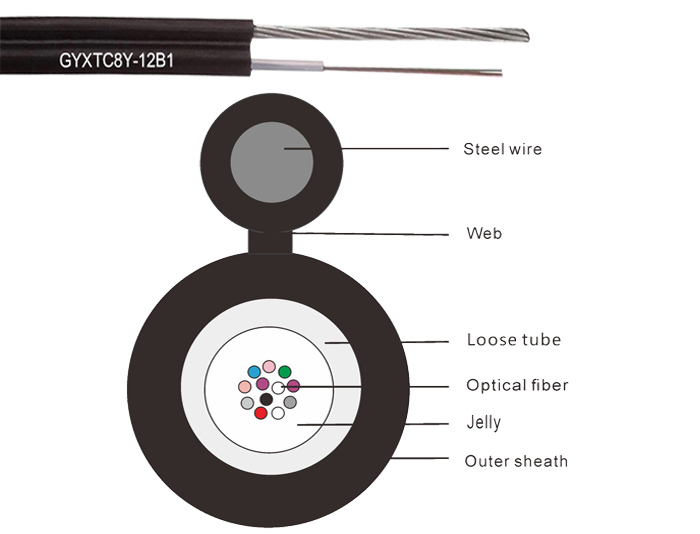

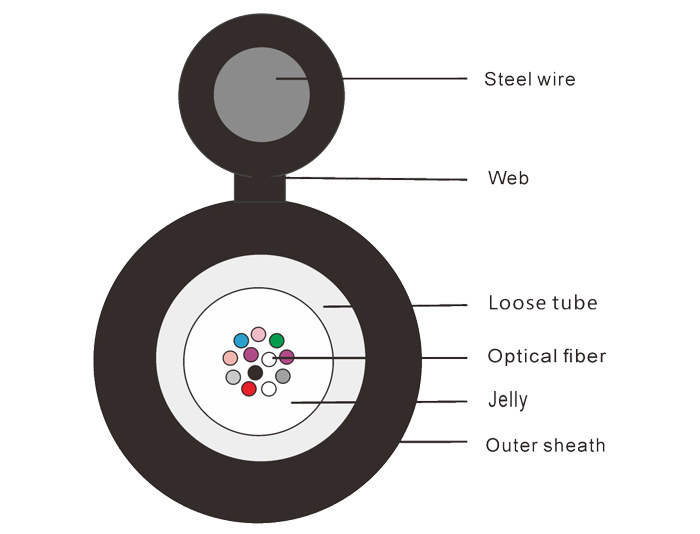

GYXTC8Y, Figure 8 Non-Armored Self-Supporting Central Loose Tube Aerial Optical Fiber Cable. The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The tube is a Central Loose Tube and fill with a water-resistant filling compound. After Aramid Yarns moisture battier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part are completed with a polyethylene (PE) sheath to be figure 8 structure. Finally, Figure 8 Fiber Optic Cable is specially applied for self-supporting aerial installation.
Feature:
Central Loose Tube, Gel-filled.
Fiber Optic Cable Core Up to 12 fibers.
Low loss, low dispersion.
Aerial Fiber Optic Cable.
Good mechanical and temperature performance.
High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost.
Special tube filling compound ensures a critical protection for the fiber.
A specially designed compact structure is good at preventing loose tubes from shrinking.
Crush resistance and flexibility.
Longitudinal wrapped Aramid yarn moisture barrier.
Loose tube filling compound.
Reasonable design, precise residual length control and cabling process make the cable have excellent mechanical and environmental performance.
In accordance with IEC, ITU, and EIA standards.
Application:
Self-supporting Aerial for FTTH Solution.
