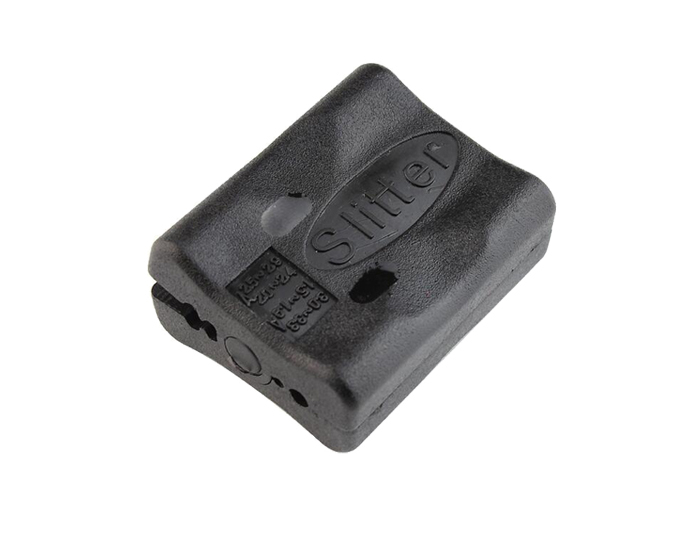

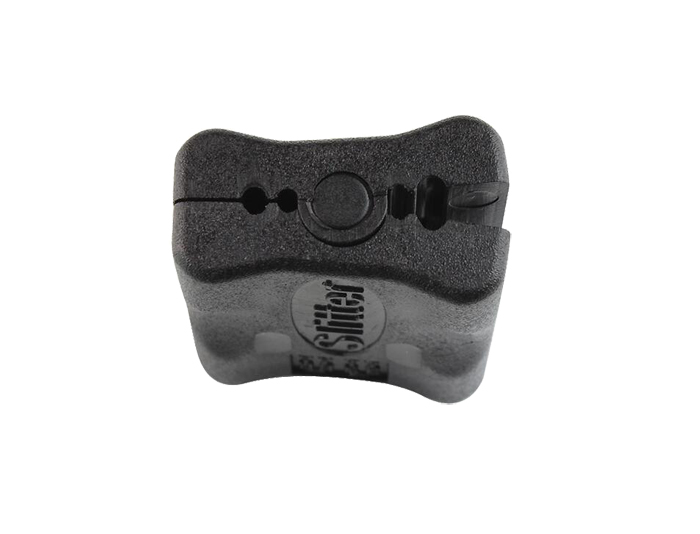

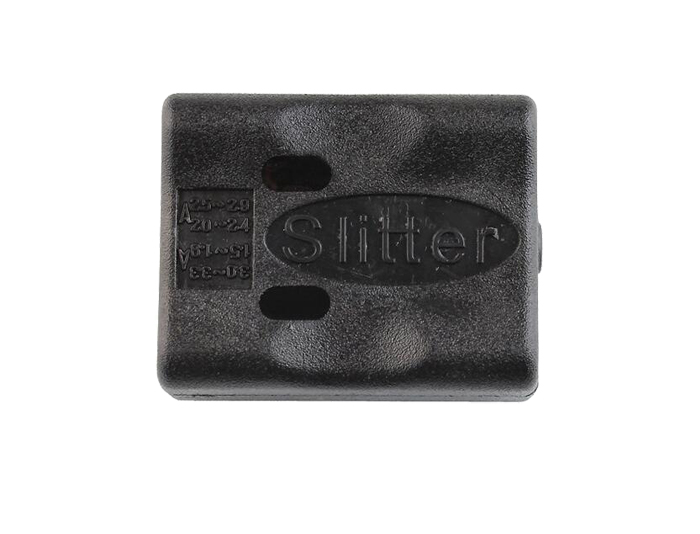

Fiber Cable Mid-Span Access Tool, Fiber Tube Slitter OSA-507C

Description:

Fiber Optic Cable Mid-Span Access Tool also called Fiber Cable Jacket Slitter or Cable Jacket Cutter or Fiber Buffer Tube Slitter, It's an efficient and indispensable tool for fiber optic cable termination, It easily slits the PVC cable jacket into two halves before crimping, in both field and plant applications, time is saved and consistent results with this precise and innovative tool.

The Mid-Span Access tool is designed to allow easy access to the fibers in multiple buffer tube sizes, all with no adjustments or die changes.

Features:

Allows easy mid-span access to optical fibers in loose buffer tubes.

Suitable for stripping of various specifications.

Shaves precise opening to prevent fiber damage.

Sizing channels to easily determine tube size.

The cutter is made of a super special alloy, smooth edge.

The locking mechanism ensures the tool will remain closed through the entire shaving operation.

Tool size(mm):50mmx40mmx20mm; Weight:35g.

Four Cables outer diameter can be processed:

a.(Ø1.5~Ø1.9mm); b.(Ø2.0~Ø2.4mm);

c.(Ø2.5~Ø2.9mm); d.(Ø3.0~Ø3.3mm).

1. Choose appropriate groove according to the diameter of the cable to be slit.

2. Put the cable into the groove, pay attention to the blade's position on the cable with the length to be slit in mind.

3. Close the slitter and hold it firmly with one hand, then pull the cable out with the other hand.

4. Check the processed segment of the cable, there should be two rips on the jacket which completely separate the jacket into two halves.

Product Specification:

Application:

FTTH access network.

Telecommunication Networks.

CATV Networks.

Data communications Networks.

Local Area Networks.
