Description:

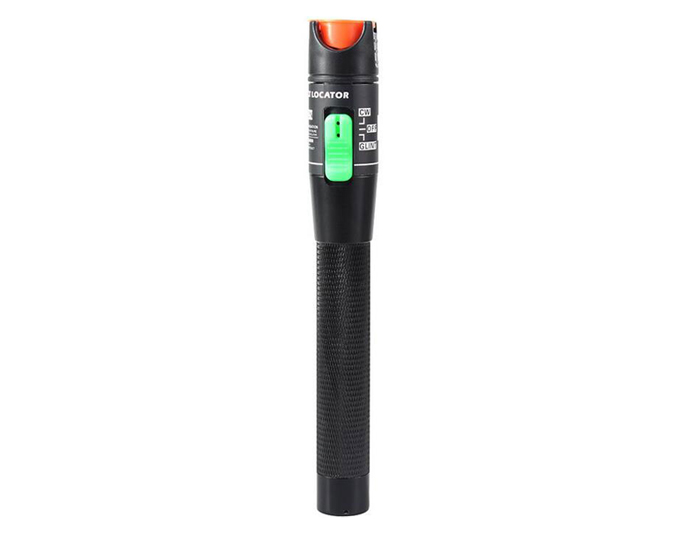

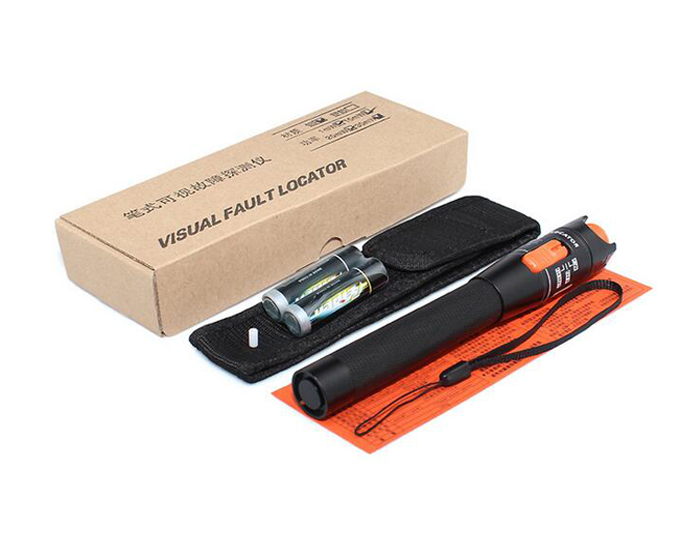

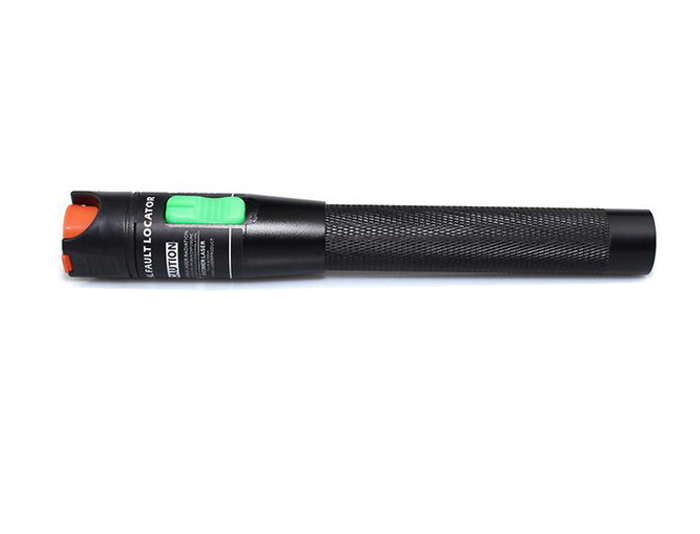

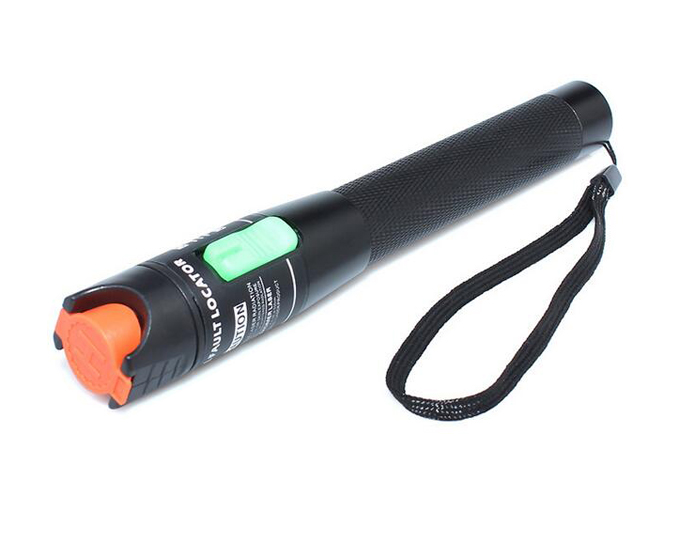

Pen Shape Visual Fault Locator is a compact but powerful fiber optical cable test tool, with output power up to 30mW, which can be used to locate sharp bends & breaks in the jacket or bare fiber within 5km. It can also be applied to identify the connectors in patch panels and identify the fibers during the splicing operation. The choice of a continuous wave output mode for steady fault illumination or a flashing output mode makes for easier fault location.
Fiber Visual Fault Locator, also called laser fault locator, is a device that is able to locate the breakpoint, bending, or cracking of the fiber optic.
Features:
LD light source.
CW & MOD work mode.
FC, SC, ST universal connector, Test for both single-mode and multi-mode cables.
Stable output frequency.
Long-distance detect.
Strong & durable casing.
Pen-type design, portable, and easy to use.
Crash-proof and Dust-proof Design for Head: It is designed with stainless steel head to prevent crash and dust, and the case ground design prevents ESD damage efficiently.
Replaceable Ceramic core Design, prolong the lifetime of this Visual Fault Locator. And there is 1pcs extra Ceramic Sleeve as a free replacement.
Easy and Accurate Identification: It can easily and accurately detect and locate fiber breaks, poor connections, bending, or cracking.
Product Specifications:
| Wavelength | 650nm±10nm | Output Power | 1mW/5mW/10mW/20mW/30mW |
| Dynamic Distance | <5km | Housing Material | Metal |
| Connector | 2.5mm Universal connector (FC/SC/ST) | Operation Mode | Pulsed (2Hz) and CW |
| Operation Temperature | 0℃~+60℃ | Storage Temperature | -20℃~+70℃ |
| Dimensions | 175mmx26mmx26mm | Weight | 75g |
| Battery Type | 2xAA | Battery Life | ≥ 18 hours |
Applications:
Optic fiber communication and maintenance.
Security system optic fiber transmitter setup and maintenance.
Optic fiber CATV system and maintenance.
Optic fiber sensing research.
Optical devices manufacture and research.
