Description :

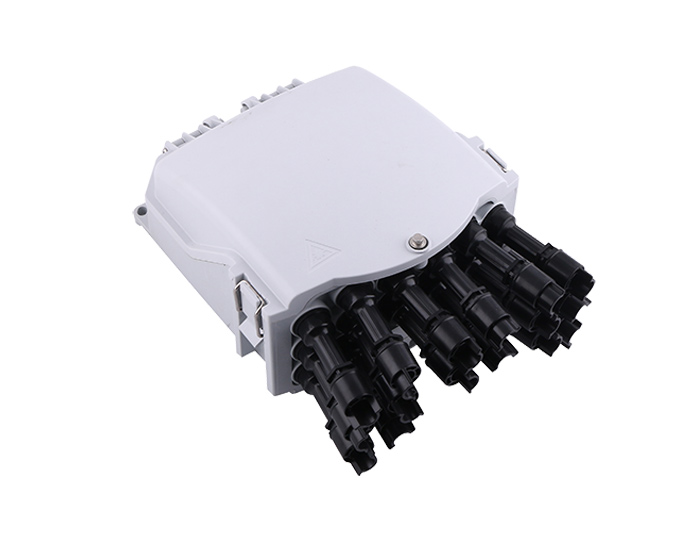

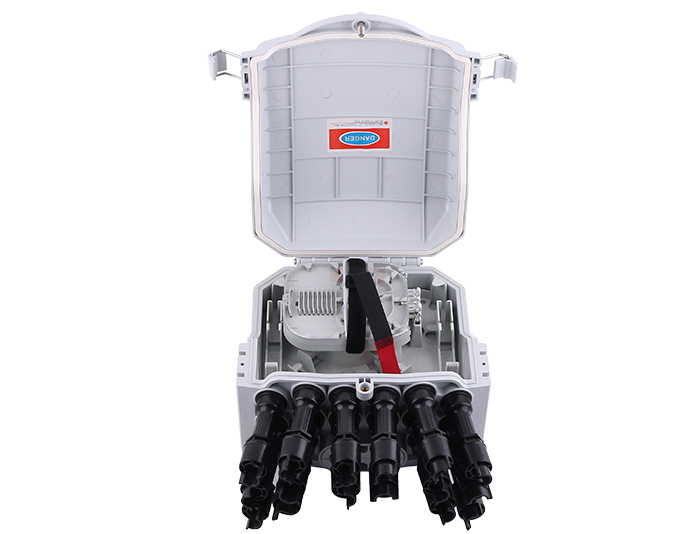

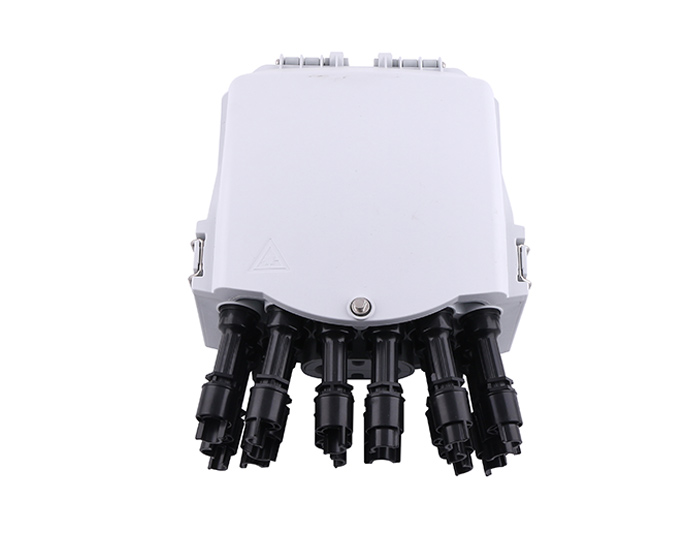

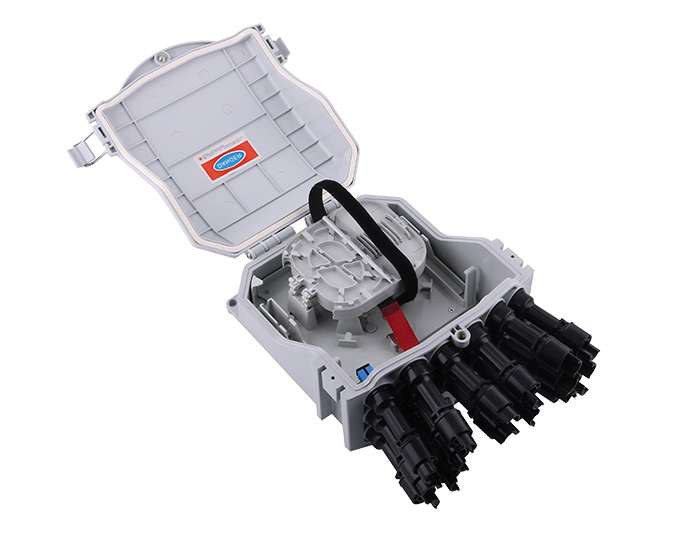

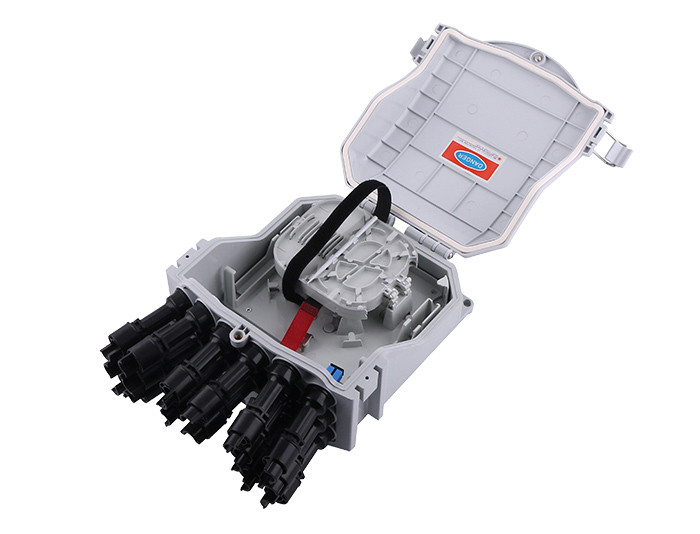

RGP-F2E-508D Fiber Access Termination Box fiber access terminal is able to hold up to 16 subscribers. The Optical Network Terminal is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. Available for 2 trays and maximum 16F splice capacity. The Fiber Access Terminal Box integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box, and meanwhile it provides solid protection and management for the FTTx network building.
Feature:
Fully enclosed structure.
Material: PC+ABS, waterproof, dustproof, anti-aging design, IP-65 protection level for outdoor.
Integrated with 2 x splice trays，splice tray can be flipped up, and maximum 16F splice capacity.
Fiber bend radius control more than 40mm.
1 x mid-span cable entrance for uncut cable with maximum diameter 12mm.
1x8 PLC splitter can be installed in each splice tray.
16pcs of Pre-Connector reinforced water-proof adapters for SC.
Cable, pigtails, and patch cords are running through their own paths without disturbing each other, Easy for maintenance and expansion.
Protection Level: IP65.
Applications:
Aerial mounting & Pole mounting.
