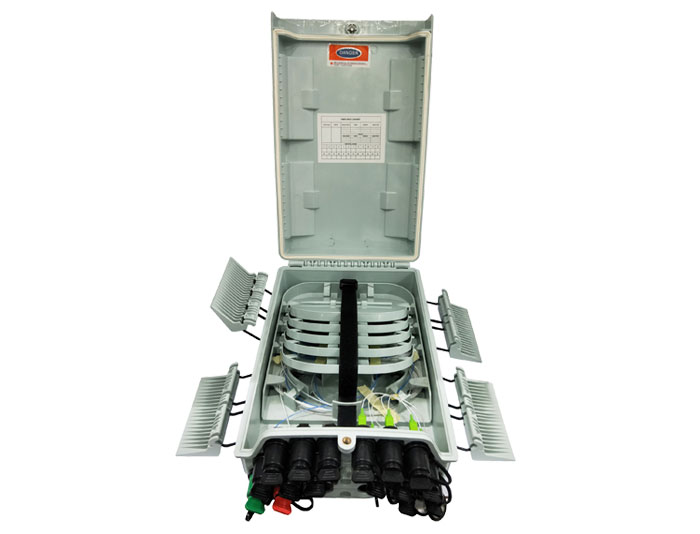

RGP-F2E-601-16E Fiber Access Terminal also called fiber access & Terminal Box Fiber Optic is able to hold up to 16 pcs of Huawei Pre-installed reinforced water-proof adapters for SC. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box, and meanwhile, it provides solid protection and management for the FTTx network building.
Fully enclosed structure.
Material: PC+ABS, waterproof, dustproof, anti-aging design, IP-65 protection level for outdoor.

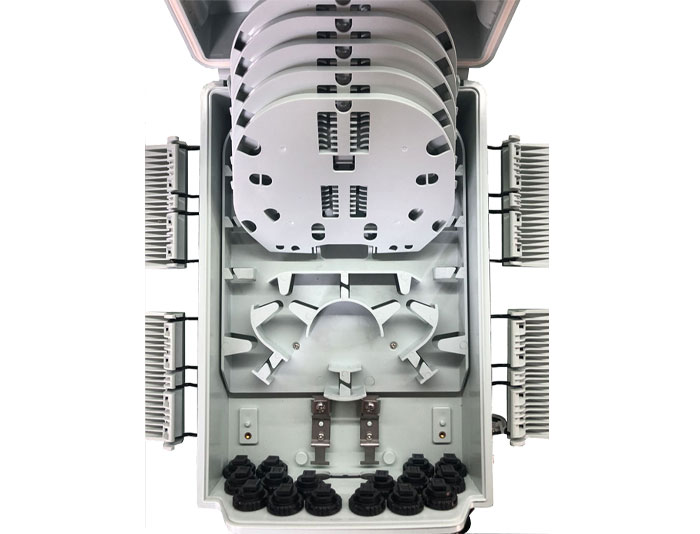

Integrated with 2 x splice trays，splice tray can be flipped up, and maximum 32F splice capacity.
Fiber bend radius control more than 40mm.
1 x mid-span cable entrance for uncut cable with maximum diameter 12mm .
Maximum 120F splice capacity, stainless anti-rust bolts and nuts.
Plug-and-play installation, easy for maintenance and expansion.
1x8 PLC splitter can be installed in each splice tray.
16pcs of pre-installed reinforced water-proof adapters for SC.
Cable, pigtails, and patch cords are running through their own paths without disturbing each other, Easy for maintenance and expansion.
1 mid-span cable entrance(10-16.5mm) for uncut cable and 2 reserved cable entrances for distribution cable gland(8-13.5mm).
Specification:
Environmental requirement
Working temperature：-40℃～+85℃.
Relative humidity：≤85% (+30℃).
Atmospheric pressure：70KPa～106Kpa.
Main technical:
Insertion loss：≤0.15dB.
UPC return loss：≥50dB.
APC return loss：≥60dB.
Wall-mounted installation
Pole mounted installation
Aerial hanging installation
Suitable for pre-connectorized drop cable with reinforced connector.
