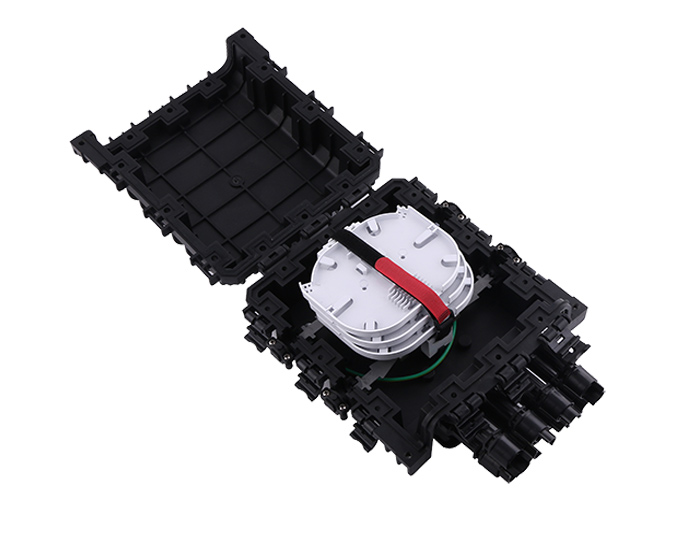

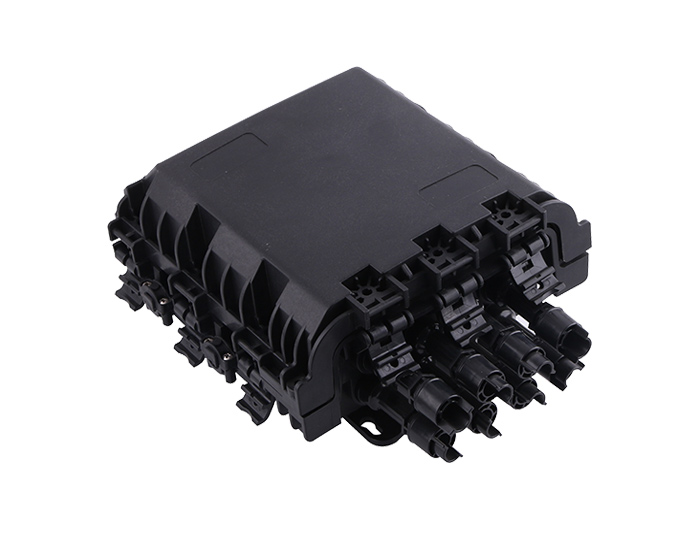

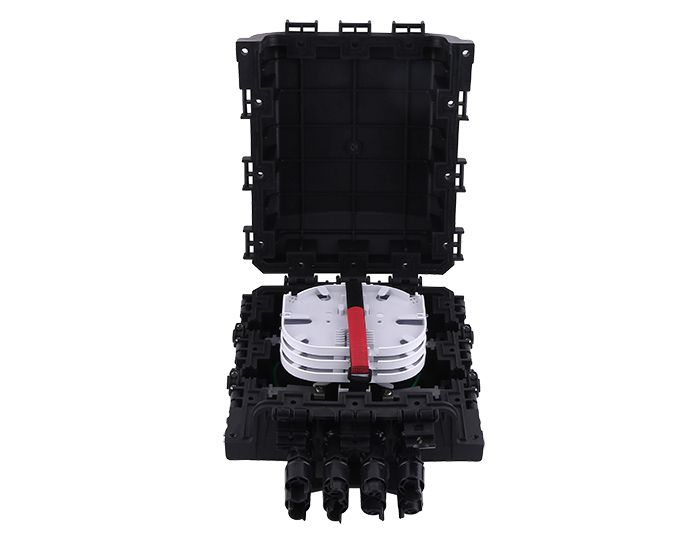

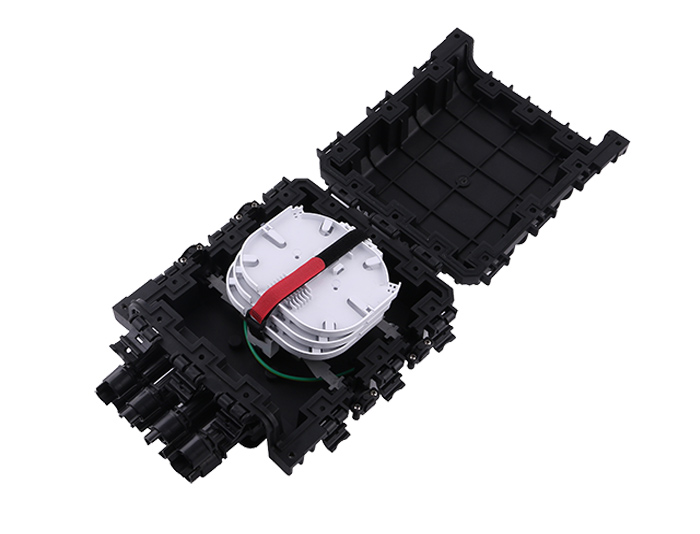

RGP-F2E-508A 8 Core FTTH Fiber Termination Box also called FTTH Terminal Box is designed to protect joints of optical cable can hold up to 8 subscribers. It is used as a termination point for the feeder cable to connect with drop cable in the FTTx communication network system. Available for 3 trays and each tray can splice 24 fibers.
It integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection box, and meanwhile, it provides solid protection and management for the FTTx network building.
Fully enclosed structure.
Material: Modified PP, with anti-UV, and corrosion resistance material, waterproof, dustproof, anti-aging design, IP-65 protection level for outdoor.
Integrated with 3 x splice trays，splice tray can be flipped up, and maximum 72F splice capacity.
Fiber bend radius control more than 30mm.
Support Cut & Uncut optical fiber.
Fully mechanical sealing. Easy installation and reentry. No other sealing adhesive tape is needed.
Base and cover sealed with clamp and O-ring system. Cable entry ports sealed with rubber.

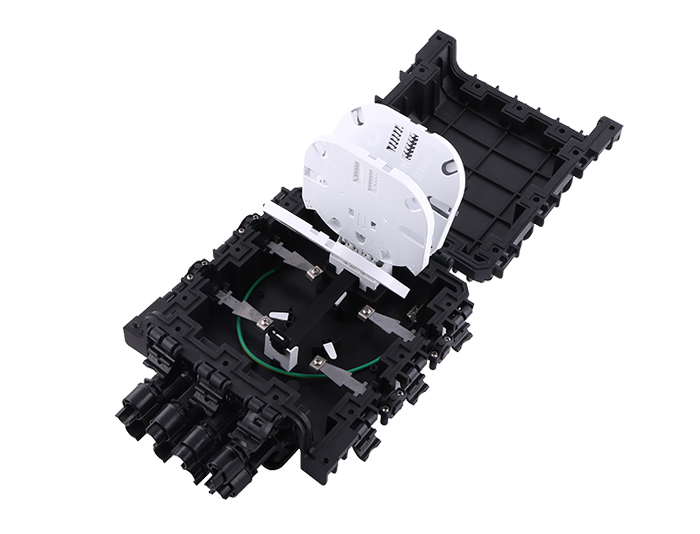

The splice trays are hinged for access to any splice tray, without disturbing other trays.
The inner parts and fixing parts are made of stainless steel
With an earthing device protect it from damage by lightning
1x8 PLC splitter can be installed in each splice tray.
8 pcs of pre-installed reinforced water-proof adapters for SC.
Cable, pigtails, and patch cords are running through their own paths without disturbing each other, Easy for maintenance and expansion.
Wall mounted installation
Pole mounted installation
Aerial hanging installation
Manhole installation
Direct buried
