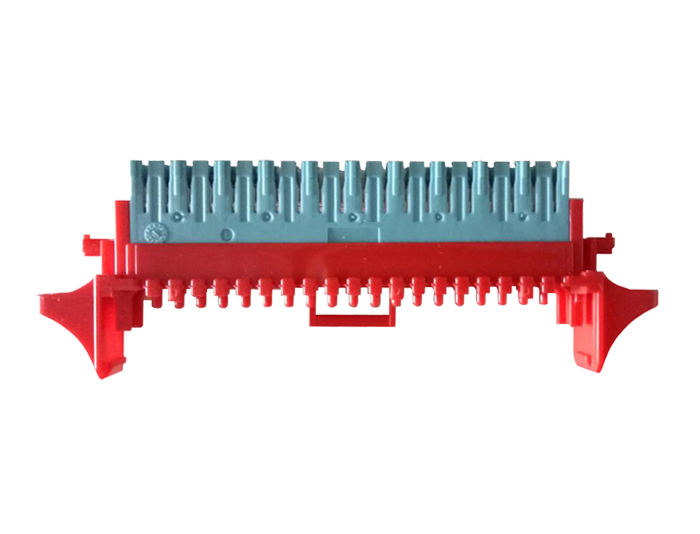

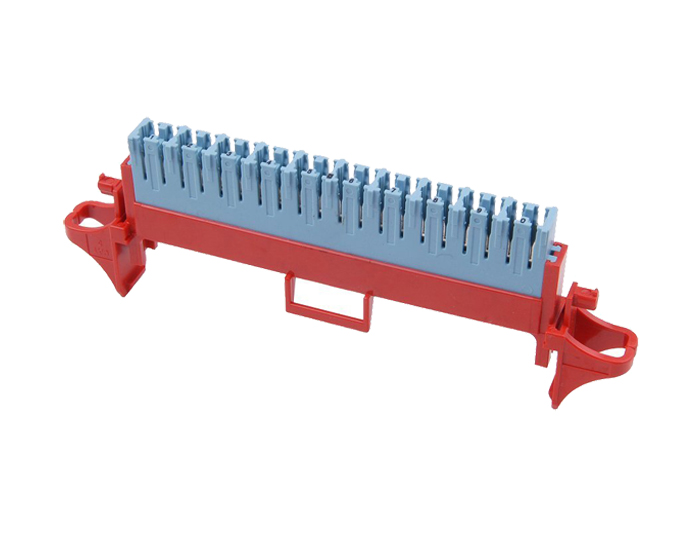

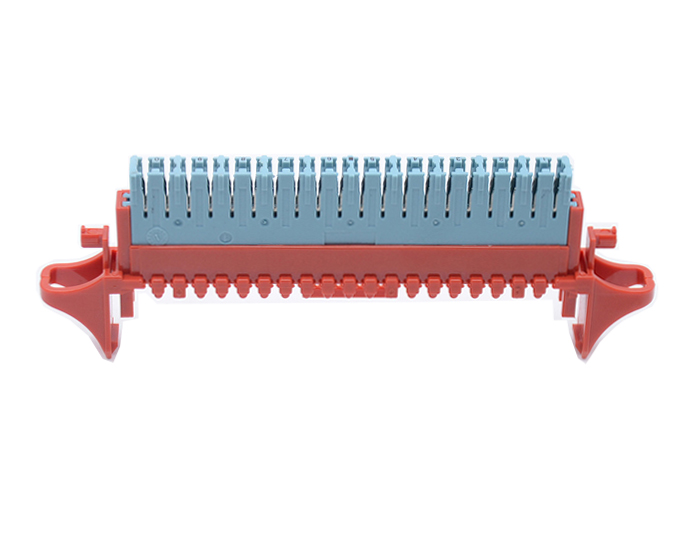

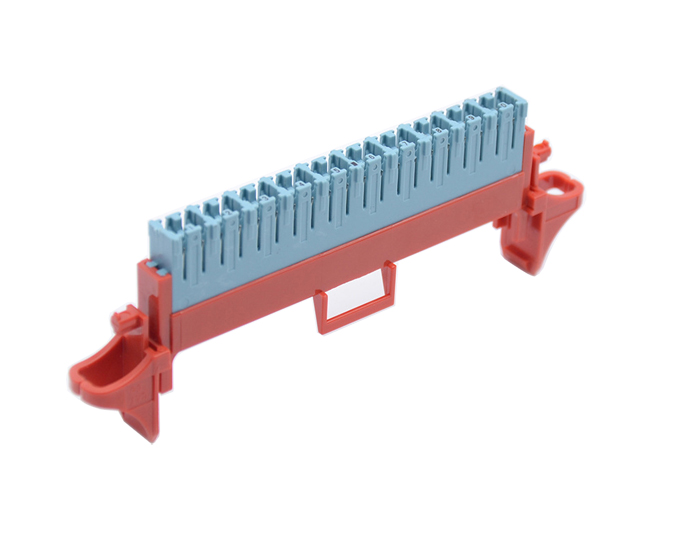

10 Pair STG Disconnection Module TSF-101G1

Publisher: MJADOM

Author: Andy

10 Pair High-Density STG Disconnection Module is the latest evolution of the STG range if IDC (Insulation Displacement Contact) connection module

Description:

10 Pair High-Density STG Disconnection Module are the lastest evolution of the STG range if IDC (Insulation Displacement Contact) connection module that can be snapped onto 3M standard back mount frame(8/10 pair, 16 or 14mm)pitch profile is available upon request, pouyet 3M module offers Cat. 5 transmission performance as a standard. As a result, this module can be used in any modern network and is fully compatible with various applications.



STG Cat5 Module & Punch Down Tool can be used in any modern network and is fully compatible with a variety of applications (xDSL, etc.). Termination is easy and cable jumpers can be managed from the rear or from the side.



MJADOM offers a full range of Krone LSA-PLUS Disconnection Module & Connection Module & Highband Module & STG Module & Back Mount Frame and Gas Discharge Tube Protective Unit.


Features:

Transmission performances meet Cat. 5 (100 MHz).

Specific contacts for stranded wires upon request, Multiple retermination with all kinds of conductor gauges in the 0,8 to 0,4mm (20 to 26 AWG) range.

Very compact mounting pitch of 0.63 in./16 mm, vertical space between block rows.

Specific disconnection area for testing, monitoring, disconnection, or adding protection to each line.

Integrated front mounts forward surge protection.

Non-protruding contacts offer good protection and a long life cycle. May prevent accidental contact or disconnection.

Can be used in applications where density is required (overcrowded MDFs, confined spaces of remote terminals or telecom closets in MDUs).

The comprehensive range of protection circuits and accessories, Improved wire retention (in all directions).


Product Details:

 TypeRGP-TSF-101G1Style10 Pair High-Density STG Disconnection Module
Transmission and reliabilityExceeds Cat.5 (100 Mhz)Dimensions (HxWxD)

5.7"x1.96"x0.55

"(Size: 146x50x14mm);

Insulation resistance> 1x1010 ΩContact resistance< 10 mΩ
Dielectric strength3000 V rms, 60 Hz ACHigh voltage surge3000 V DC surge
Transmission
 Insertion loss

< 0.01 dB to 2.2 MHz.

< 0.02 dB to 12 MHz.

< 0.03 dB to 30 MHz.

 Return loss

> 50 dB to 2.2 MHz.

> 38 dB to 12 MHz.

> 30 dB to 30 MHz.

 Crosstalk

> 73 dB to 2.2 MHz.

> 60 dB to 12 MHz.

> 53 dB to 30 MHz.

 Wire range IDC contacts

0.4 mm to 0.8 mm.

26 AWG to 20 AWG.

T-connection / double jumpering possible with different wire gauges

 MaterialHousing: Thermoplastic, UL 94 V-0 materials usedContact: Bronze, tin (Sn) plating. Capacity 5/8/10 Pair


Application:

Main distribution frames of exchanges.

In cross-connection cabinets and terminating boxes.

In building entrance distributors.

In-floor distributors or in PABXs for voice and data distribution.

STG Modules are suitable for public telephony (MDF, cross-connection cabinets, building distribution) as well as for private telephony and high data rates transmission.


Configuration

Order Info:

  Item No. Product Description
RGP-TSF-101G110 Pair High-Density STG Disconnection Module
RGP-TSF-101G210 Pair High-Density STG Connection Module
RGP-TSF-101G310 Pair Tool-less Connection Module / Quick Connect System (QCS)
RGP-TSF-101G4Blue Picabond Connector
