Blue AMP Picabond Connector TSF-101G4

Publisher: MJADOM

Author: Andy

RGP-TSF-101G4 Picabond Connectors provide an economical and reliable Method for splicing multi-conductor telephone cables.

Description:

RGP-TSF-101G4 Picabond Connectors provide an economical and reliable Method for splicing multi-conductor telephone cables, Picabond Connector is made up of the tin-plated phosphor bronze with bonded polyester insulation. Colour coding of the insulation is provided to denote the wire size and weather-resistant type. The picabond connectors fixed the solid core wire by picabond crimp tool, can meet the wire from 28 AWG to 19 AWG (0.32–0.90 mm), with pulp, paper or plastic insulation can be spliced.



101G4 picabond connector splices reduce the space required over other splicing techniques by up to 33%. Straight, butt, tap, and bridge splices can be made with these connectors.



MJADOM offers a full range of STG Module & Back Mount Frame & Gel-filled Quick Connect System (QCS) 2810 and picabond connector and picabond crimp tool.


Features:

No pre-stripping or cutting required; fast and easy installation; No pre-stripping or cutting required; fast and easy installation

Lightweight, compact, and economical means of splicing multi-conductor telephone cable

Color-coded to indicate size and type of wire; used for butt, straight, bridge, and half-tap applications

Lower applied cost, minimum, economical.

Can meet the wire from 28 AWG to 19 AWG (0.32–0.90mm).


Product Details:

TypeRGP-TSF-101G4Style Blue AMP Picabond Connector
BaseTin-plated BrassWire diameter 0.32mm-0.9mm

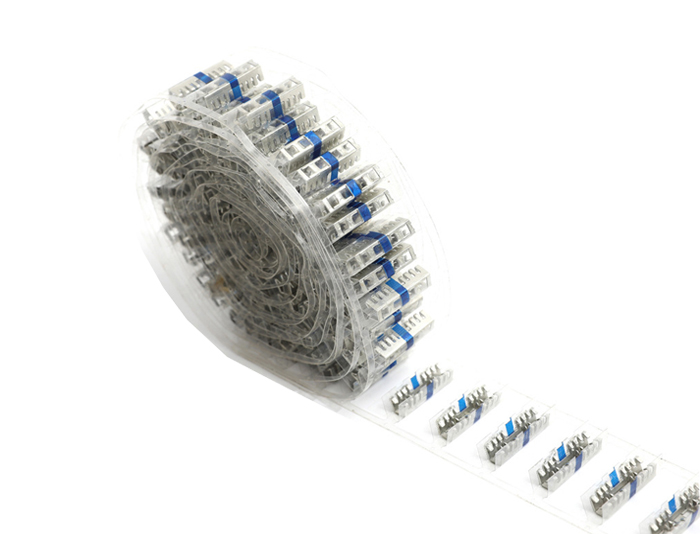

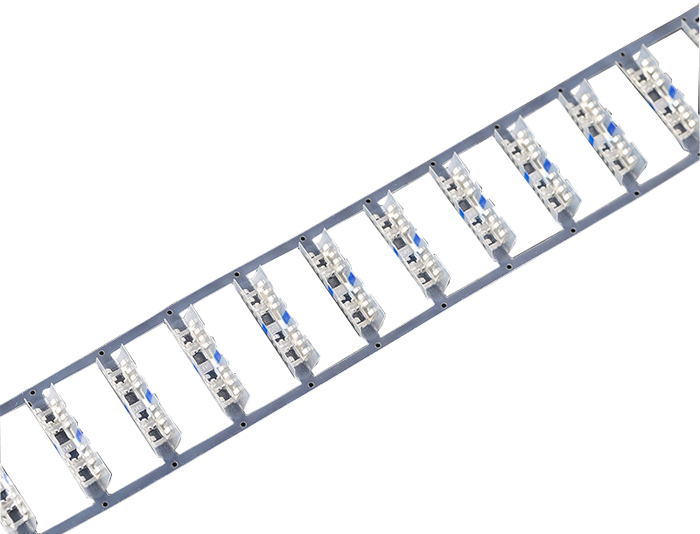

ColorBlue/Purple /Red/Yellow/GreenPacking1000 pcs/box or roll


Application:

Splicing.

Central Office.

Manhole.

Aerial Pole.

CEV.

Pedestal.

Demarcation Points.


Configuration

Order Info:

  Item No. Product Description
RGP-TSF-101G110 Pair High-Density STG Disconnection Module
RGP-TSF-101G210 Pair High-Density STG Connection Module
RGP-TSF-101G310 Pair Tool-less Connection Module / Quick Connect System (QCS)
RGP-TSF-101G4                        Blue AMP Picabond Connector
