Description:

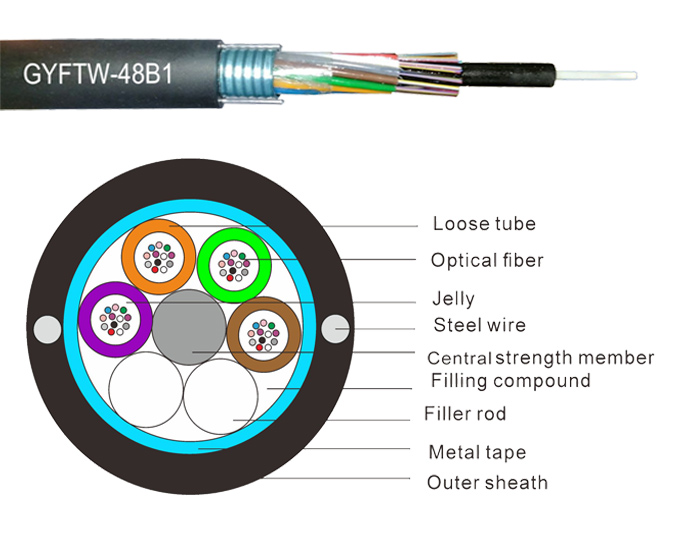

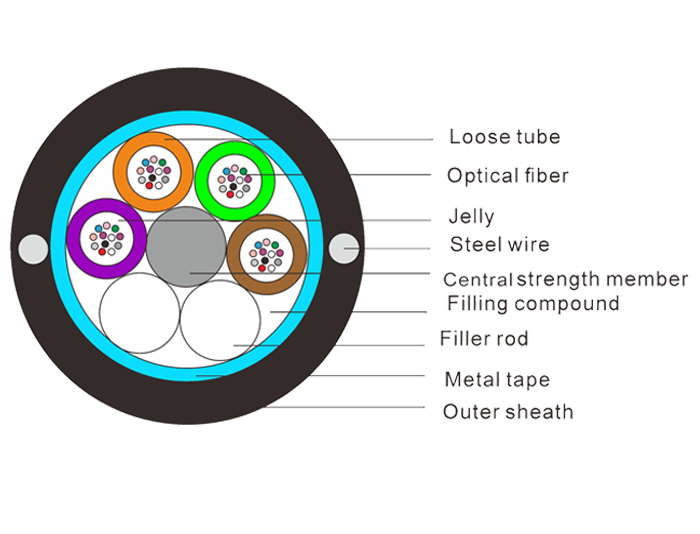

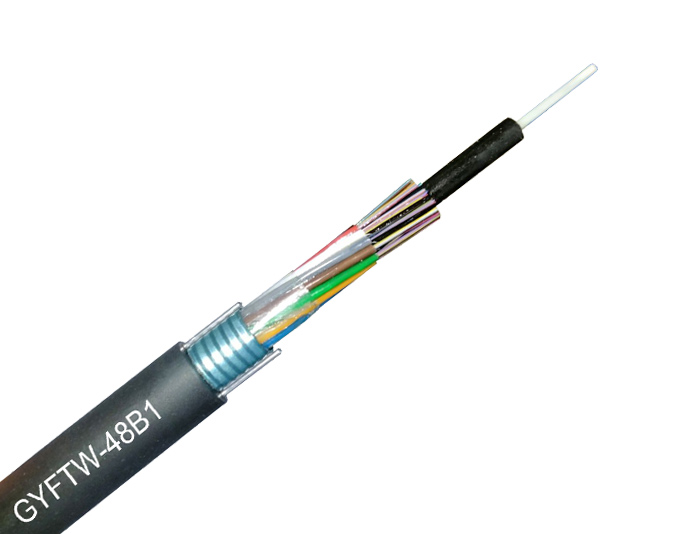

GYFTW, which is stranded loose tube light armored outdoor fiber cable. Single Mode Optical Fiber, 250μm, are positioned into a loose tube made of high modulus plastic. The tubes are filled with water-resistant filling compound. The tube is wrapped with a layer of Corrugated steel tape (PSP) longitudinally. Between the PSP and the loose tube water blocking material is applied to keep the cable compact and watertight. Two parallel steel wire are placed at the two side of the steel tape. The parallel steel wires are placed at the two sides tape, to ensure tensile strength. The aerial optical fibre cable is completed with a single polyethylene (PE) sheath.
Feature:
Stranded loose tube (up to 144 fibers), Gel-filled.
G652D, Low loss, low dispersion.
Good mechanical and temperature performance.
High-strength loose tube that is hydrolysis resistant.
Special tube filling compound ensures a critical protection for the fiber.
Corrugated steel tape enhancing moisture-proof.
Two parallel steel wires ensure tensile strength.
Crush resistance and flexibility.
PE sheath protects the cable from UV radiation.
Loose tube filling compound.
100% cable core filling compound.
Reasonable design, precise residual length control and cabling process make the cable have excellent mechanical and environmental performance.
Small diameter, Light weight and easy installation.
In accordance with IEC, ITU, and EIA standards.
Application:
Duct and Non-Self-supporting Aerial.
