Description:

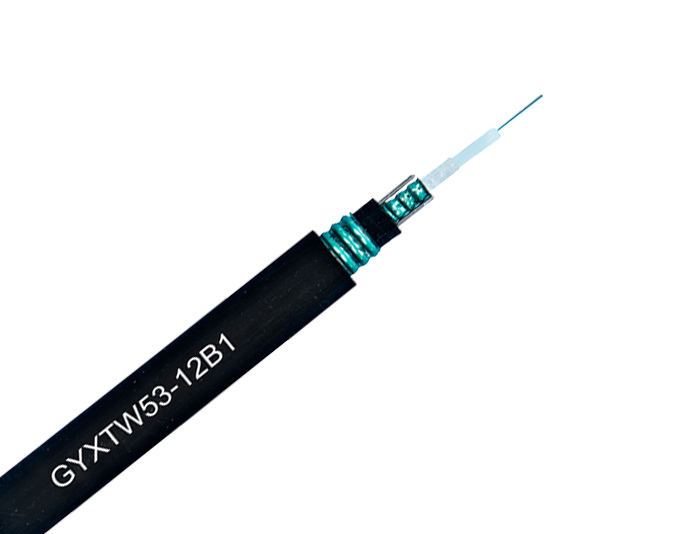

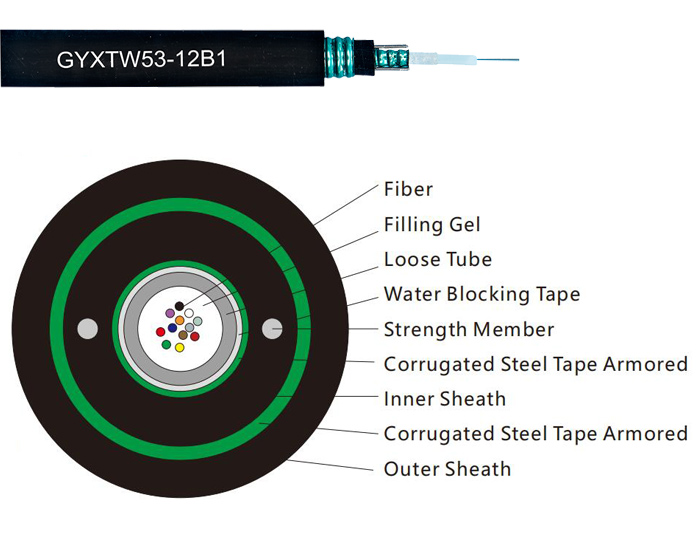

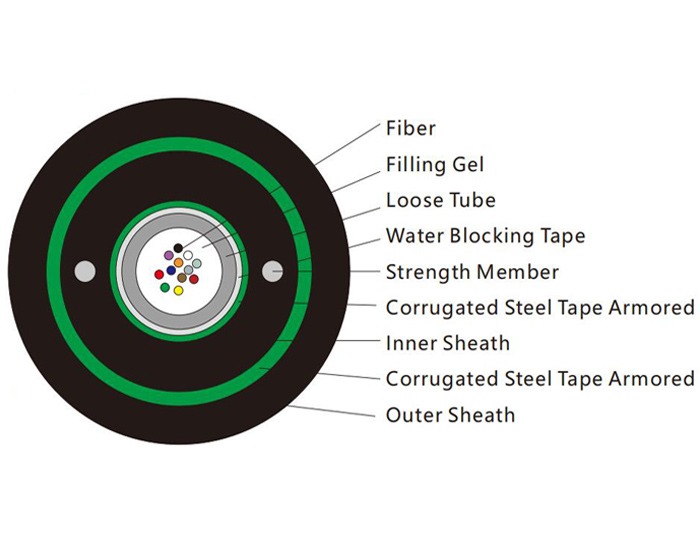

GYXTW53, Central Loose Tube Double Armored Underground Cable With Dual-Jacket is Direct Buried Fiber Optic Cables. The fibers, 250um, are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of Corrugated Steel Tape (PSP) longitudinally. Between the PSP and the loose tube water blocking material is applied to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. Then, the cable core is covered with a thin PE inner sheath. After the second layer of Corrugated Steel Tape (PSP) is longitudinally applied over the inner sheath. Finally, the underground cable duct is completed with a PE outer sheath.
Feature:
Central loose tube (up to 24 fibers), Gel-filled.
G652D, Low loss, low dispersion.
Good mechanical and temperature performance.
High-strength loose tube that is hydrolysis resistant.
Special tube filling compound ensures a critical protection for the fiber.
A specially designed compact structure is good at preventing loose tubes from shrinking.
Crush resistance and flexibility.
Inner PE Sheath & Outer PE Sheath.
Double Corrugated steel tape & Corrugated steel tape moisture barrier.
Loose tube filling compound.
100% cable core filling compound.
Reasonable design, precise residual length control and cabling process make the cable have excellent mechanical and environmental performance.
In accordance with IEC, ITU, and EIA fiber cable standards.
Application:
Outdoor Direct Buried.
