12 Core Fibre Optic Distribution Box - Optical Terminal Box FDB-012B

Publisher: MJADOM

Author: Andy

RGP-FDB-012B Fibre Optic Distribution Box is designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.


The New design box easy to pre-install the cable, PLC Splitter, and fiber adapter, save time and energy.

RGP-FDB-012B Fibre Optic Distribution Box is designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.


The New design box easy to pre-install the cable, PLC Splitter, and fiber adapter, save time and energy.


The range includes strain relief systems for main cables or for customer drops suitable for multiple applications: aerial, residential, building basement, building riser. The distribution boxes may house fusion splices, mechanical splices or splitters.

Can accommodate 1x12 SC/ LC Duplex Adaptor.

Material : PC/ABS Alloy or Fire-Retardant ABS .

UV and weather proof ; Up to 12 FTTH drops.

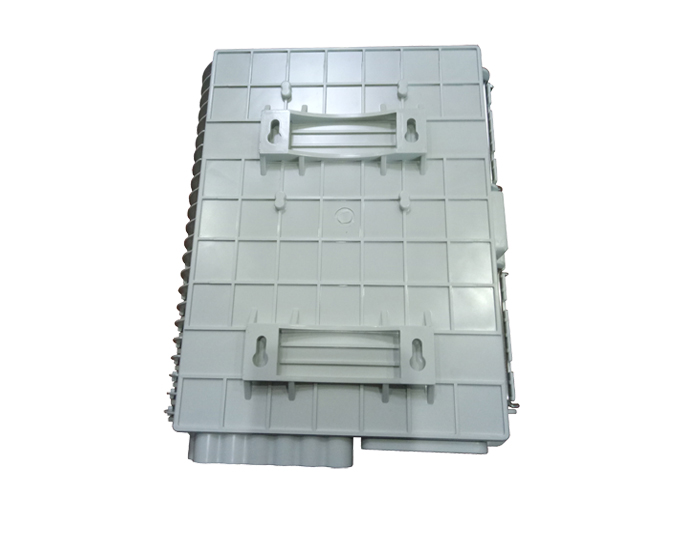

Wall and pole mountable.

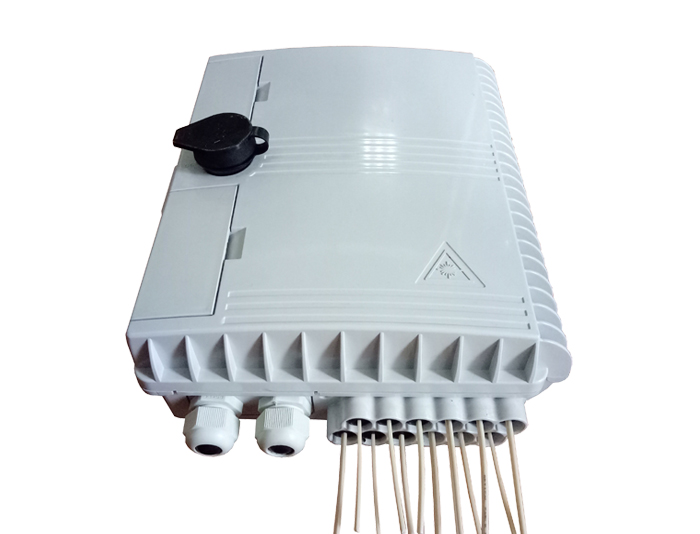

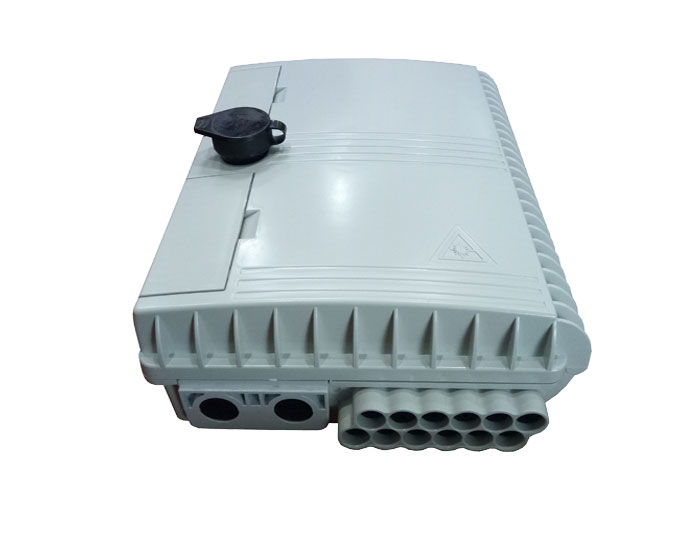

2 inlet ports( for cables with max diameter 14 mm), 12 outlet drop cable ports.

Suitable for used uncut OR cut fiber optic cable.

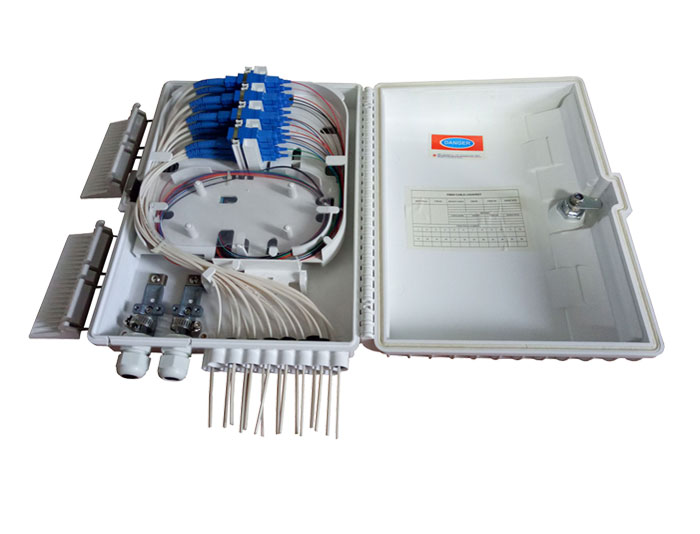

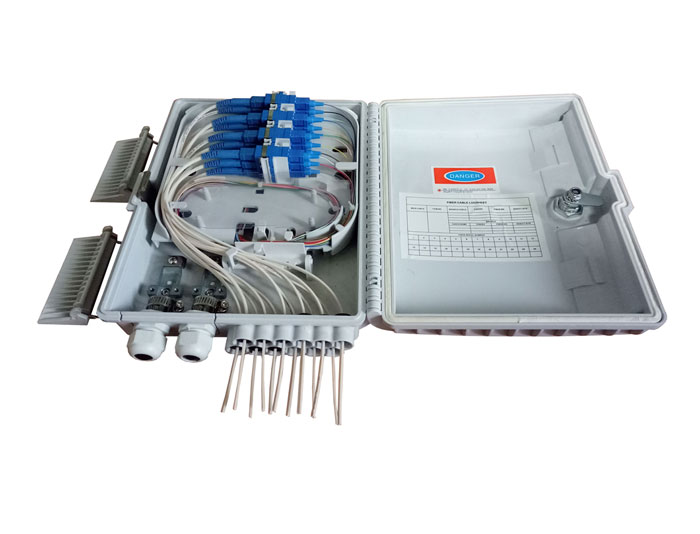

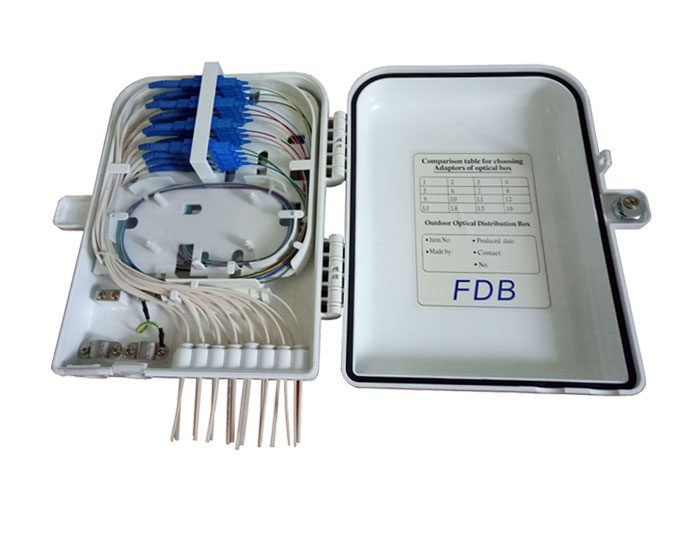

Turn-over structure, layout is reasonable with splicing zone below and distribution zone above.



Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.

The mark is clear on each fiber connection and distribution.

The door opening angle is greater than 180 degree for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP65

RoHS compliance

FTTH access network.

Telecommunication Networks.

CATV Networks.

Data communications Networks.

Local Area Networks.

Configuration

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
RGP-FDB-012B

12 Splices,

12 SC/LC Duplex adaptors

or 1x8 PLC Splitter

250mmx200mm

x72 mm

20 PCS

2 Inlet Port ( Cut or Uncut Port )

+12 Drop Cable Outlet Ports

12.7 KGS

510mmx410mm

x400mm
