Description :

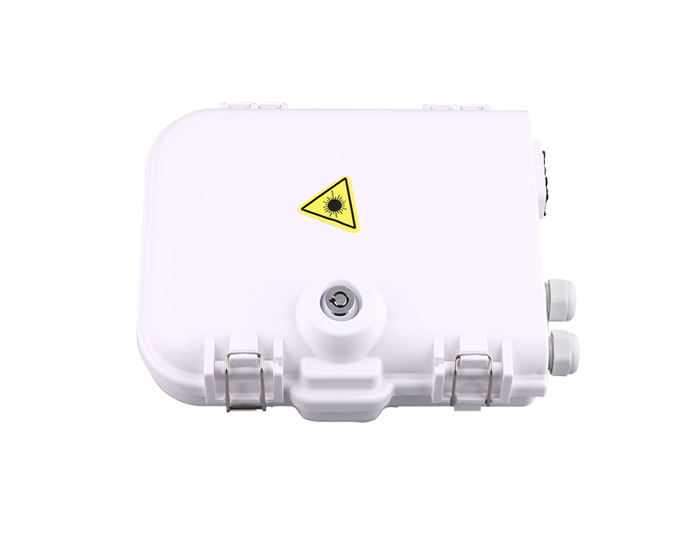

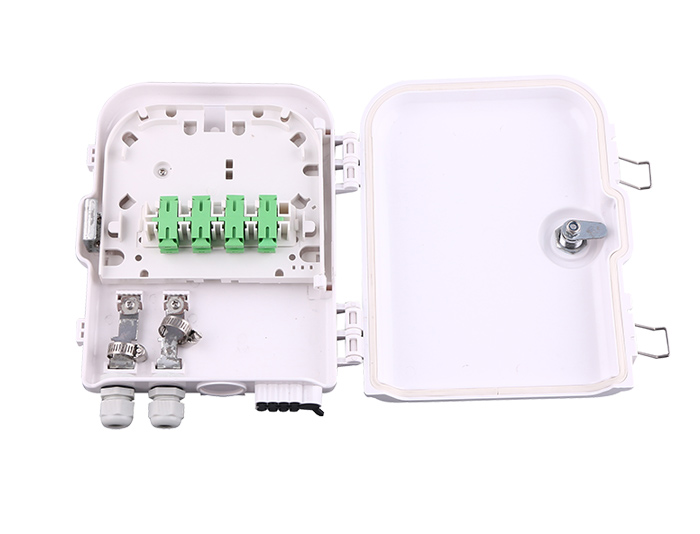

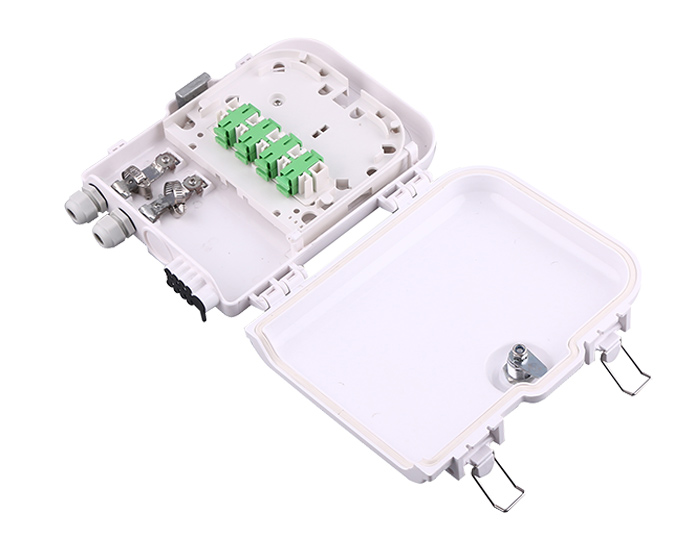

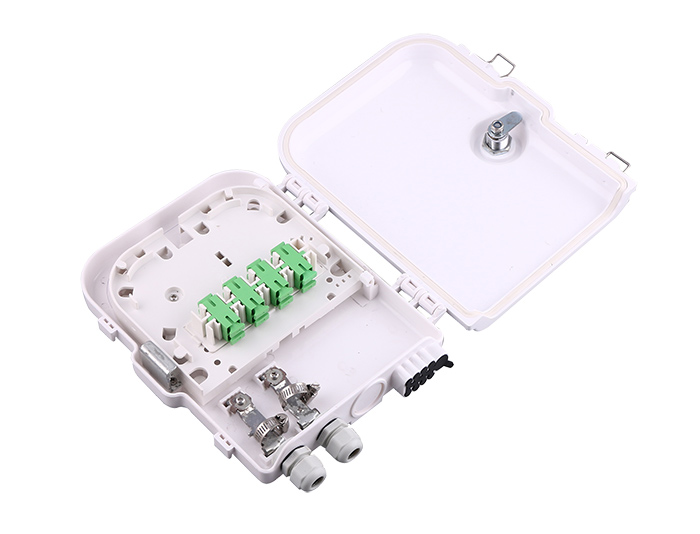

RGP-FDB-08A 8 Core Fibre Optic Splice Boxes are designed for use in both fibre-to-the-home and fibre-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables. The fiber box includes strain relief systems for main cables or for customer drops suitable for multiple applications: aerial, residential, building basement, building riser. The splice boxes may house fusion splices, mechanical splices or splitters.
Feature:
Can accommodate 1x8 SC/ LC Duplex Adaptor.
Material : PC/ABS Alloy or Fire-Retardant ABS .
UV and weather proof ; Up to 8 FTTH drops.
Wall and pole mountable, Grounding device included.
3 inlet ports( for cables with max diameter 12 mm), 6 outlet drop cable ports.
Suitable for used Uncut or Cut fiber optic cable.
Turn-over structure, layout is reasonable with splicing zone below and distribution zone above.
Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.
The mark is clear on each fiber connection and distribution.
The door opening angle is greater than 180 degree for easy operation and maintenance.
The redundant fiber is wound and protected.
Protection class: IP65
RoHS compliance.
Application:
FTTH access network.
Telecommunication Networks
CATV Networks
Data communications Networks
Local Area Networks.
