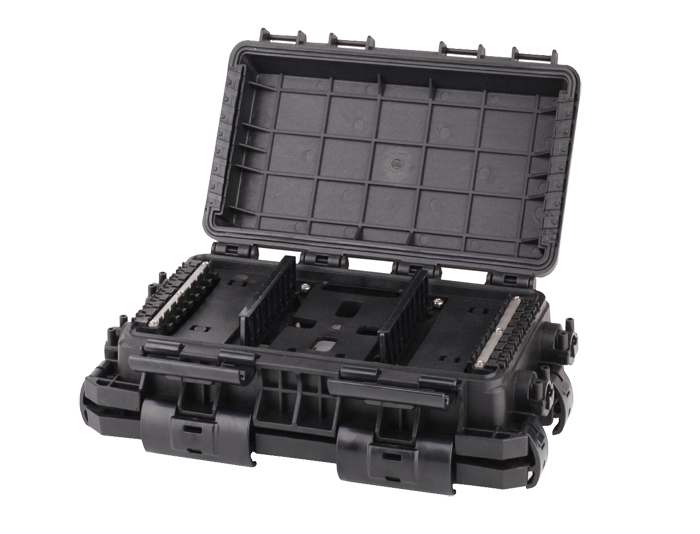

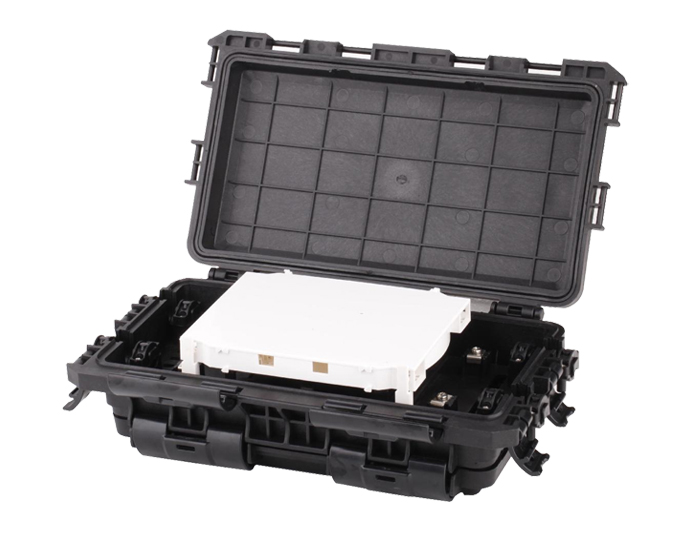

24 Core FTTH Optical Fiber Terminal Box F2E-506H

Publisher: MJADOM

Author: Andy


RGP-F2E-506H FTTH Drop Cable Type Optical Fiber Terminal Box provides a high density Aerial mounted & Pole mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space.



Description :


RGP-F2E-506H FTTH Drop Cable Type Optical Fiber Terminal Box provides a high density Aerial mounted & Pole mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. F2E-506H Fiber Box is normally installed in the way of aerial mounting & pole mounting. features with ruggedness, which is tested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures.


Optical Terminal Box can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.



Feature:


Material: Modified P.P.

Sealing Structure: Mechanical Sealing.

Seal Material: Thermoplastic rubber.

180-degree access with buckled lock structure

Dis-mountable adaptor panel, Support mid-span termination.

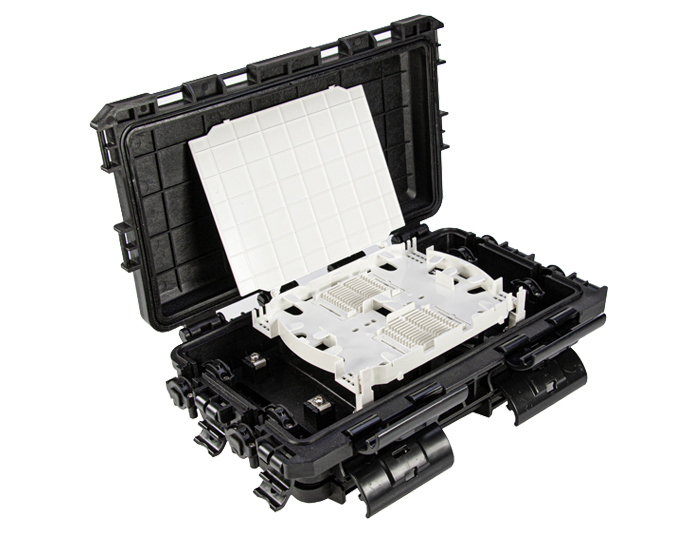

Rotatable and dis-mountable splice tray for easy splicing.

Plug-and-play installation, easy for maintenance and expansion.

Integrated with flap-up splice cassette and cable management system.

Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.



Impact test:1K10. Pull Force:100N. Full Rugged design.

1*8 or 1*16 PLC splitter can be installed in each splice tray as option.

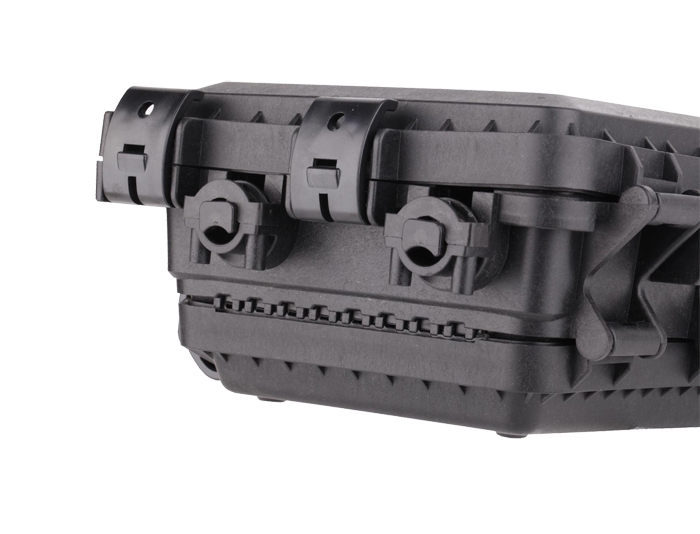

1 mid-span cable entrance(Φ8-14mm)for uncut cable and 2 branch ports for distribution cable(Φ10-16mm),16 ports cable entrance for FTTH drop distribution cables.

Protection class: IP68.

RoHS compliance.



Applications :
Aerial Mounting & & Wall Mounting & Pole Mounting Installation.


Configuration

Standard Accessories:


ItemNameUsageQuantity
1Optical Fiber Terminal Box CoverProtecting fiber cable splices in whole1 pc
2Optical Fiber Terminal Box BottomProtecting fiber cable splices in whole1 pc
3Splice cassetteTo splice the fiber opticSame as capacity
4Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
5Nylon TieTo fix buffer tubes with fibers insideSame as capacity
6Grounding WireTo connect with grounding device1pc
7Abrasive ClothTo polish fiber optic cable1pc
8Labelling PaperTo label fibers1 set
9Buffer TubeTo protect fibers and be fixed on splice trays1pc
10Installation bolts and nutsTo fix splice cassette1 set



Shipping Information:



SpecificationSizePcs/CartonWeight
Internal Carton Box305mmx245mmx115mm1 pc1.8 KGS
Outside Carton Box560mmx490mmx310mm10 pcs18.5 KGS



Order Information:


Model No.Spliced fiber storage capacitySize(mm)Height * diameterCable portsMax. diameter of cable(mm)Applicable Cable DiameterAdaptors
RGP-F2E-506H24 Fibers (1*24 Fibers)300mm*240 mm *110mm1 Uncut Port & 2 Round Port + 16 Drop Cable Outlet Ports1 uncut of port can support Φ8~14 mm;2 branch ports for distribution cable Φ10~16mm; 2*3mm FTTH Drop Cable, 2*5mm Figure 8 FTTH Drop Cable1 pc of 1*16 PLC Splitter or 2 pcs of 1*8 PLC Splitter
