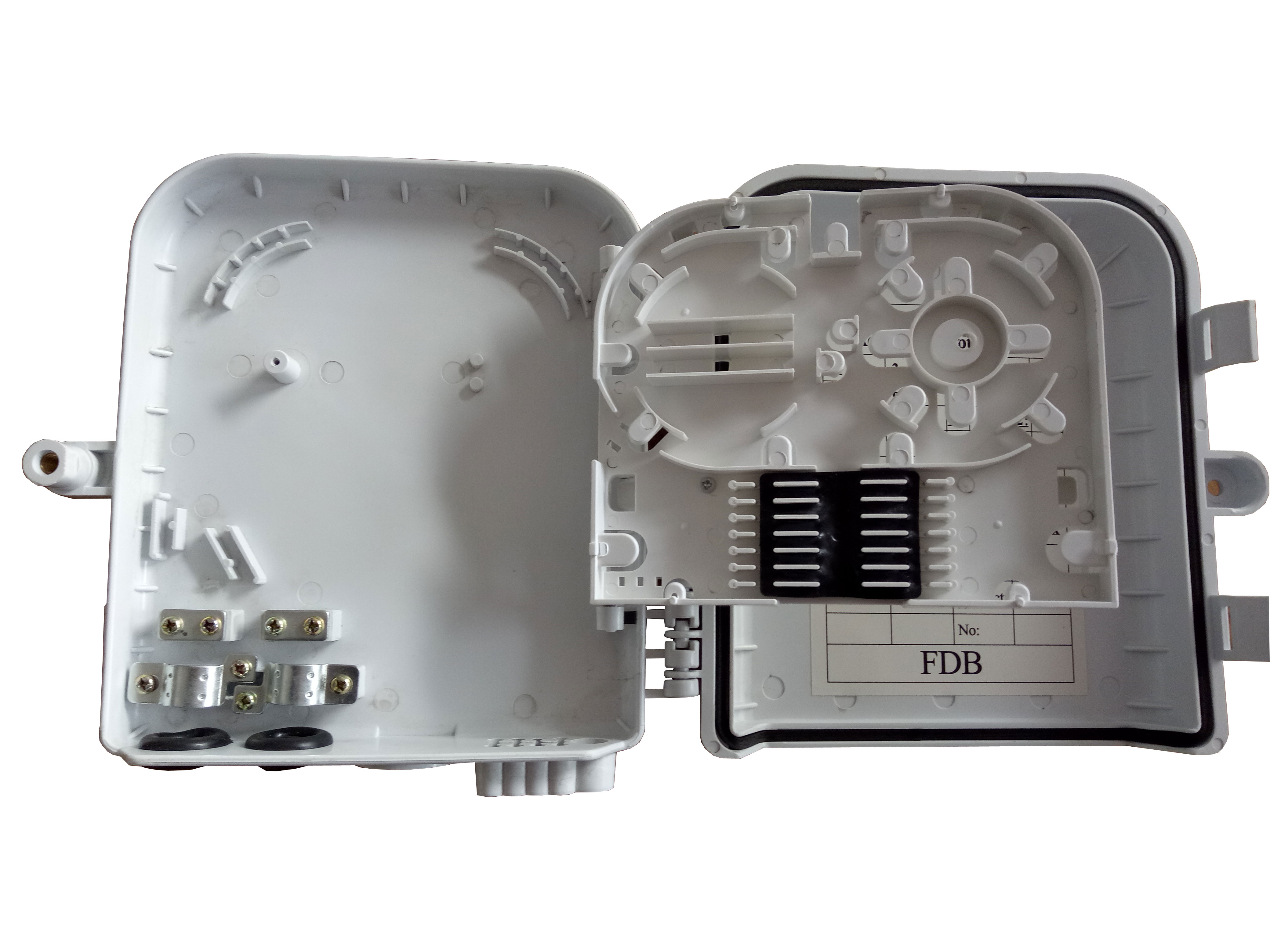

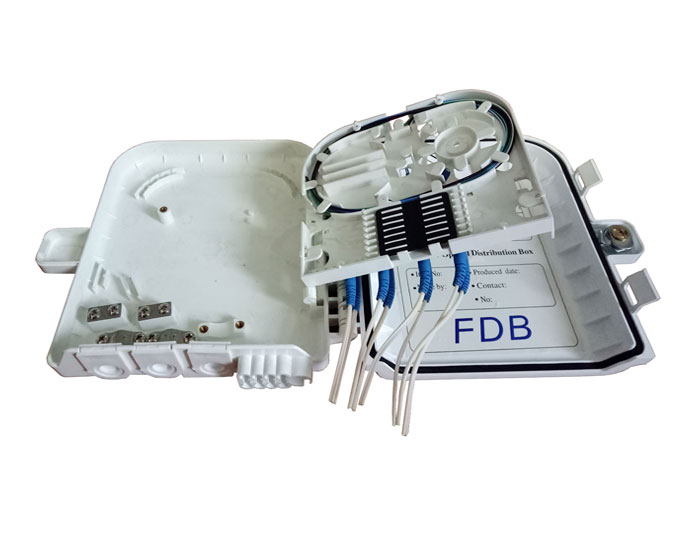

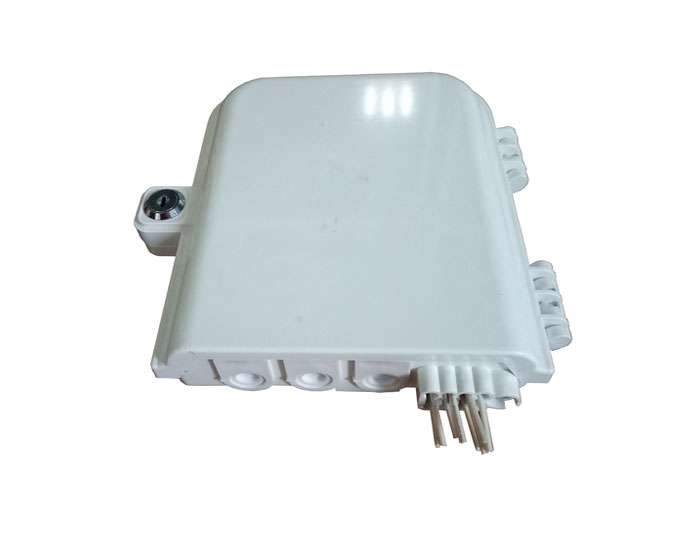

8 Core Fiber Optic Terminal Box | Fiber Optic Box FDB-08B

Publisher: MJADOM

Author: Andy

RGP-FDB-08B  8 Core  Fiber Optic Terminal Box called Fiber Optic Box & Fibre Optic Distribution Boxes is designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.


The Fiber Terminal Box is made of 70%PC+30%ABS has a good high-pressure resistance and corrosion resistance.


RGP-FDB-08B  8 Core Fiber Optic Terminal Box called Fiber Optic Box & Fibre Optic Distribution Boxes is designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.


The range includes strain relief systems for main cables or for customer drops suitable for multiple applications: aerial, residential, building basement, building riser. The distribution boxes may house fusion splices, mechanical splices or splitters.

Can accommodate 1x8 SC/ LC Duplex Adaptor.

Material : PC/ABS Alloy or Fire-Retardant ABS .

UV and weather proof ; Up to 8 FTTH drops.

Wall and pole mountable, Grounding device included.

3 inlet ports( for cables with max diameter 12 mm), 6 outlet drop cable ports.

Suitable for used Uncut or Cut fiber optic cable.

Turn-over structure, layout is reasonable with splicing zone below and distribution zone above.



Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.

The mark is clear on each fiber connection and distribution.

The door opening angle is greater than 180 degree for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP54.

RoHS compliance.


Application:

FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks.


Configuration

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
RGP-FDB-08B

8 Splices,

8 SC/LC Duplex adaptors

or 1x8 PLC Splitter

200mmx215mm

x54 mm

20 PCS

3 Inlet for Uncut or Cut Port

+8 Drop Cable Outlet Ports

13 KGS

490mmx460mm

x330mm

Related Products

2 Port Fiber Termination Box Fiber Optic Distribution Box FDB-02A
2 Port Fiber Termination Box Fiber Optic Distribution Box FDB-02A

RGP-FDB-02B 2 Core Fibre Optic Distribution Boxes is designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.

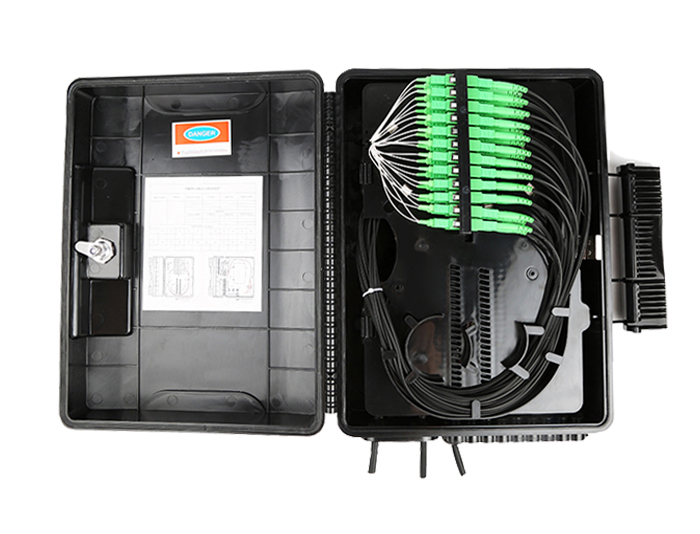

96 Core Outdoor Fiber Distribution Box - Fiber Termination Box FDB-096B
96 Core Outdoor Fiber Distribution Box - Fiber Termination Box FDB-096B

RGP-FDB-096B 96 Core Fibre Optic Distribution Box also called Fiber Termination Box is designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures.

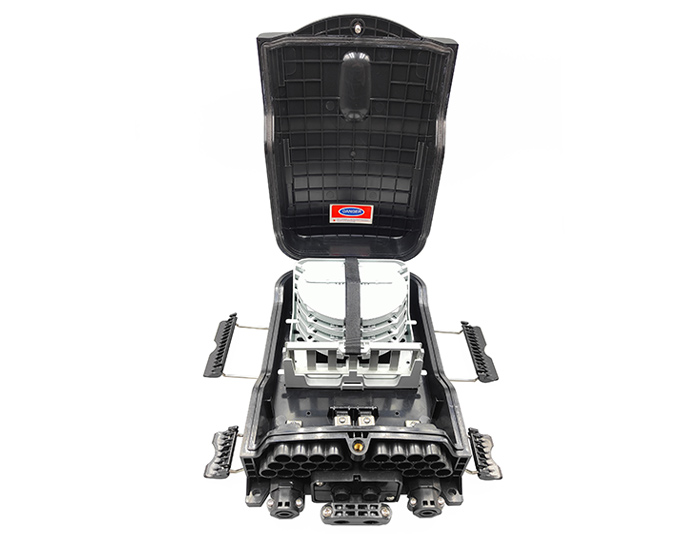

16 Core Outdoor IP65 FTTH Optical Fiber Terminal Box F2E-601-16H
16 Core Outdoor IP65 FTTH Optical Fiber Terminal Box F2E-601-16H

RGP-F2E-601-16H Optical Fiber Terminal Box design to protect joints of optical cable can hold up to 16 subscribers. it's made of Modified P.P+GF and the tray is 100% New ABS, which has high-pressure resistance and corrosion resistance. Available for 2 trays and each tray can splice 24 fibers.

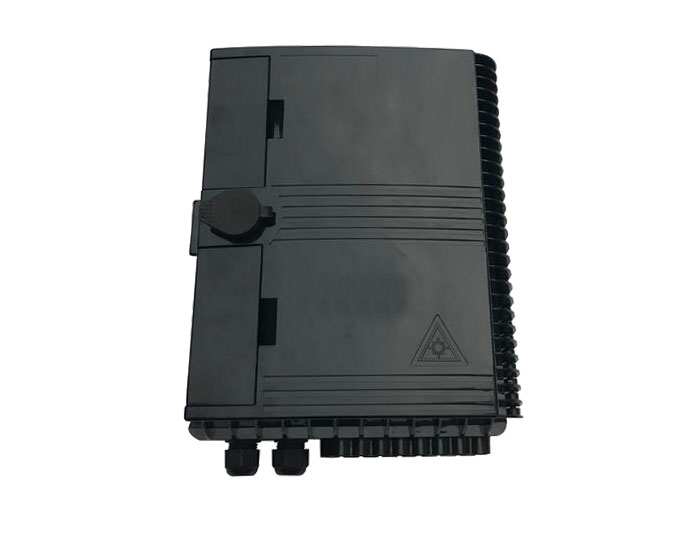

8 Core Outdoor FTTH Fiber Termination Box F2E-601-8C
