Description :

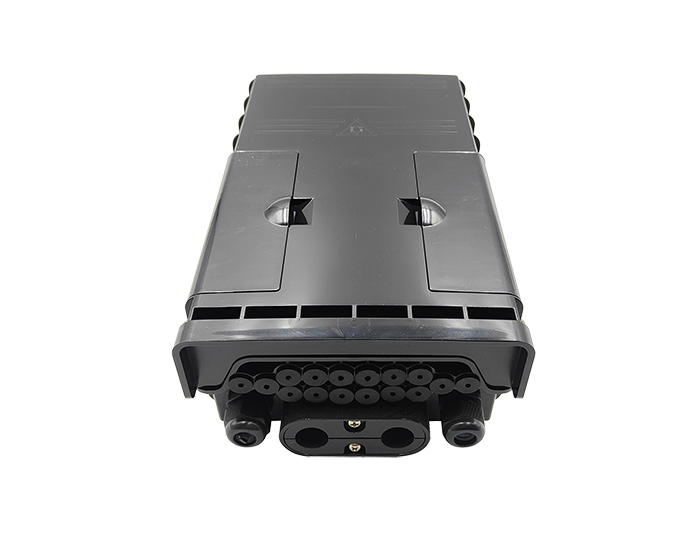

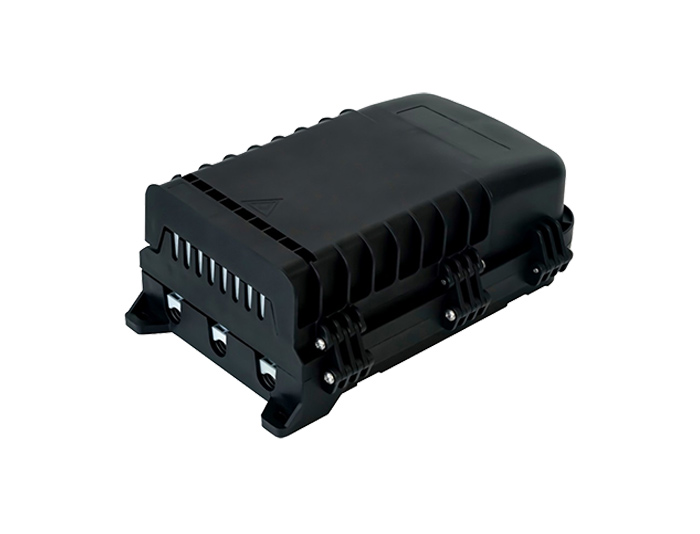

RGP-FDB-016P 16 Core Outdoor Fibre Optic Termination Box are designed use in for both fibre-to-the-home and fibre-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables. The Outdoor Fiber Termination Box provides fiber splicing, splitting, and distribution can be done in the ftth terminal box, and meanwhile, FTTH Termination Box provides solid protection and management for the FTTx network building. Multiple applications: aerial, residential, building basement, and building riser.
Feature:
Total enclosed structure.
Complete opening of the hinges with stop included.
Material: PC/ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
Clamping for feeder cable and drop cable; fiber splicing, fixation, storage, distribution...etc all in one.
1 uncut cable port for feeder cables.
Fixed hermetic seals in all its grooves
The entire fiber route protected by transport tube.
Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

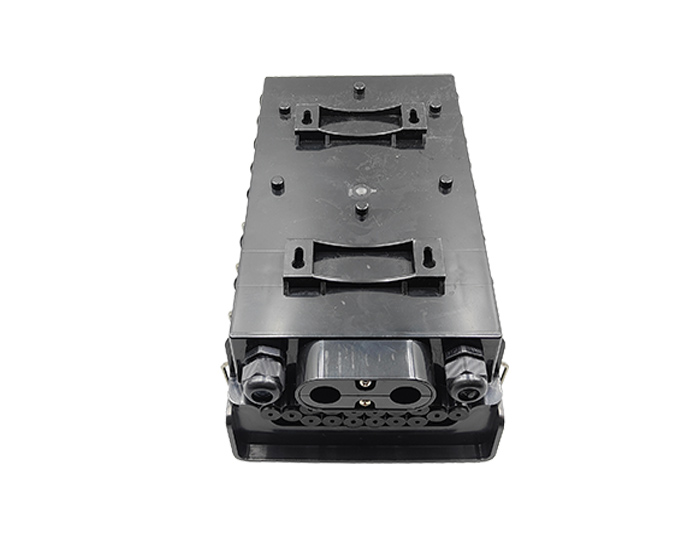

Suitable for bunchy fibers, Aerial, and Wall-mounting.

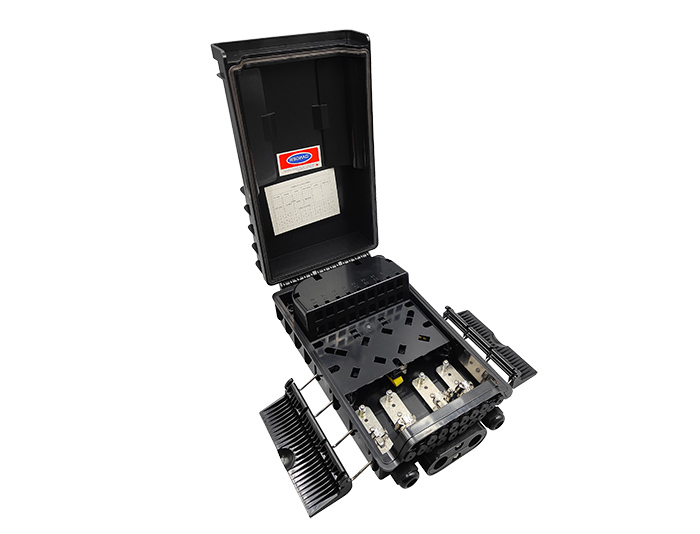

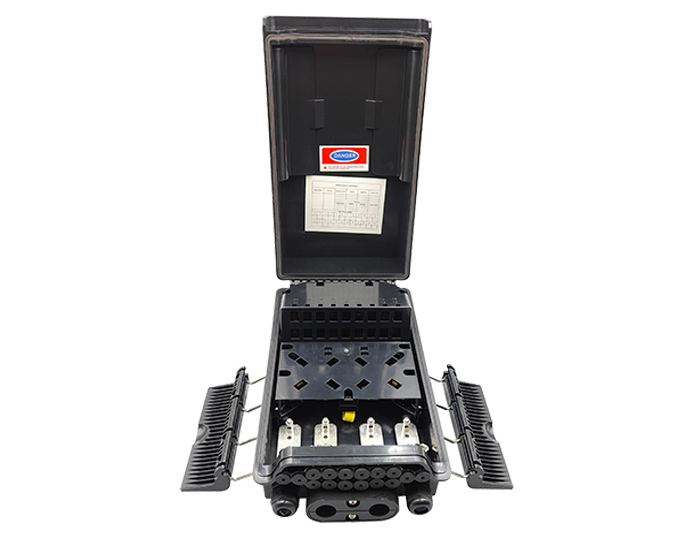

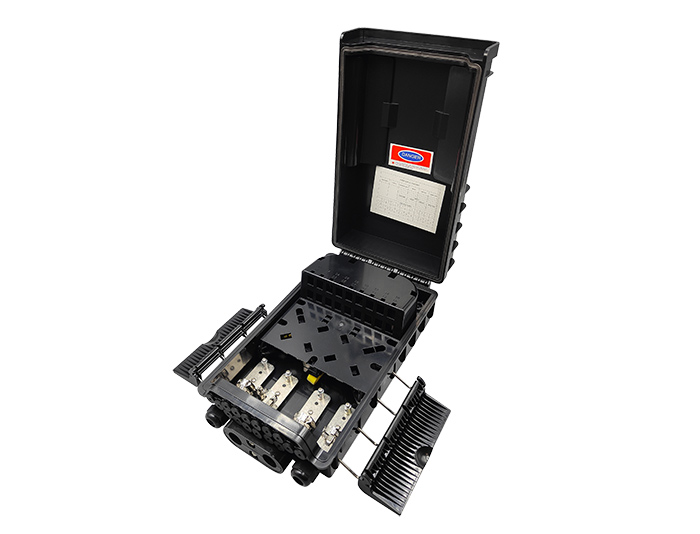

Plug-and-play installation, easy for maintenance and expansion, Integrated with flap-up splice cassette and cable management system.
Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.
Applications:
Aerial mounting & Pole mounting.
