Description:

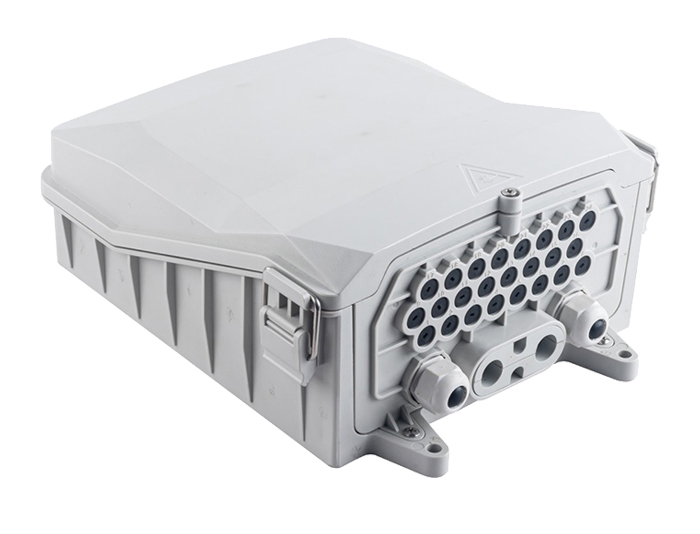

RGP-FDB-016G-16F/24F Fibre Optic Enclosure Outdoor provides a high-density wall-mounted, pole-mounted, and aerial mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. The Fiber Enclosure Wall Mount is widely used as a termination point for the feeder cable to connect with the drop cable. The fiber splicing, splitting, distribution can be done in this box.
The Fiber Splitter Box can be used for FTTH deployments (PON and P to P networks) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside, Especially the bottom plate is changeable.
Feature:
Total enclosed structure.
Closure Material: PC+ABS, Water-proof, Dust-proof, anti-aging design; Protection level up to IP65.

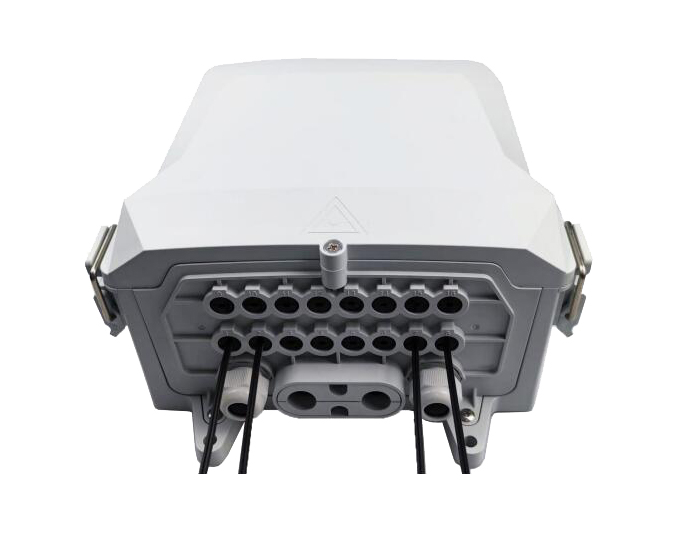

The cable entry uses cable gland to provide protection at the bottom.
16/24 cores fiber termination capacity.

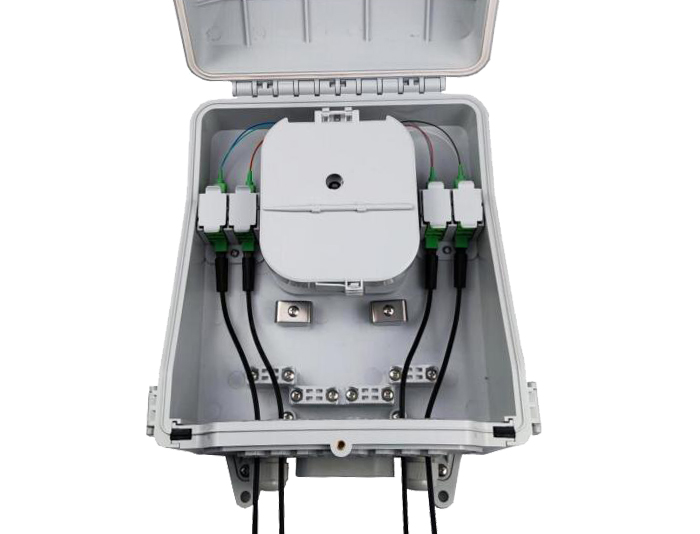

Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, and distribution can be done in the box.
180-degree access with buckled lock structure.
Cable, pigtails, and patch cords run through their own paths without disturbing each other, micro type PLC splitter installation, easy maintenance.

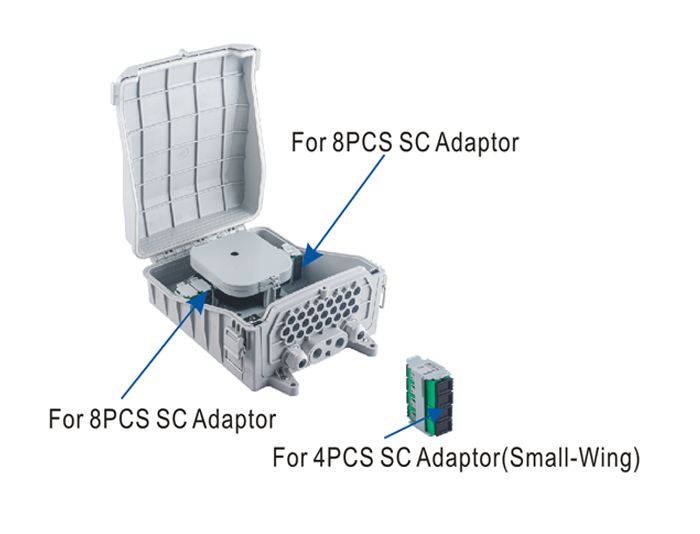

Dis-mountable adaptor panel, Supports mid-span termination.
Rotatable and dis-mountable splice tray for easy splicing.
Plug-and-play installation, easy for maintenance and expansion.
All the metallic components, parts and accessories are protected against corrosion and various forms of localized corrosion.
Integrated with flap-up splice cassette and feeder cable can be placed by expression port, easy for maintenance and installation.
Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.
Wall-mounted, Poled-mounted.
RoHS compliance.
Application:
FTTH access network.
Telecommunication Networks.
CATV Networks.
Data communications Networks.
Local Area Networks.
