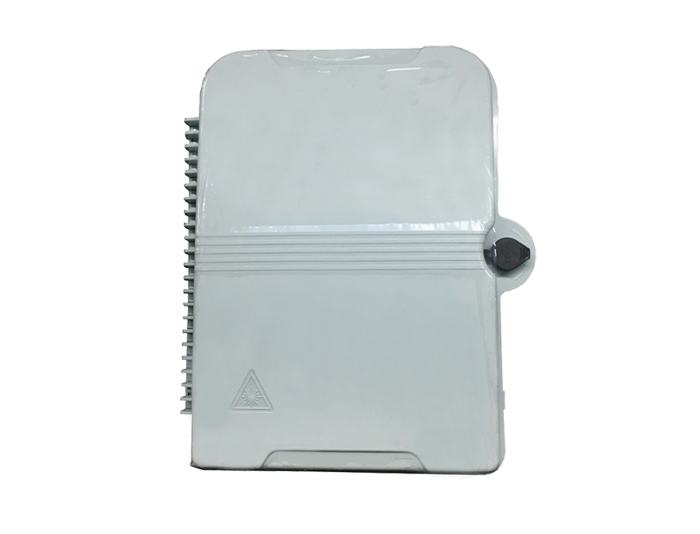

16 Core Outdoor Fiber Splitter Distribution Box with PLC Splitter FDB-016K

Publisher: MJADOM

Author: Andy

RGP-FDB-016K Fiber Splitter Distribution Box also called Fiber Splitter Box can pre-install the LGX splitter, The function of fiber splitter box for the fiber optic storge, split, and distribution. It's the ideal equipment applied to the second stage splitter point of the optical fiber network.

RGP-FDB-016K Fiber Splitter Distribution Box also called Fiber Splitter Box is used for connecting optical cable with various equipment in FTTX optical access network node. In FTTH application, it is applied to the second stage splitter point of the optical fiber network. The optical cable can be connected by fusion or mechanical jointing method after introduction into the box. It is possible to realize cable termination, splitting and distribution function conveniently.


The body of the box is made of 70%PC+30%ABS alloy material, It's a good of high-pressure resistance and corrosion resistance.

Can accommodate 1x16 Insert Splitter Box.

Material : PC/ABS Alloy or Fire-Retardant ABS .

UV and weather proof ; Up to 16 FTTH drops.

Wall and pole mountable.

2 inlet ports( for cables with max diameter 14 mm), 16 outlet drop cable ports.

Suitable for used uncut OR cut fiber optic cable.

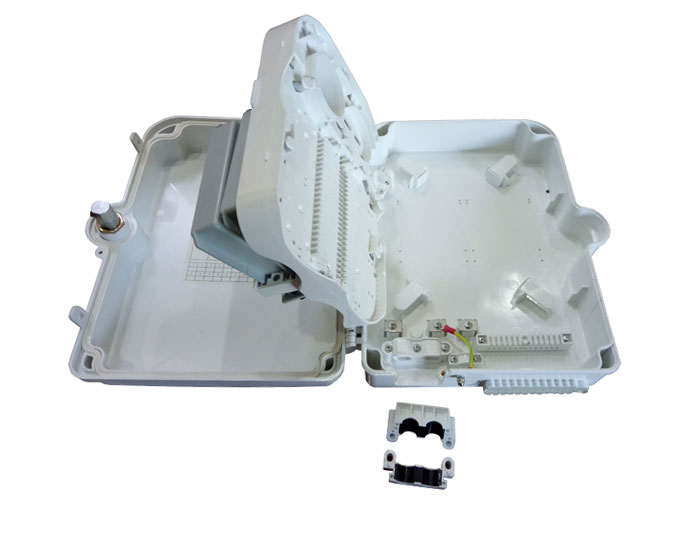

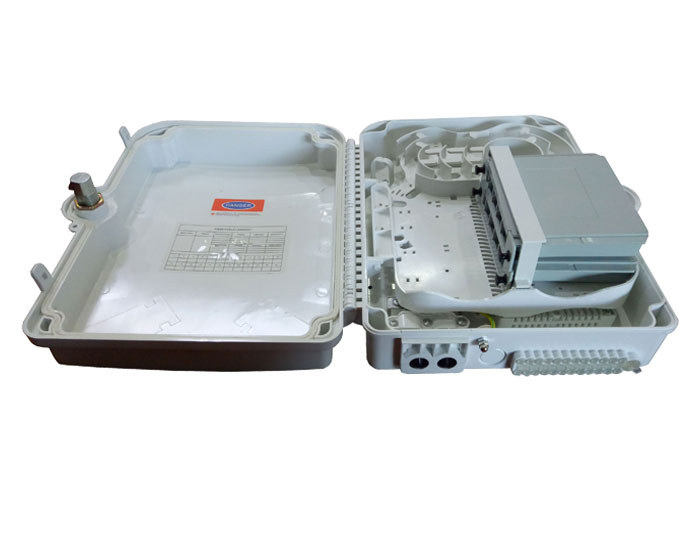

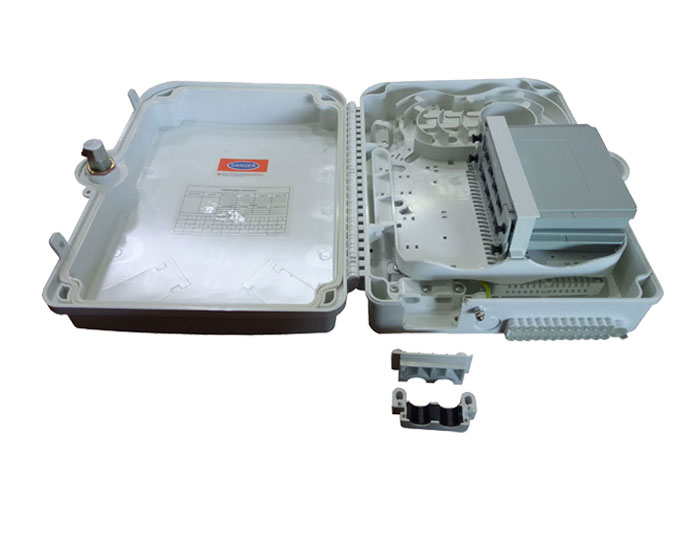

Optical fiber distribution and splitting box are composed by cabinet body, splicing tray, splitting module and accessories.



The box has two layers. The outer layer is composed with mounting unit for splitter and cable

management parts. The inner layer is equipped by splicing tray and cable storage unit for pass-through riser cable.



Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.

The mark is clear on each fiber connection and distribution.

The door opening angle is greater than 180 degree for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP65

RoHS compliance

FTTH access network.

Telecommunication Networks

CATV Networks.

Data communications Networks.

Local Area Networks.

Configuration

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
RGP-FDB-016K

16 Splices,

1x16 PLC Insert Splitter Box

320mmx240mm

x100 mm

10 PCS

2 Inlet Port ( Cut or Uncut Port )

+16 Drop Cable Outlet Ports

19.7 KGS

600mmx360mm

x680mm
