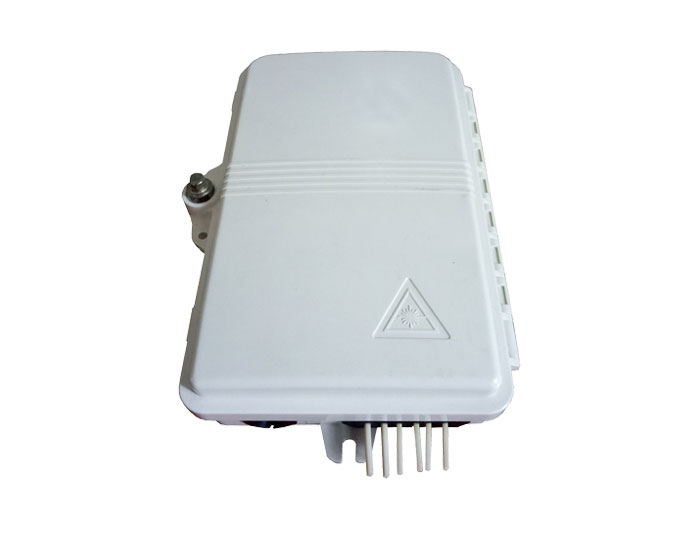

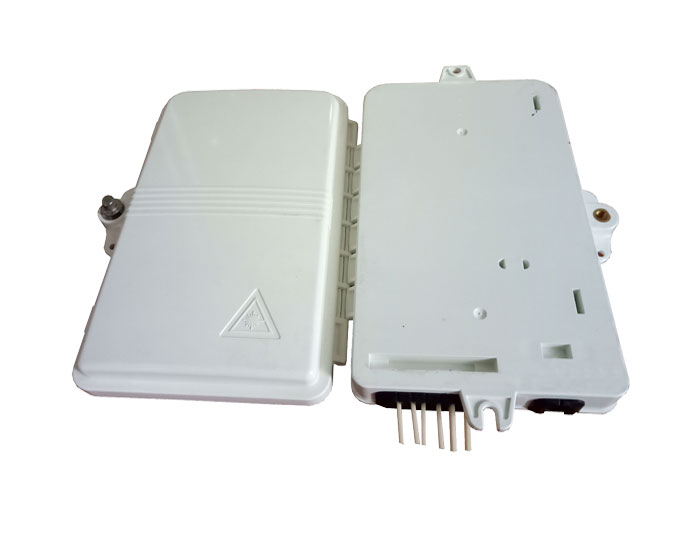

6 Port Fibre Termination Box - Fiber Optic Termination Box FDB-06B

Publisher: MJADOM

Author: Andy

RGP-FDB-06B  6 Core Fiber Optic Termination Box also called Fiber Optic Distribution Box, The box is used to connect drop cables and passive ONU devices, which design for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.

RGP-FDB-06B  6 Core Fiber Optic Termination Box also called Fiber Optic Distribution Box is designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.


The range includes strain relief systems for main cables or for customer drops suitable for multiple applications: aerial, residential, building basement, building riser. The distribution boxes may house fusion splices, mechanical splices or splitters.


Can accommodate 1x6 SC/ LC Duplex Adaptor.

Material : PC/ABS Alloy or Fire-Retardant ABS .

UV and weather proof ; Up to 6 FTTH drops.

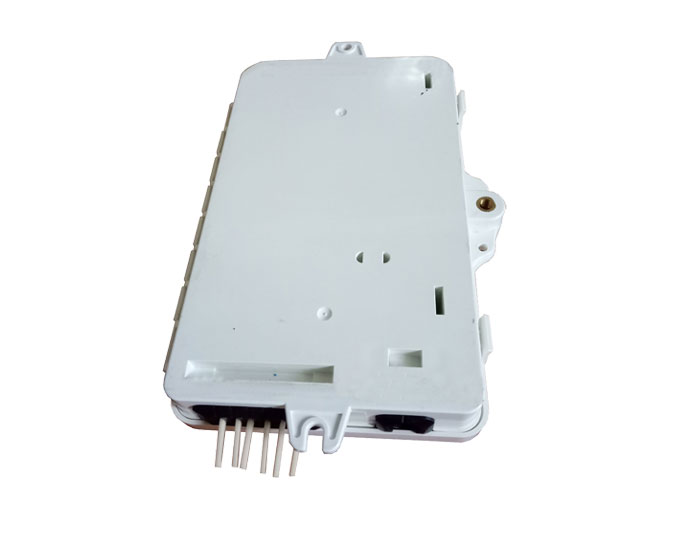

Wall and pole mountable, Grounding device included.

1 inlet ports( for cables with max diameter 12 mm), 6 outlet drop cable ports.

Suitable for used uncut fiber optic cable.

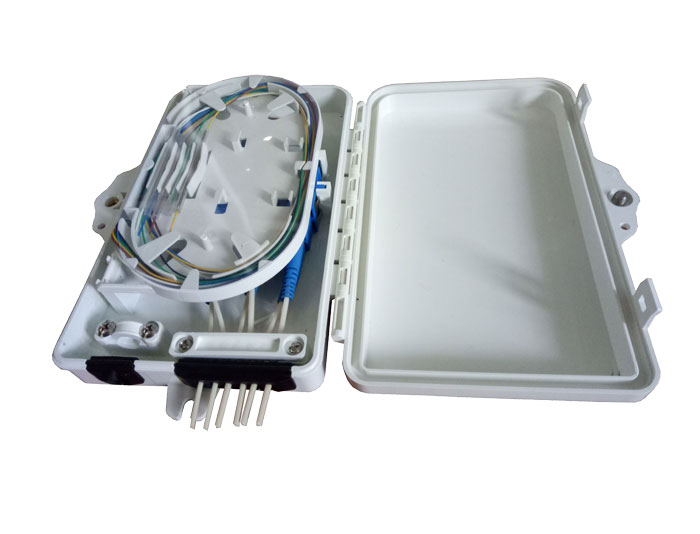

Turn-over structure, layout is reasonable with splicing zone below and distribution zone above.



Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.

The mark is clear on each fiber connection and distribution.

The door opening angle is greater than 180 degree for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP65

RoHS compliance.


FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks.

Configuration

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
RGP-FDB-06B

6 Splices,

6 SC/LC Duplex adaptors

or 1x4 PLC Splitter

186mmx116mm

x40 mm

50 PCS1 Inlet for Uncut Port +6 Drop Cable Outlet Ports17.5 KGS

430mmx370mm

x470mm
