Description:
RGP-F2E-506F 24 Fibers FTTH Drop Cable Type Fiber Optic Nap Box provides a high-density wall mounted & pole mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting pole mounting. Fiber Box features with ruggedness, which is tested under harsh conditions and stands up to even the most severe conditions of moisture, vibration and extreme temperatures.
The Fiber Nap can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.
Feature:
Material: Modified P.P.
Sealing Structure: Mechanical Sealing.
Seal Material: Thermoplastic rubber.
180-degree access with buckled lock structure.
Dis-mountable adaptor panel, Supports mid-span termination.

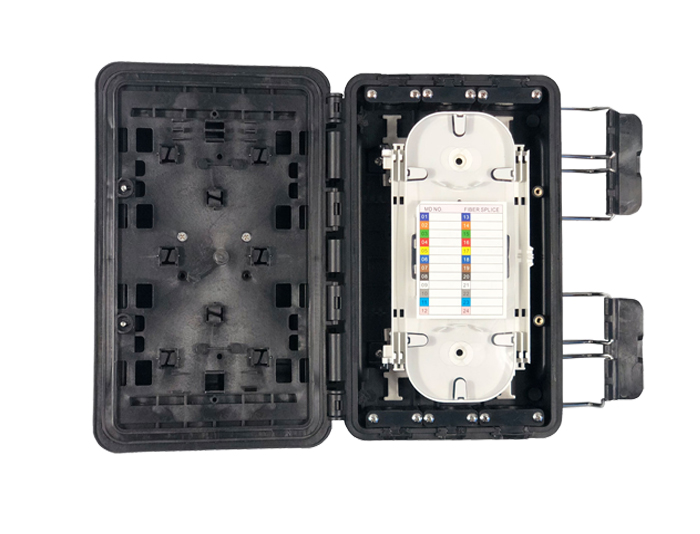

Rotatable and dis-mountable splice tray for easy splicing.
Integrated with flap-up splice cassette and cable management system.
Plug-and-play installation, easy for maintenance and expansion, Integrated with flap-up splice cassette and cable management system.
Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.

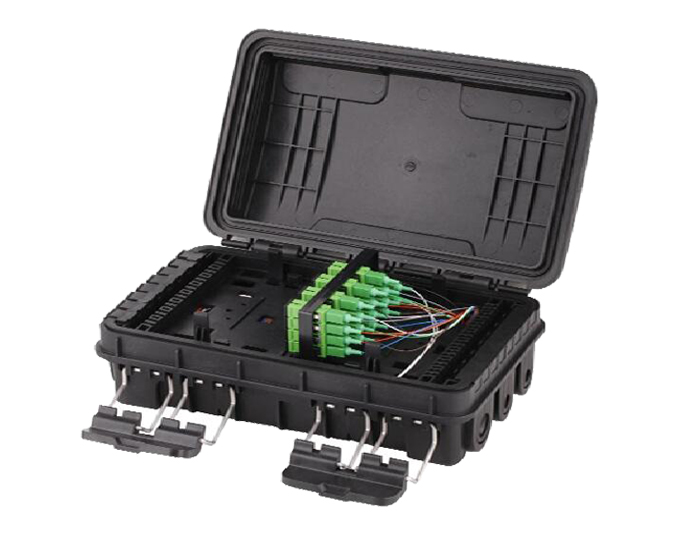

2 layers structure, the upper layer can install 2 pcs 1*8 LGX Splitter, the lower layer can install 4 pcs 24F splice trays, easy for future expansion and maintenance.

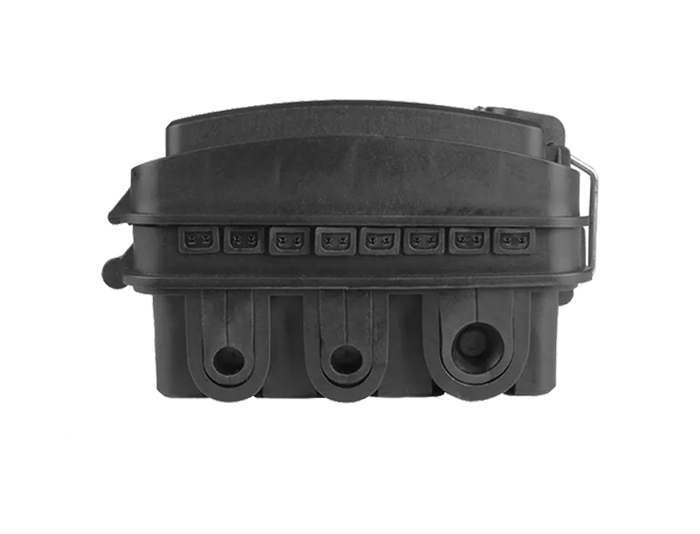

6 cable ports entrance, 2 for feeder cable (8-20mm) and 4 for branching cable (5-16mm) OR 2*3mm FTTH Drop Cable, 2*5mm Figure 8 FTTH Drop Cable.
Impact test:1K10. Pull Force:100N. Full Rugged design.
Support ADSS cable and self-support fiber cable.
Can accommodate two 1x8 PLC splitter LGX modules or steel tube type;
Protection class: IP65.
RoHS compliance.
Applications :
Wall mounting & Aerial mounting installation.
