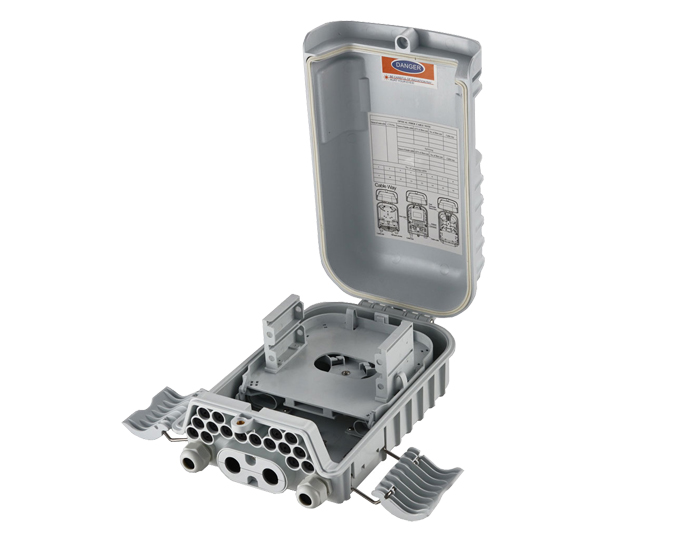

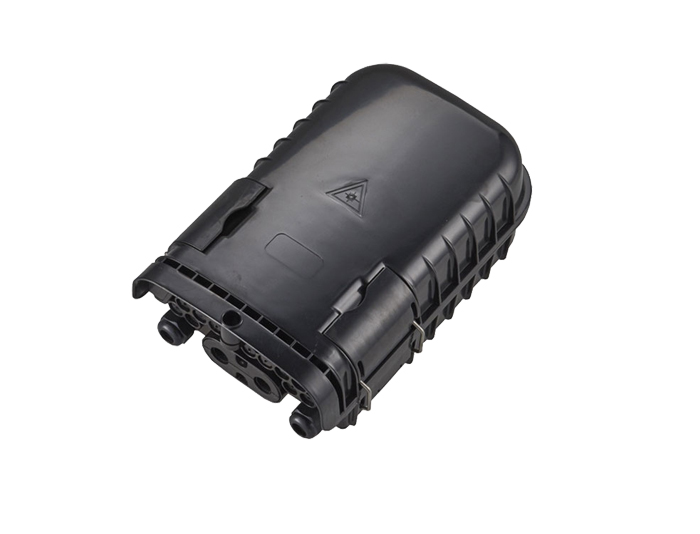

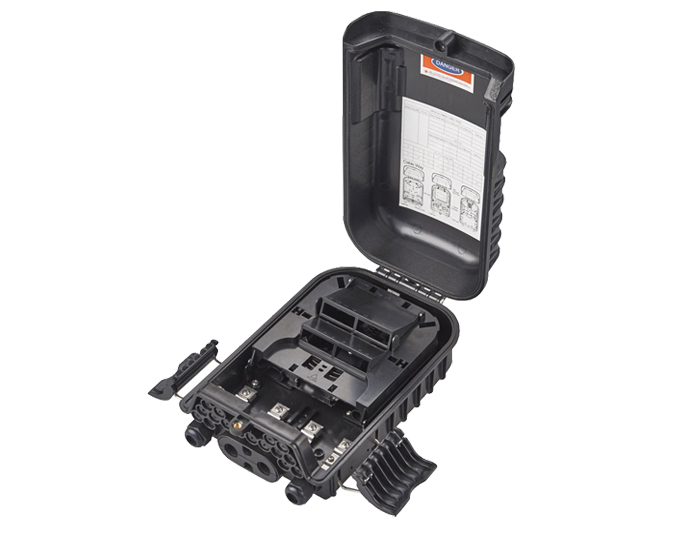

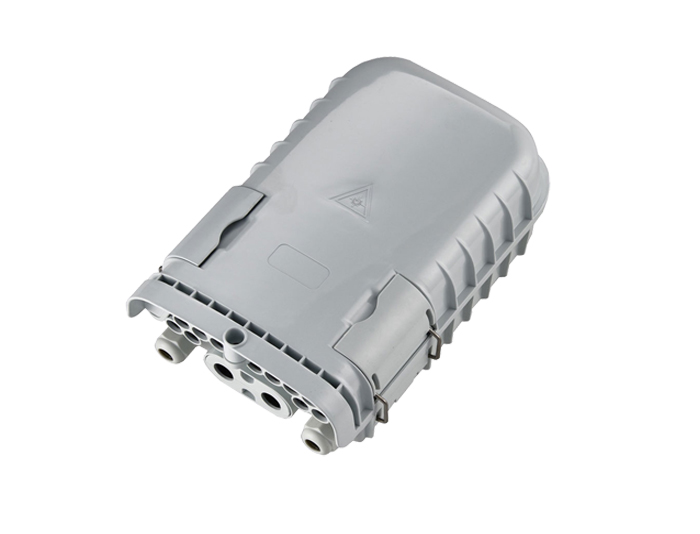

16 Core Outdoor Fibre Optic Cable Box - Fiber Distribution Box FDB-016E

Publisher: MJADOM

Author: Andy

RGP-FDB-016E Fiber Optic Cable Box called Fiber Distribution Box with the pre-terminated cable could be able to hold up to 16 subscribers. The body of the box is made of 70%PC+30%ABS alloy material, It's a good of high-pressure resistance and corrosion resistance.


It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.


RGP-FDB-016E Fiber Optic Cable Box called Fiber Distribution Box with the pre-terminated cable could be able to hold up to 16 subscribers. It is used as a termination point for the feeder cable to connect with the drop cable in the FTTx network system. It integrates fiber splicing, splitting, distribution, storage and cable connection in one solid protection box.


Pre-terminated Fiber Access Terminal helps save installation time and labor cost by plugging the pre-terminated cable assemblies into the matching fiber adapters without terminating fiber optic cable in the field again.


Feature:

Closure Material : PC+ABS plastic alloy.

Water-proof design ; Protection level up to IP65.

Integrated with flap-up splice cassette and cable management rods.

Mechanical sealing structure and mid-span cable entry.

Maximum 120F splice capacity,stainless anti-rust bolts and nuts.

Plug-and-play installation,easy for maintenance and expansion.


Fiber bend radius control more than 40mm.

Protects and manages cable effectively

Secured with anti-theft locking mechanism

Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.


Suitable for SC and LC duplex adapter and pigtail

1*8 Micro Splitter can be installed in each splice tray as option.

1 mid-span cable entrance(Φ10-17.5mm)for uncut cable and 2 branch ports for distribution cable(Φ10-17.5mm),16 pcs of pre-terminated reinforced water-proof adapter for SC & LC.

RoHS compliance.





Applications :
Wall mounting & pole mounting installation.


Optional Accessories:

Pole mounted kits,Aerial hanging kits.


Configuration

Model No.

Spliced fiber storage capacity

Size(mm)

L xW xH

Cable portsMax. diameterof cable(mm)Applicable Cable DiameterPLC Splitter
RGP-FDB-016E
 16 Splices

353mmx212mm

x106mm

1 Uncut Port +2 Branch Ports

+16 pcs of pre-terminated Patch Cord.

1 uncut of port can support Φ10~17.5mm;

2 branch ports forΦ10~17.5mm cable.

16 Round ports for Pre-termianted reinforced

water-proof

adapter for SC.

2 pc of

1x8 LGX Insert Splitter



Related Products

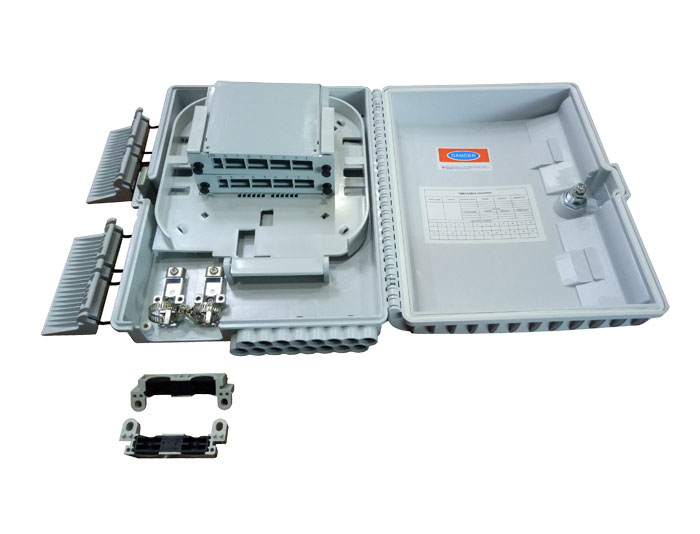

8 Core Fiber Optic Terminal Box | Fiber Optic Box FDB-08B
8 Core Fiber Optic Terminal Box | Fiber Optic Box FDB-08B

RGP-FDB-08B 8 Core Fiber Optic Terminal Box called Fiber Optic Box & Fibre Optic Distribution Boxes is designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures. The fiber optic box can load SC Fiber Adapter, pre-install SC/UPC & SC/APC optical splitter.

24 Core Outdoor Fiber Termination Box - Fiber Splice Box FDB-024B
24 Core Outdoor Fiber Termination Box - Fiber Splice Box FDB-024B

RGP-FDB-024B 24 Core Outdoor Fibre Optic Distribution Box called Fiber Termination Box is designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures.

12 Core Fibre Optic Distribution Box - Optical Terminal Box FDB-012B
12 Core Fibre Optic Distribution Box - Optical Terminal Box FDB-012B

RGP-FDB-012B Fibre Optic Distribution Boxes are designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, The box easy to pre-install the cable, PLC Splitter, and fiber adapter, save time and energy.

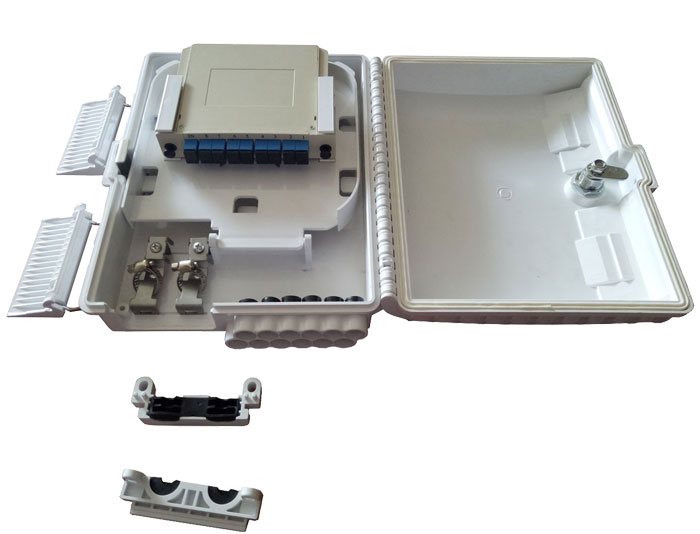

8 Core Fiber Splitter Distribution Box With LGX Splitter FDB-08J
