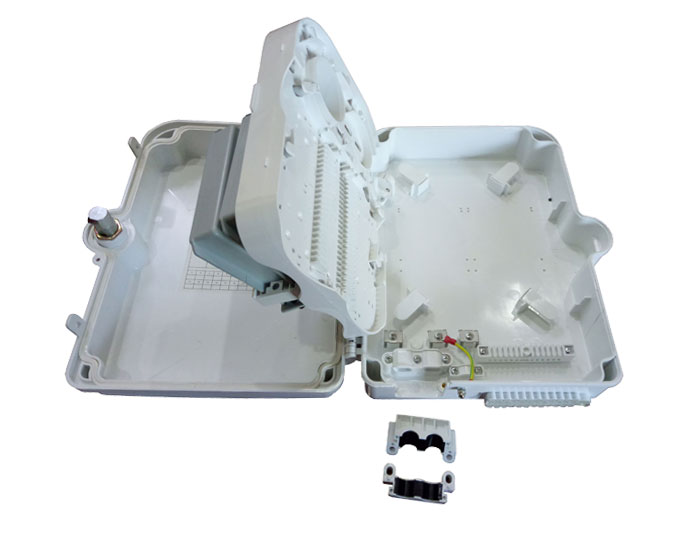

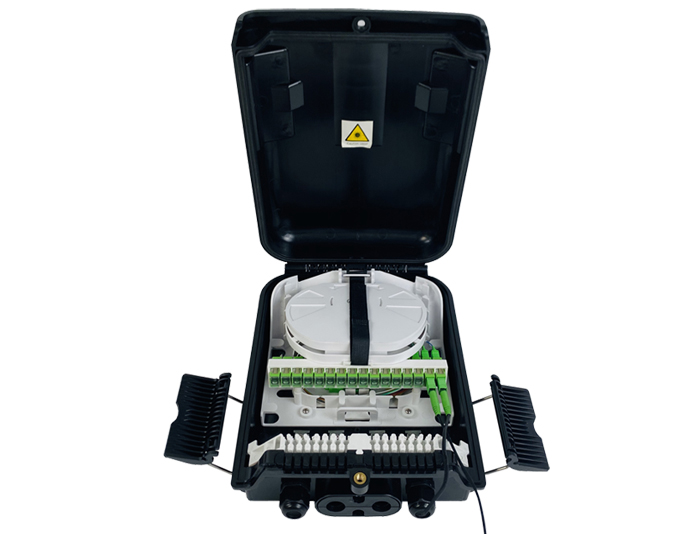

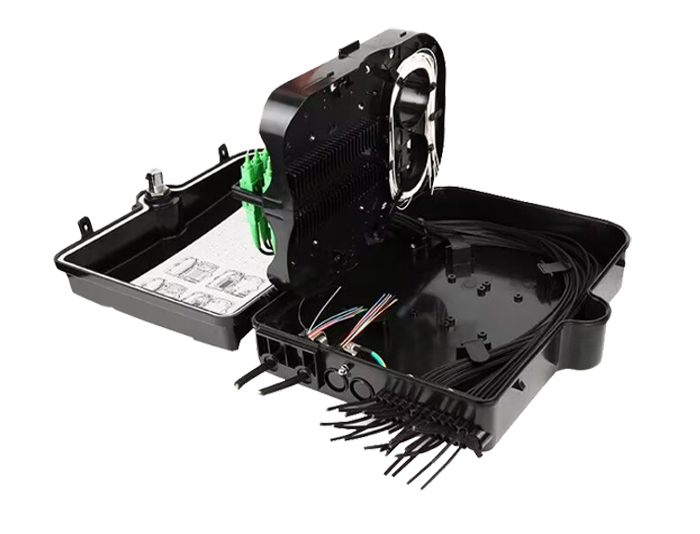

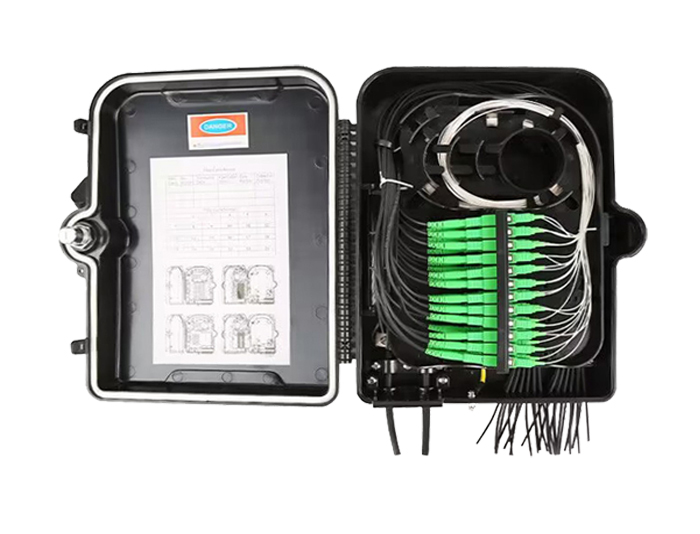

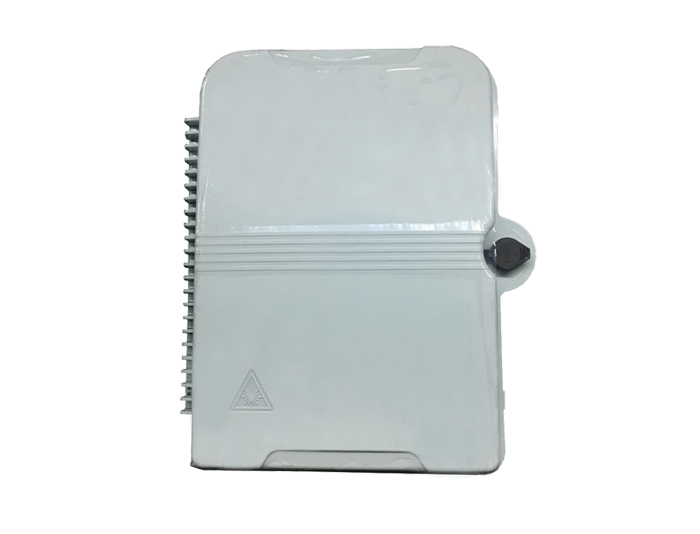

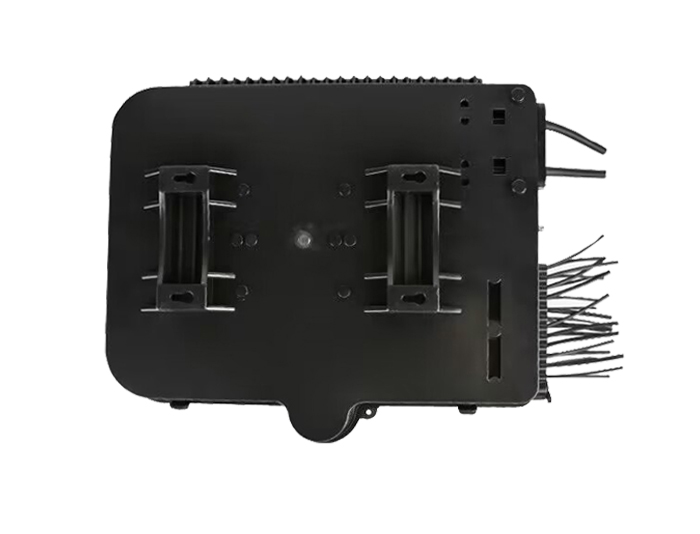

24 Core Outdoor Fiber Termination Box - Fiber Splice Box FDB-024B

Publisher: MJADOM

Author: Andy

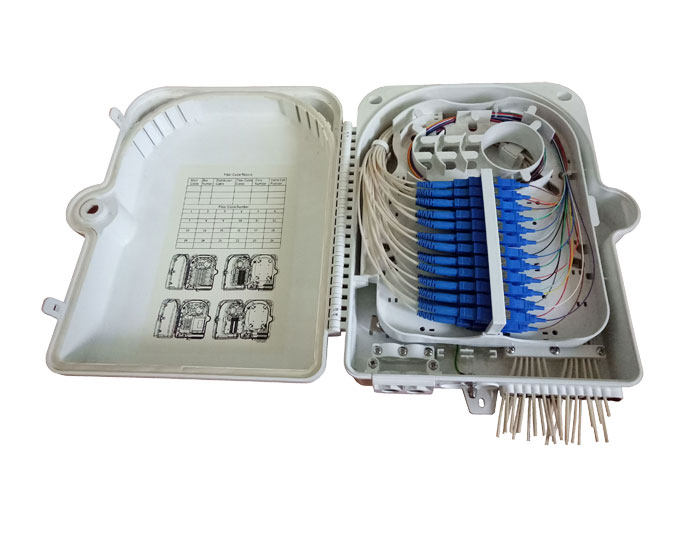

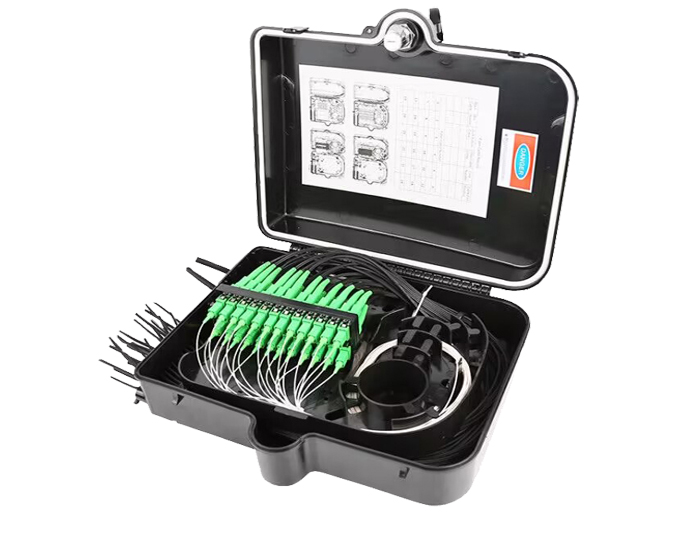

RGP-FDB-024B 24 Core Fibre Optic Distribution Box called Fiber Optic Box can load SC Fiber Adapter, Fiber Optic Splitter, The body of the box is made of 70%PC+30%ABS alloy material. It's designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures.


It's the ideal equipment between the optical node and the terminal.

RGP-FDB-024B 24 Core Fibre Optic Distribution Box is designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.


The range includes strain relief systems for main cables or for customer drops suitable for multiple applications: aerial, residential, building basement, building riser. The distribution boxes may house fusion splices, mechanical splices or splitters.

Can accommodate 1x24 SC/ LC Duplex Adaptor.

Material : PC/ABS Alloy or Fire-Retardant ABS .

UV and weather proof ; Up to 24 FTTH drops.

Wall and pole mountable, Grounding device included.

2 inlet ports( for cables with max diameter 21 mm), 24 outlet drop cable ports.

Suitable for used uncut OR cut fiber optic cable.

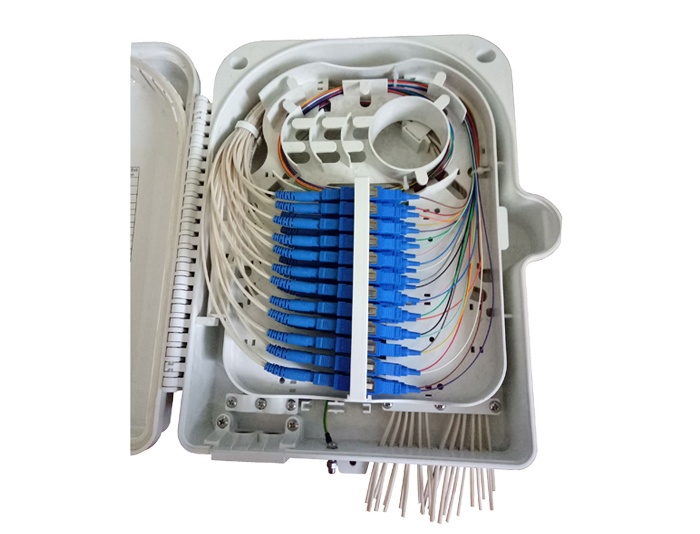

Turn-over structure, layout is reasonable with splicing zone below and distribution zone above.



Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.

The mark is clear on each fiber connection and distribution.

The door opening angle is greater than 180 degree for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP65

RoHS compliance

FTTH access network.

Telecommunication Networks.

CATV Networks.

Data communications Networks.

Local Area Networks.

Configuration

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
RGP-FDB-024B

24 Splices,

24 SC/LC Duplex adaptors

or 1x8 PLC Splitter

345mmx270mm

x95 mm

10 PCS

2 Inlet Port ( Cut or Uncut Port )

+24 Drop Cable Outlet Ports

17 KGS

710mmx360mm

x700mm
