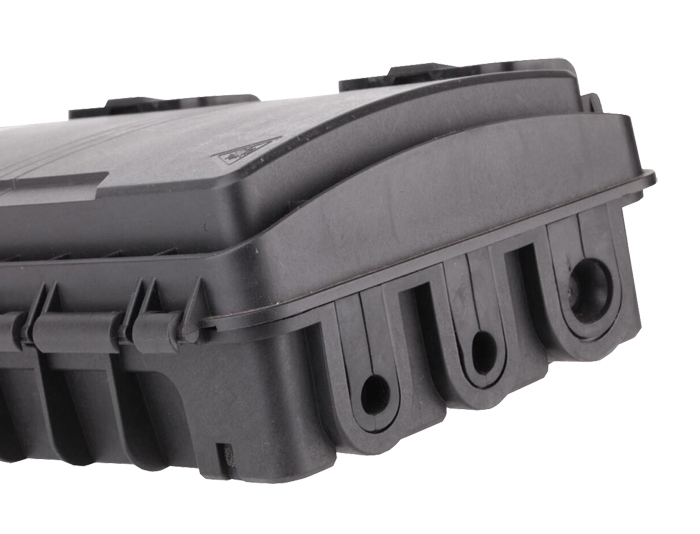

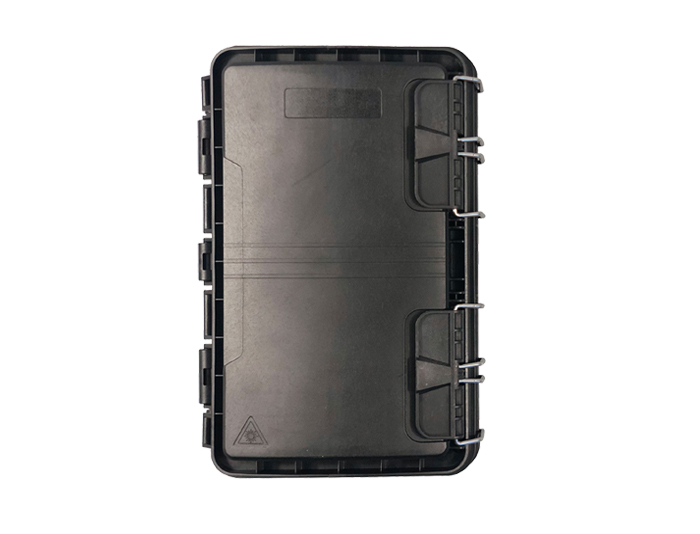

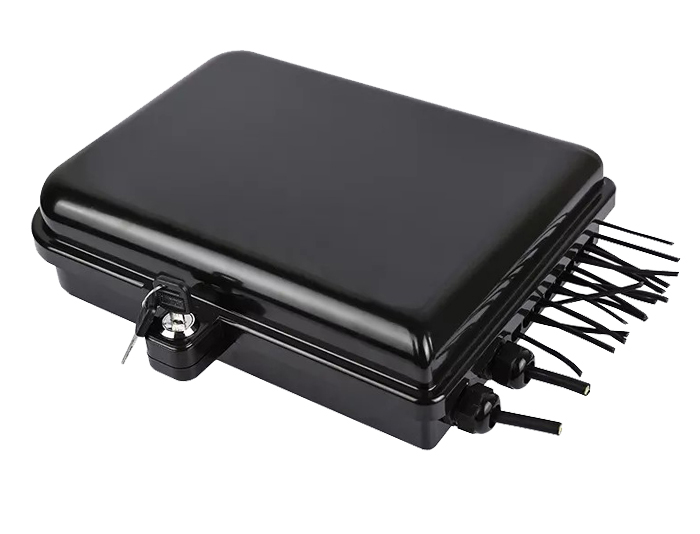

24 Cores FTTH Fiber Optic Splice Box F2E-506F-S

Publisher: MJADOM

Author: Andy


RGP-F2E-506F-S FTTH Drop Cable Type Fiber Optic Splice Box provides a high-density wall mounted & Aerial mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space.



Description:


RGP-F2E-506F-S FTTH Drop Cable Type Fiber Optic Splice Box provides a high density wall mounted & Aerial mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. The Fiber Optic Box Installation is normally installed in the way of wall mounting & Aerial mounting installation. Fiber Splice Box features with ruggedness, which is tested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures.


The Fiber Splice Box can be used for FTTx deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.



Feature:


Material: Modified P.P.

Sealing Structure: Mechanical Sealing.

Closure Seal Material: Thermoplastic rubber.

180-degree access with buckled lock structure

Dis-mountable adaptor panel, Support mid-span termination.

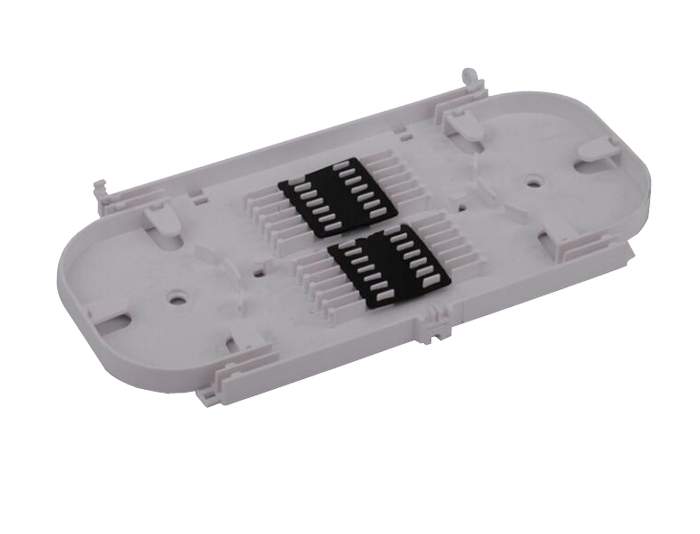

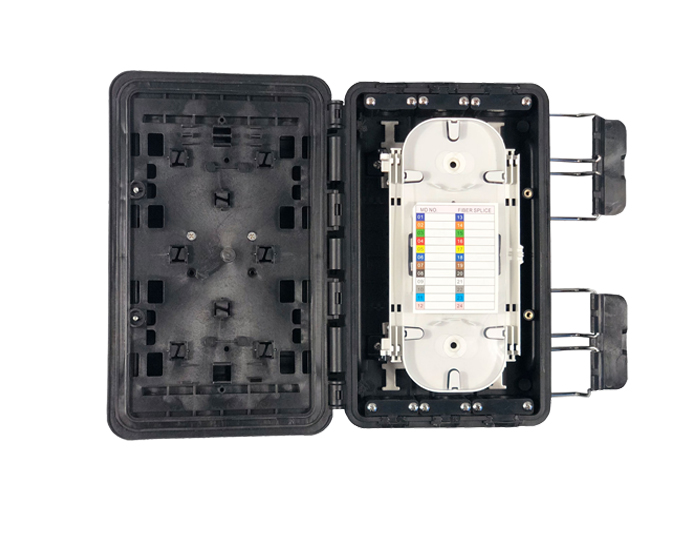

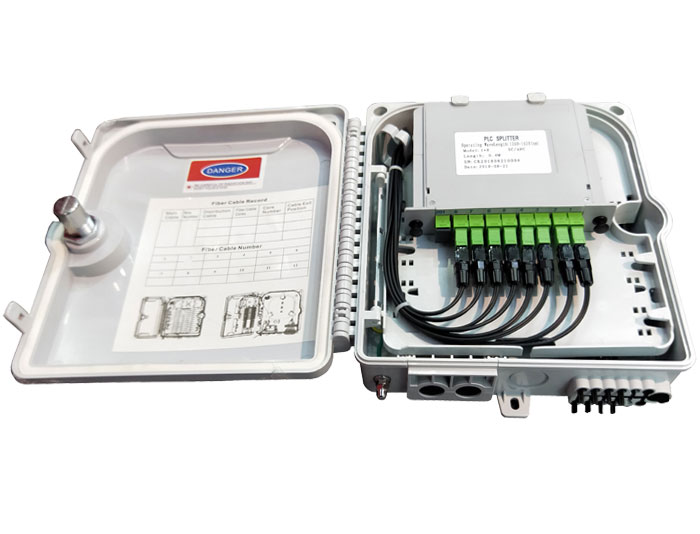

Rotatable and dis-mountable splice tray for easy splicing.

Integrated with flap-up splice cassette and cable management system.

Plug-and-play installation,easy for maintenance and expansion, Integrated with flap-up splice cassette and cable management system.



Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.

Compare with F2E-506F-L model, F2E-506F-S removed the 1x8 LGX Splitter upper layer, the lower layer can be installed 1 pc 24F splice trays, easy for future expansion and maintenance.

6 cable ports entrance, 2 for feeder cable (8-20mm) and 4 for branching cable (5-16mm) OR 2*3mm FTTH Drop Cable, 2*5mm Figure 8 FTTH Drop Cable.



Impact test:1K10. Pull Force:100N. Full Rugged design.

Support ADSS cable and self-support fiber cable.

Protection class: IP65.

RoHS compliance.



Applications :
Wall mounting & Aerial mounting installation.


Configuration

Standard Accessories:


ItemNameUsageQuantity
1Fiber Optic Splice Box CoverProtecting fiber cable splices in whole1 pc
2Fiber Optic Splice Box BottomProtecting fiber cable splices in whole1 pc
3Splice cassetteTo splice the fiber opticSame as capacity
4Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
5Nylon TieTo fix buffer tubes with fibers insideSame as capacity
6Grounding WireTo connect with grounding device1pc
7Abrasive ClothTo polish fiber optic cable1pc
8Labelling PaperTo label fibers1 set
9Buffer TubeTo protect fibers and be fixed on splice trays1pc
10Installation bolts and nutsTo fix splice cassette1 set


 Shipping Infomation:


SpecificationSizePcs/CartonWeight
Internal Carton Box290mmx180mmx120mm1 pc1.8 KGS
Outside Carton Box620mmx310mmx420mm20 pcs25 KGS



Order Information:


Model No.Spliced fiber storage capacitySize(mm)Height * diameterCable portsMax. diameter of cable(mm)Applicable Cable DiameterAdaptors
RGP-F2E-506F-S24 Fibers (1*24 Fibers )285mm*175 mm *58mm6 Round Port + 16 FTTH Drop Cable Outlet Ports6 cable ports entrance, 2 for feeder cable (8-20mm) ; 4 for branching cable (5-16mm)2*3mm FTTH Drop Cable, 2*5mm Figure 8 FTTH Drop Cable2 pc of 1*8 LGX PLC Splitter or 2 pcs of 1*8 Micro Fiber Splitter
