8 Core Fiber Splitter Distribution Box With LGX Splitter FDB-08J

Publisher: MJADOM

Author: Andy

RGP-FDB-08J 8 Core Fiber Splitter Distribution Box called Optical Splitter Box is used for connecting optical cable with various equipment in FTTX optical access network node. In FTTH application, it is applied to the second stage splitter point of the optical fiber network.


MJADOM provides 2 Core to 96 Core Fiber Termination Box or Fiber Optic Distribution Box is made of 70%PC+30%ABS, have a good of high-pressure resistance and corrosion resistance.


RGP-FDB-08J 8 Core Fiber Optic Distribution box is used for connecting optical cable with various equipment in FTTX optical access network node. In FTTH application, it is applied to the second stage splitter point of the optical fiber network. The optical cable can be connected by fusion or mechanical jointing method after introduction into the box. It is possible to realize cable termination, splitting and distribution function conveniently.


MJADOM provides 2 Core to 96 Core Fiber Termination Box or Fiber Optic Distribution Box is made of 70%PC+30%ABS, have a good of high-pressure resistance and corrosion resistance.



Can accommodate 1x8 Insert Splitter Box.

Offers spaces for splitters and up to 8 fusions.

Material: PC/ABS Alloy or Fire-Retardant ABS.

UV and weatherproof ; Up to 6 FTTH drops.

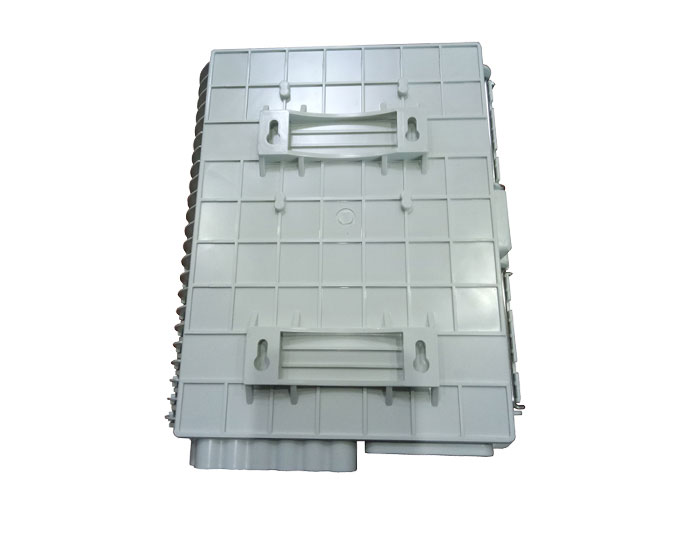

Wall and pole mountable, Grounding device included.

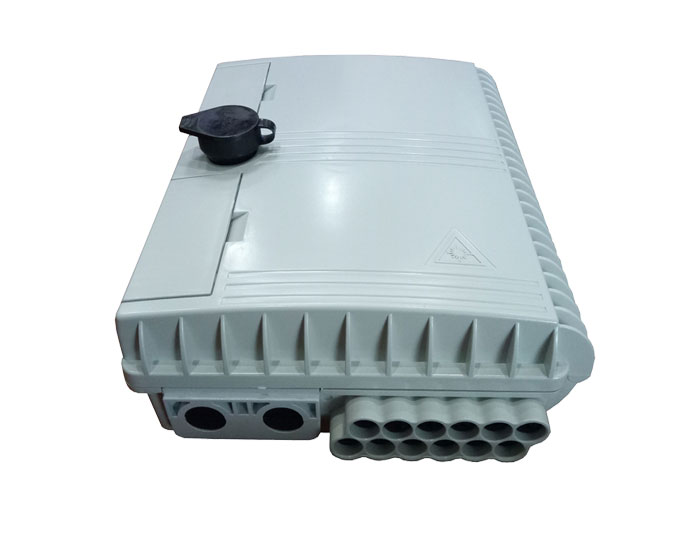

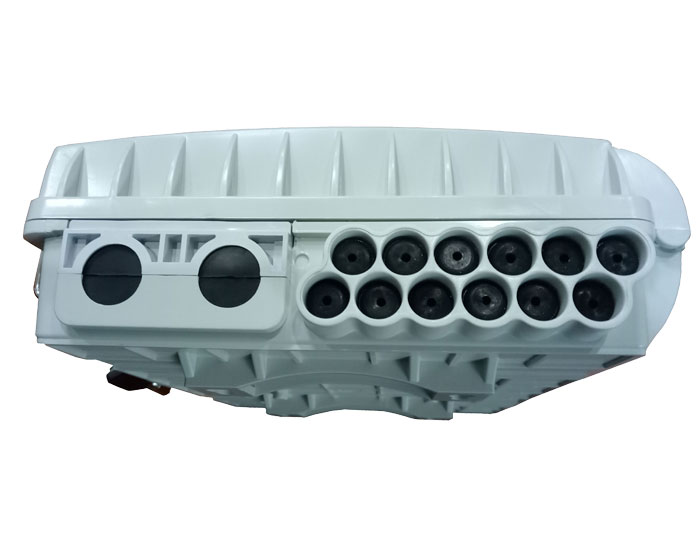

2 inlet ports( for cables with max diameter 12 mm), 8 outlet drop cable ports.

Suitable for used Uncut or Cut fiber optic cable.

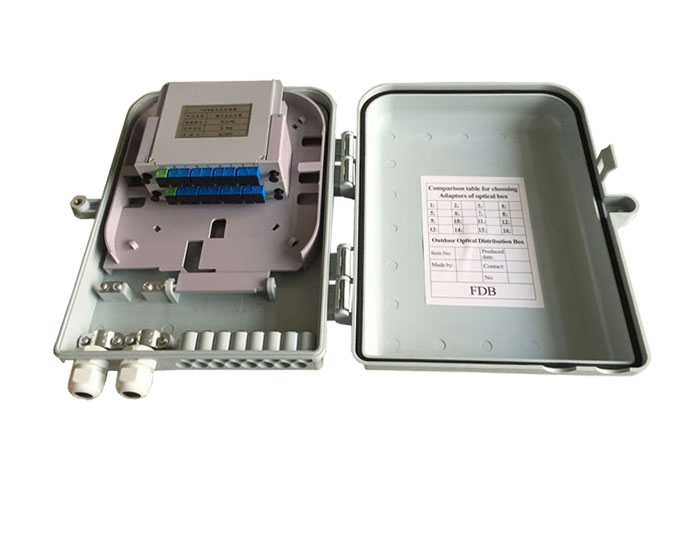

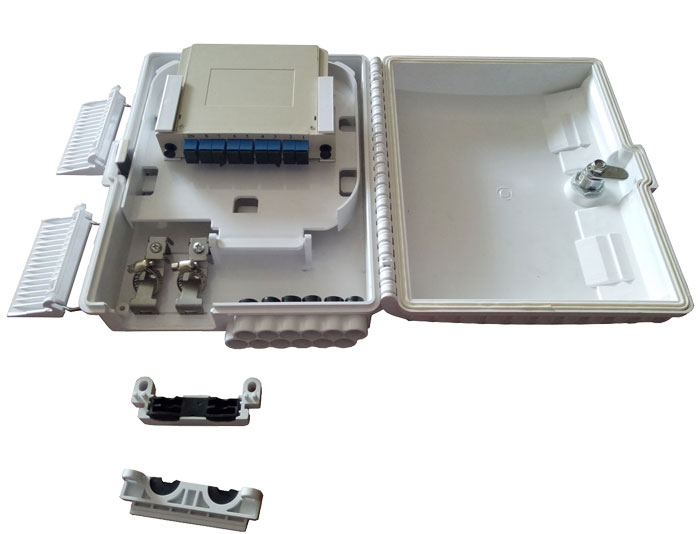

The box has two layers. The outer layer is composed with mounting unit for splitter and cable management parts.

The inner layer is equipped by splicing tray and cable storage unit for pass-through riser cable.



Turn-over structure, the layout is reasonable with splicing zone below and distribution zone above.

Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.

The mark is clear on each fiber connection and distribution.

The door opening angle is greater than 180 degree for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP65

RoHS compliance.


FTTH access network.

Telecommunication Networks.

CATV Networks.

Data communications Networks.

Local Area Networks.


Configuration

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
RGP-FDB-08J

8 Splices,

1x8 PLC Insert Splitter Box

250mmx190mm

x72 mm

20 PCS

1 Inlet for Uncut Port

+8 Drop Cable Outlet Ports

17.5 KGS

510mmx390mm

x370mm
