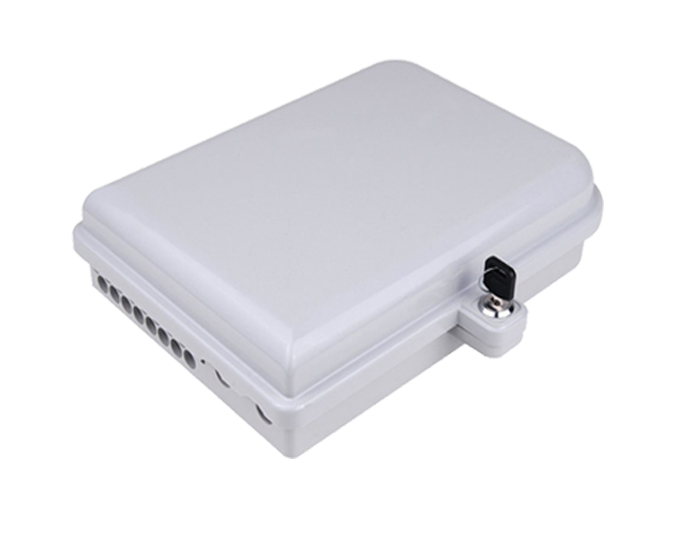

12 Core Outdoor Fibre Optic Distribution Box FDB-012C

Publisher: MJADOM

Author: Andy


RGP-FDB-012C 12 Core Fibre Optic Distribution Box are designed for use in both fibre-to-the-home and fibre-to-the-premises networks for point-to-point or PON network architectures.



Description:


RGP-FDB-012C 12 Core Fibre Optic Distribution Box are designed for use in both fibre-to-the-home and fibre-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.


The fiber box range includes strain relief systems for main cables or for customer drops suitable for multiple applications: aerial, residential, building basement, building riser. The distribution box may house fusion splices, mechanical splices or splitters.



Feature:


Can accommodate 1x12 SC/ LC Duplex Adaptor.

Material: PC/ABS Alloy.

UV and weatherproof; Up to 12 FTTH drops.

Wall and pole mountable.

2 inlet ports( for cables with max diameter 14 mm), 12 outlet drop cable ports.

Suitable for used uncut OR cut fiber optic cable.

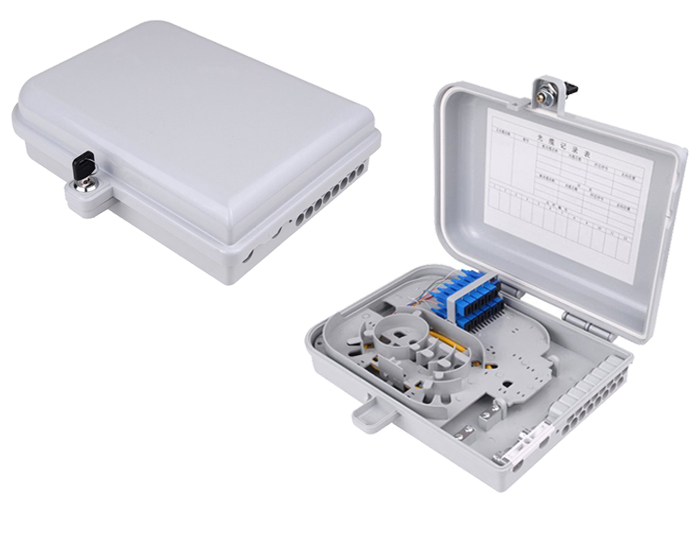

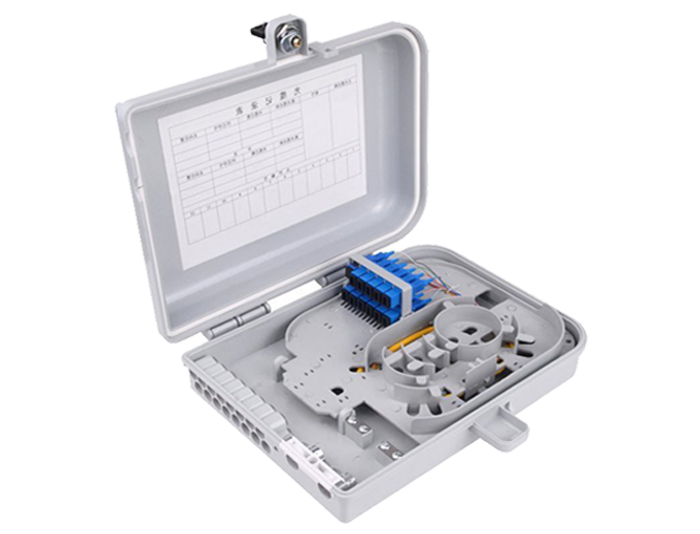

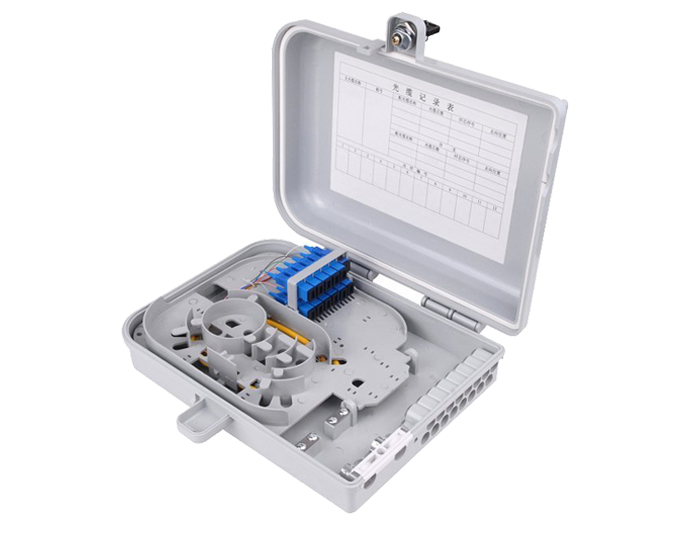

Turn-over structure and layout is reasonable with splicing zone below and distribution zone above.

Fiber route reasonable, the fiber bending radius at any place is greater than 30 mm.

The mark is clear on each fiber connection and distribution.



The door opening angle is greater than 180 degrees for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP65.

RoHS compliance.



Application:


FTTH access network.

Telecommunication Networks.

CATV Networks.

Data communications Networks.

Local Area Networks.


Configuration

Technical Specification:


MaterialPC+ABSDimension (W*H*D)302mmx269.5mmx94mmMax Splicing (Core)12
IP RateIP65Weight1.1kgAdapter12 pcs of SC
Insertion loss≤0.15dBUPC return loss≥50 dBAPC return loss≥60 dB
Working temperature-40℃~+85℃Relative humidity≤85%(+30℃)Atmospheric pressure70KPa~106 KPa
Max. diameter of cable(mm)1 uncut of port can support Φ8~14 mm; 12 ports for FTTH Figure8 drop cable.



Configuration :


ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
 RGP-FDB-012C

12 Splices,12 SC/LC Duplex adaptors

or 1*8 PLC Splitter

302mmx269.5mmX94mm 10 PCS2 Inlet Port ( Cut or Uncut Port )+12 Drop Cable Outlet Ports 12.7 KGS550mmx310mmX500mm
