12 Core Outdoor Fiber Distribution Box - Fiber Box FDB-012A2

Publisher: MJADOM

Author: Andy

RGP-FDB-012A2 MJADOM provides 2F to 96F Fiber Distribution Box called Fiber Optic Box can load SC Fiber Adapter, SC Fiber Optic Splitter, It's the ideal equipment between the optical node and terminal. It's designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures.


The Box can be pre-installed 1x8 Fiber Optic Splitter or 12 pcs SC Fiber Adapter.


RGP-FDB-012A2 12 Core Fibre Optic Distribution Boxes are designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, It's the ideal equipment between the optical node and terminal.


The range includes strain relief systems for main cables or for customer drops suitable for multiple applications: aerial, residential, building basement, building riser. The distribution boxes may house fusion splices, mechanical splices or splitters.

Can accommodate 1x12 SC/ LC Duplex Adaptor.

Material : PC/ABS Alloy or Fire-Retardant ABS .

UV and weather proof ; Up to 12 FTTH drops.

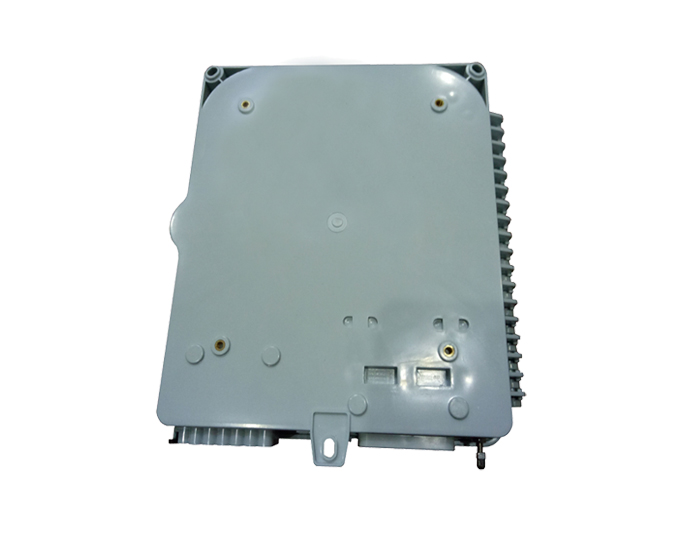

Wall and pole mountable, Grounding device included.

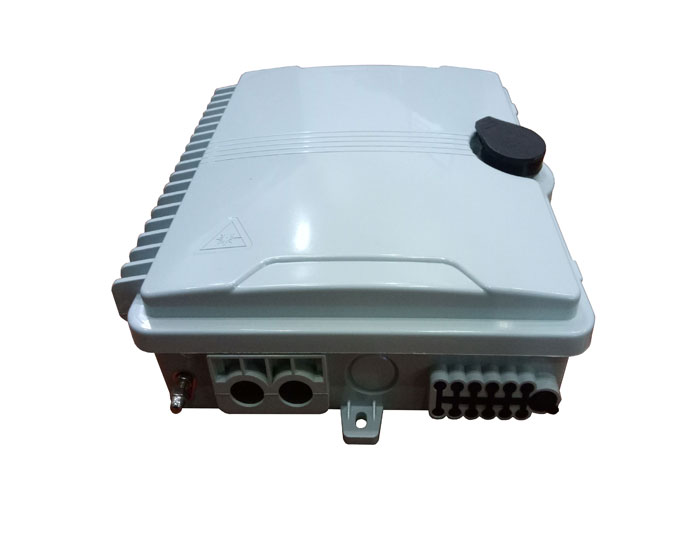

2 inlet ports( for cables with max diameter 14 mm), 12 outlet drop cable ports.

Suitable for used uncut OR cut fiber optic cable.

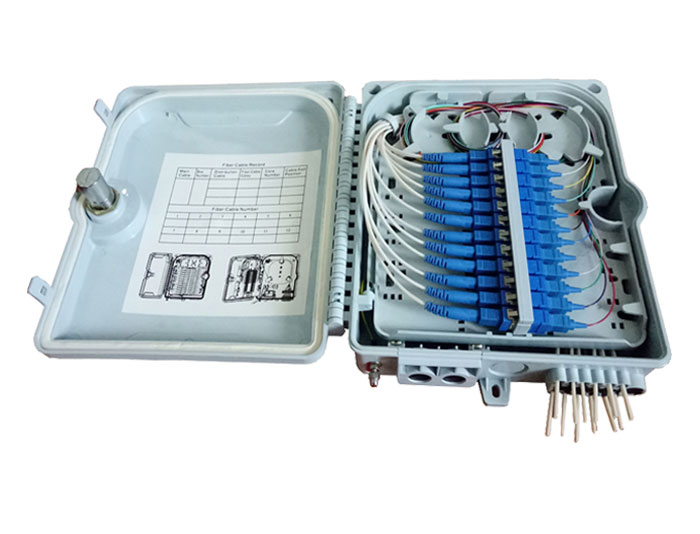

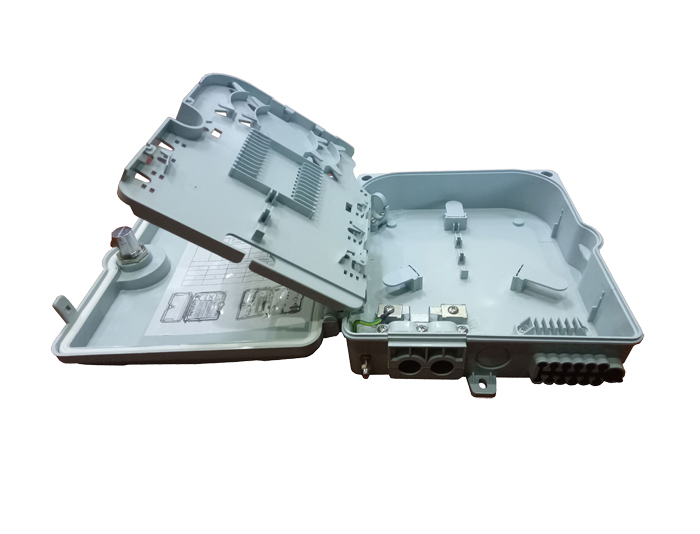

Turn-over structure, layout is reasonable with splicing zone below and distribution zone above.



Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.

The mark is clear on each fiber connection and distribution.

The door opening angle is greater than 180 degree for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP65.

RoHS compliance.


Application:

FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks.


Configuration

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
RGP-FDB-012A2

12 Splices,

12 SC/LC Duplex adaptors

or 1x8 PLC Splitter

225mmx200mm

x65 mm

16 PCS

2 Inlet Port ( Cut or Uncut Port )

+12 Drop Cable Outlet Ports

15 KGS

490mmx460mm

x330mm

Related Products

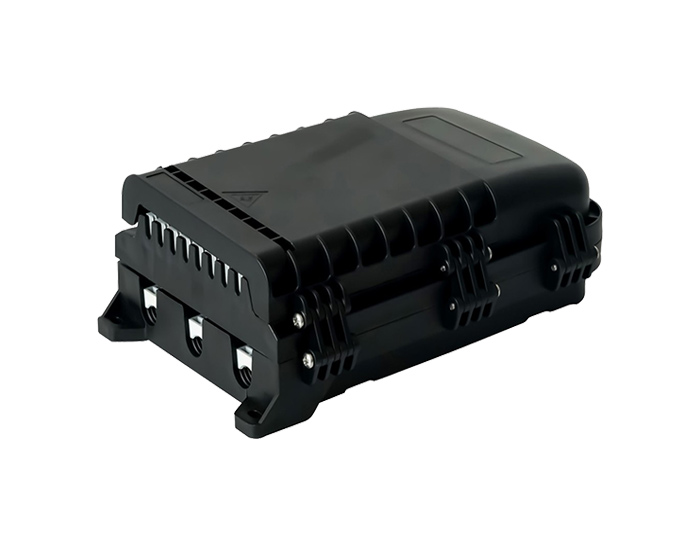

8 Core Outdoor FTTH Fiber Termination Box F2E-601-8C
