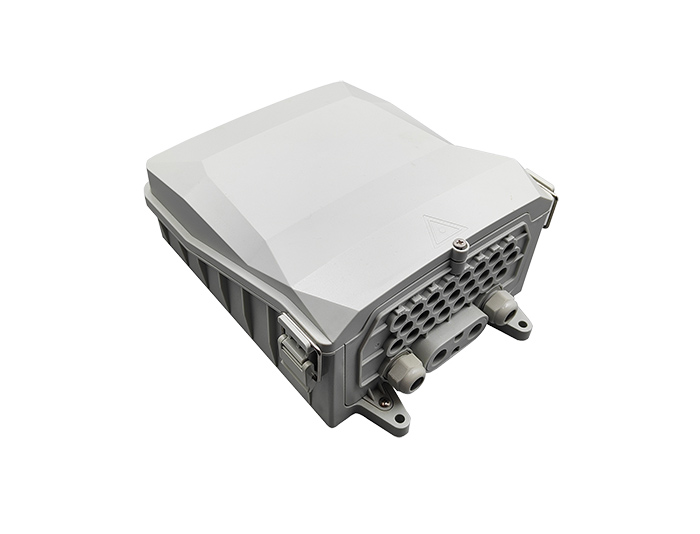

24 Cores Outdoor Fibre Nap Boxes FDB-024H

Publisher: MJADOM

Author: Andy

RGP-FDB-024H  24 Cores Outdoor Fibre Nap Box are designed use in for both fibre-to-the-home and fibre-to-the-premises networks for point-to-point or PON network architectures.

Description :

RGP-FDB-024H  24 Cores Outdoor Fibre Nap Box are designed use in for both fibre-to-the-home and fibre-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables. The fiber nap provide splicing, splitting, and distribution can be done in the nap box, and meanwhile, The Nap Boxes provides solid protection and management for the FTTx network building. Multiple applications: aerial, residential, building basement, and building riser.


Feature:

Total enclosed structure.

Complete opening of the hinges with stop included.

Material: PC/ABS, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

Clamping for feeder cable and drop cable; fiber splicing, fixation, storage, distribution...etc all in one.

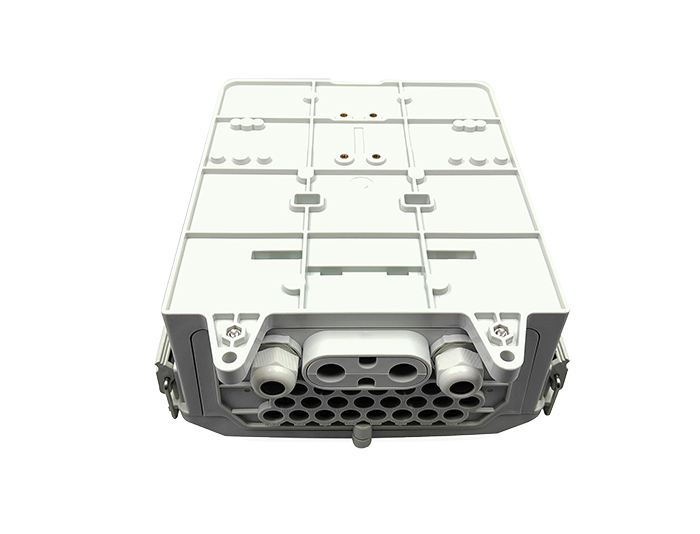

1 uncut cable port for feeder cables.

Fixed hermetic seals in all its grooves

The entire fiber route protected by transport tube.

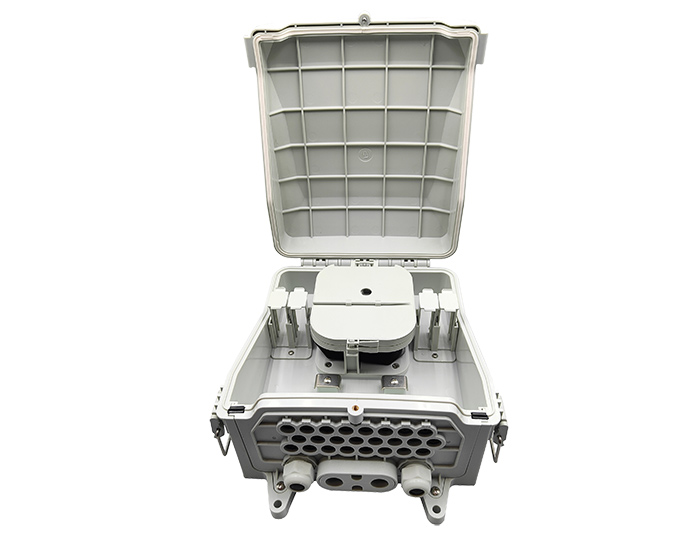

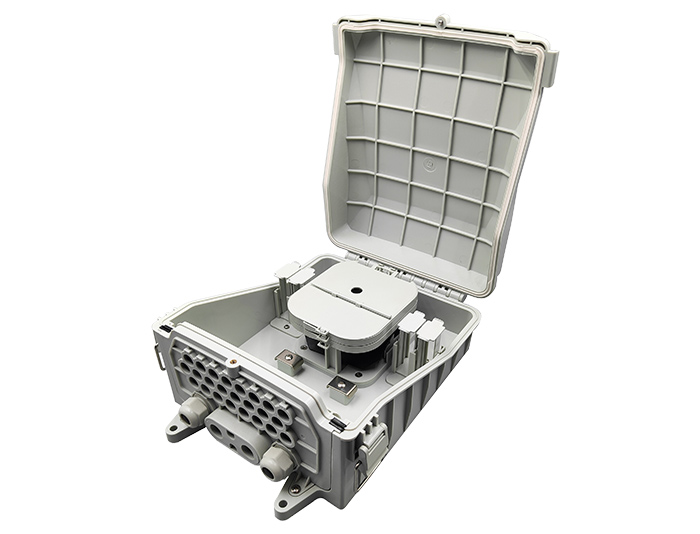

Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.

Suitable for bunchy fibers, Aerial, and Wall-mounting.

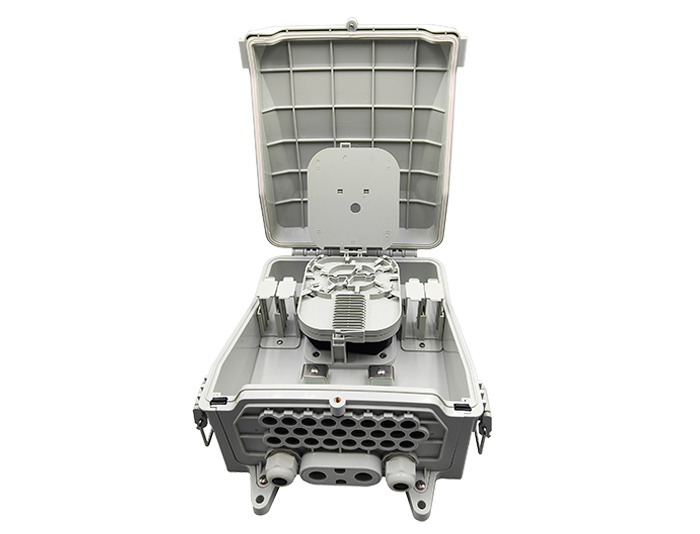

Plug-and-play installation, easy for maintenance and expansion, Integrated with flap-up splice cassette and cable management system.

Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.


Applications:
Aerial mounting & Pole mounting.


Configuration

Configuration:

ModelRGP-FDB-024HSizeH×W×D = 306×237×116 (MM)
MaterialPC/ABSColorBlack/White/Gray(Customizable)
Splice Capacity24 CoresSplitter Capacity2 Sets
Splitter TypeSC, Mini Type, 1X2 / 1X4 / 1X8Adapter TypeSC/APC
Adaptor Capacity24 pcsInlet Cable Port2x(Φ10~14mm), 1x Mid-span 10~14mm
Drop Cable Port24 PortsInstallation MethodWall, Pole Mounted
Operating temperature-10~+70℃Life time25 years

 Standard Accessories:

ItemNameUsageQuantity
1Splice cassetteTo splice the fiber opticSame as capacity
2Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
3Nylon TieTo fix buffer tubes with fibers insideSame as capacity
4Grounding WireTo connect with grounding device1pc
5Abrasive ClothTo polish fiber optic cable1pc
6Labelling PaperTo label fibers1 set
7Buffer TubeTo protect fibers and be fixed on splice trays1pc
8Installation bolts and nutsTo fix splice cassette1 set

Shipping Information:

SpecificationSizePcs/CartonWeight
Internal Carton Box310mmx240mmx120mm1 pc1.6 KGS
Outside Carton Box770mmx520mmx340mm10 pcs16 KGS

Order Information :

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
 RGP-FDB-024H 24 Splices,16 SC adaptors or 2 pcs 1x8 PLC Splitter306mmx237mmX116 mm 10 PCS2x(Φ10~14mm), 1x Mid-span 10~14mm ( Uncut Port ) + 16 Drop Cable Outlet Ports 16 KGS520mmx340mmx770mm
