Description :
RGP-FDB-08J 8 Core Fiber Optic Termination box is used for connecting optical cable with various equipment in FTTX optical access network node. In FTTH application, Fiber Termination Box is applied to the second stage splitter point of the optical fiber network. The optical cable can be connected by fusion or mechanical jointing method after introduction into the box. The Fiber Terminal Box is possible to realize cable termination, splitting and distribution function conveniently.
Feature:
Can accommodate 1x8 Insert Splitter Box.
Offers spaces for splitters and up to 8 fusions.
Material : Modified P.P .
UV and weather proof ; Up to 8 FTTH drops.
Aerial & Pole and Wall mountable.

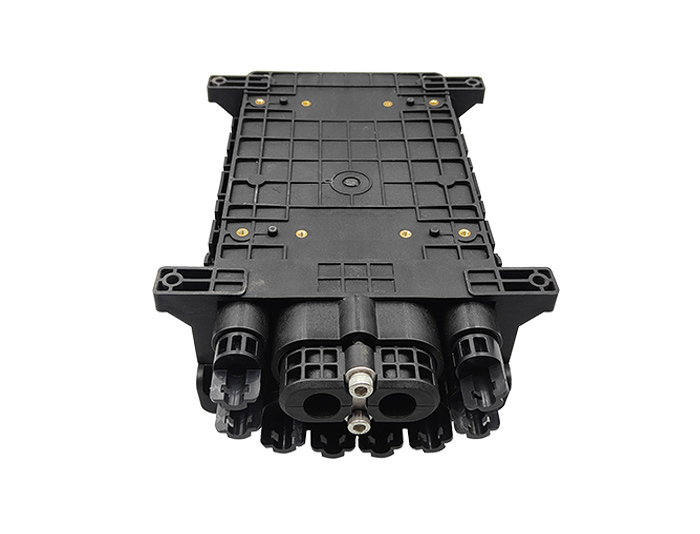

1 Mid-Span port( for cables with max diameter 13 mm), 8 outlet drop cable ports for 2*3mm FTTH Drop Cable or 5mm armored cable.
Suitable for used uncut fiber optic cable.

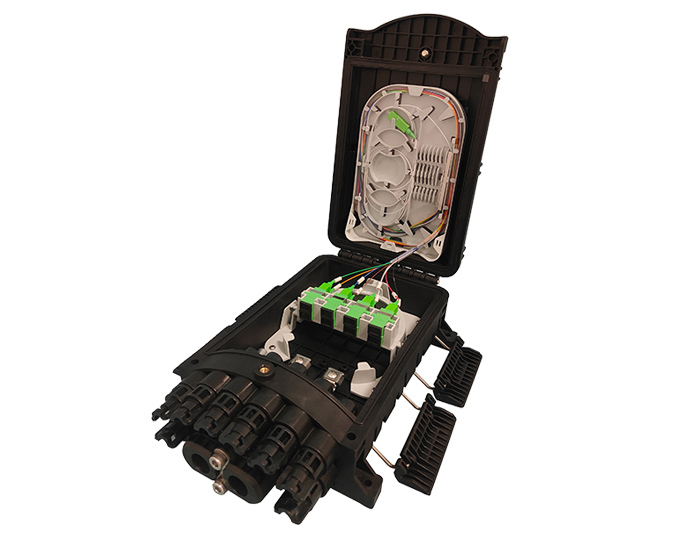

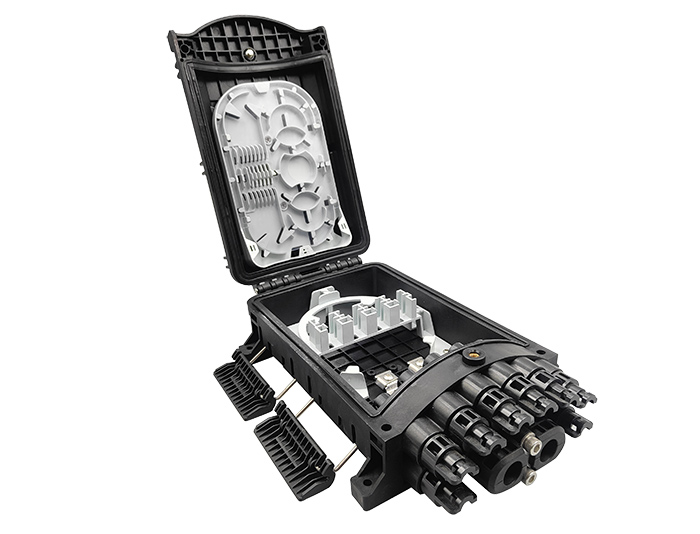

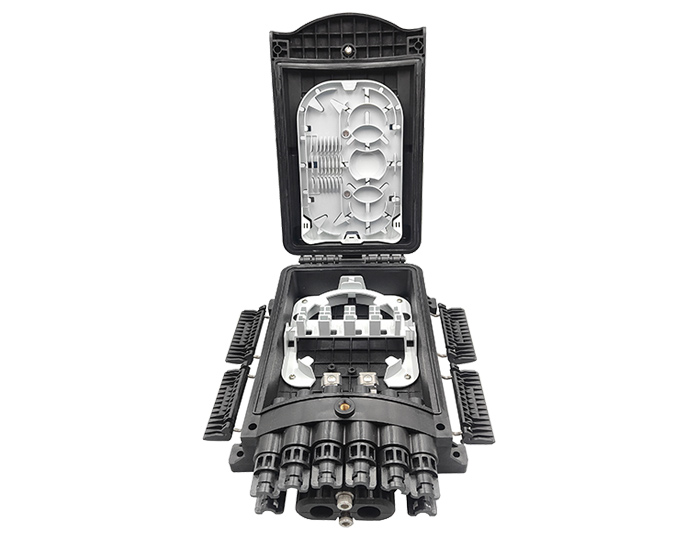

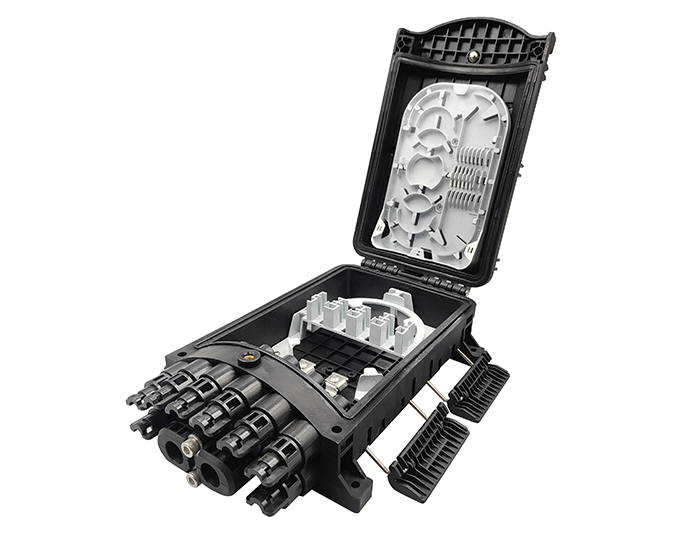

The optical fiber terminal box has two layers. The outer layer is composed with mounting unit for splitter and cable management parts. The inner layer is equipped by splicing tray and cable storage unit for pass-through riser cable.
Turn-over structure, layout is reasonable with splicing zone below and distribution zone above.
Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.
The mark is clear on each fiber connection and distribution.
The door opening angle is greater than 180 degree for easy operation and maintenance.
The redundant fiber is wound and protected.
Protection class: IP68.
Applications:
Aerial & Pole and Wall mounting.
