16 Core Fibre Optic Distribution Box - Fiber Optic Box Outdoor FDB-016A

Publisher: MJADOM

Author: Andy

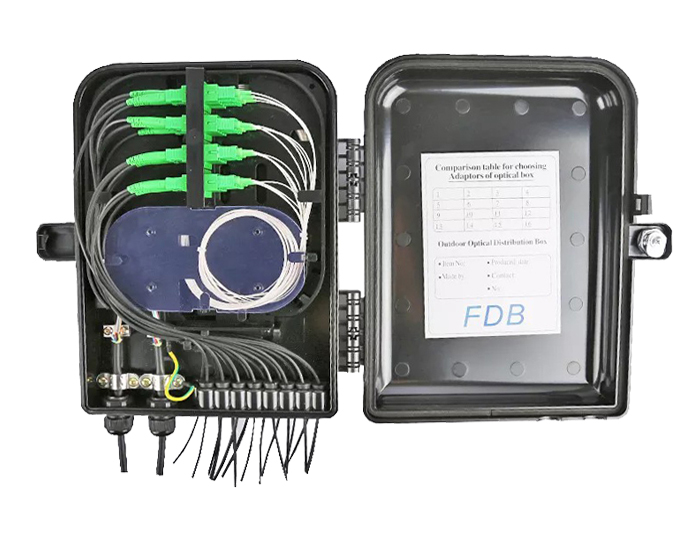

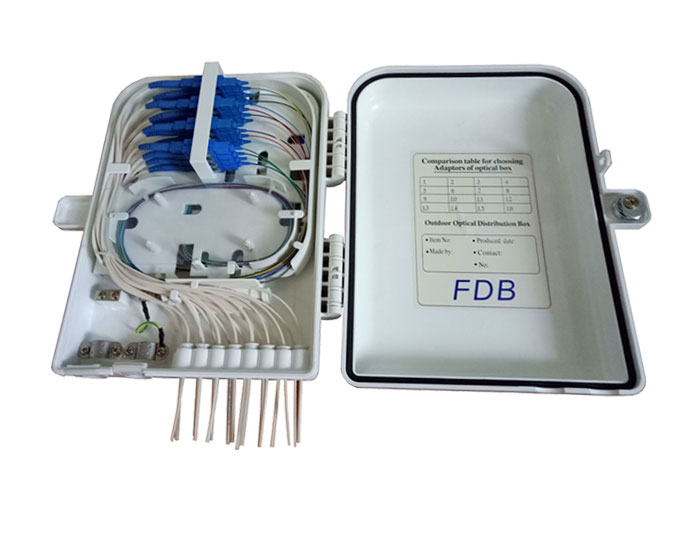

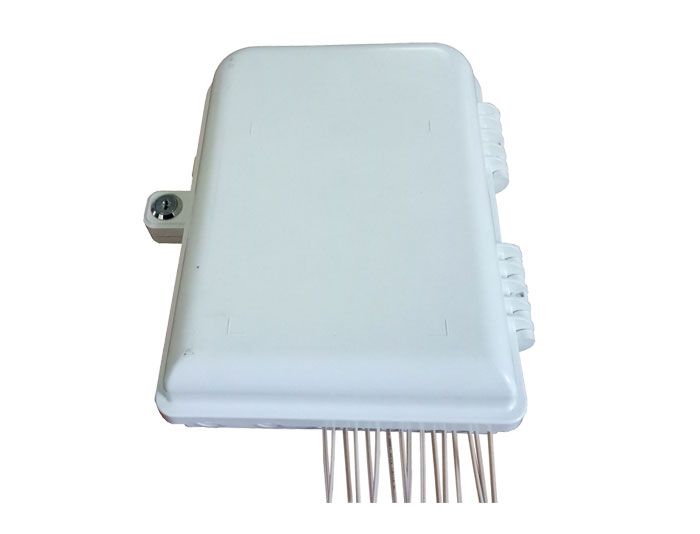

FDB box

RGP-FDB-016A Fibre Optic Distribution Box (FDB box) is designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.


 The New design box easy to pre-install the cable, PLC Splitter, and fiber adapter, saving time and energy.

The FDB  is used to protect the area of the riser cable where the window has been cut to pull out fibers and the riser cable connectors linking them to the subscriber cables.

It integrates fiber splicing, splitting, distribution, storage, and cable connection in one solid protection box.


The body of the box is made of 70%PC+30%ABS alloy material, It's good for high-pressure resistance and corrosion resistance.


The range of FDB includes strain relief systems for main cables or for customer drops suitable for multiple applications: aerial, residential, building basement, and building riser. The distribution boxes may house fusion splices, mechanical splices, or splitters.

FDB Can accommodate 1x16 SC/ LC Duplex Adaptor.

Material: PC/ABS Alloy or Fire-Retardant ABS.

UV and weatherproof; Up to 16 FTTH drops.

Wall and pole mountable.

2 inlet ports (for cables with a max diameter of 14 mm), and 16 outlet drop cable ports.

Suitable for used uncut OR cut fiber optic cable.

Turn-over structure and layout are reasonable with the splicing zone below and distribution zone above.



Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.

The mark is clear on each fiber connection and distribution.

The door opening angle is greater than 180 degrees for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP65

RoHS compliance.


FDB is used as followed:

FTTH access network.

Telecommunication Networks.

CATV Networks.

Data communications Networks.

Local Area Networks.

Configuration

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
RGP-FDB-016A

16 Splices,

16 SC/LC Duplex adaptors

or 1x8 PLC Splitter

320mmx260mm

x95 mm

10 PCS

2 Inlet Port ( Cut or Uncut Port )

+16 Drop Cable Outlet Ports

15.7 KGS

520mmx320mm

x490mm
