Description:

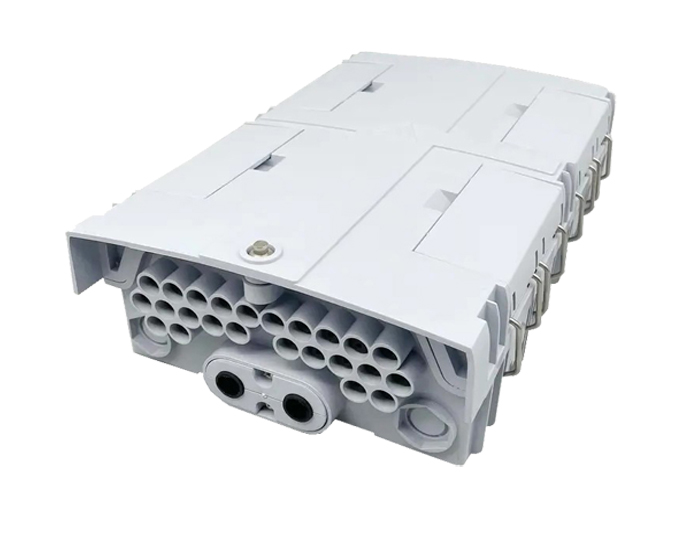

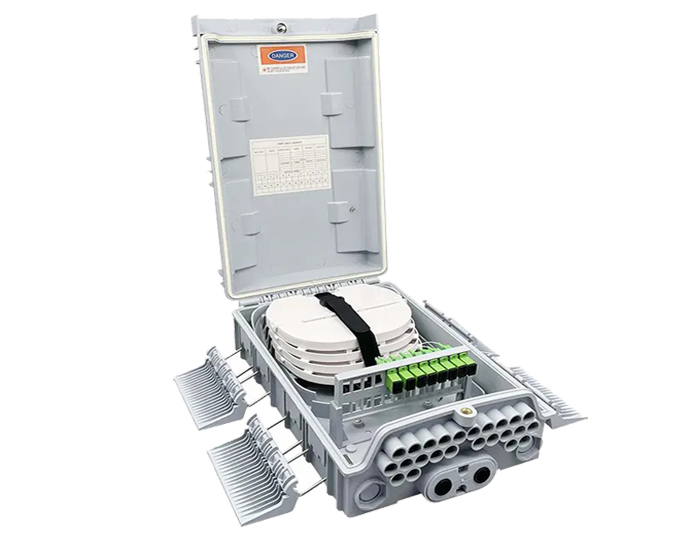

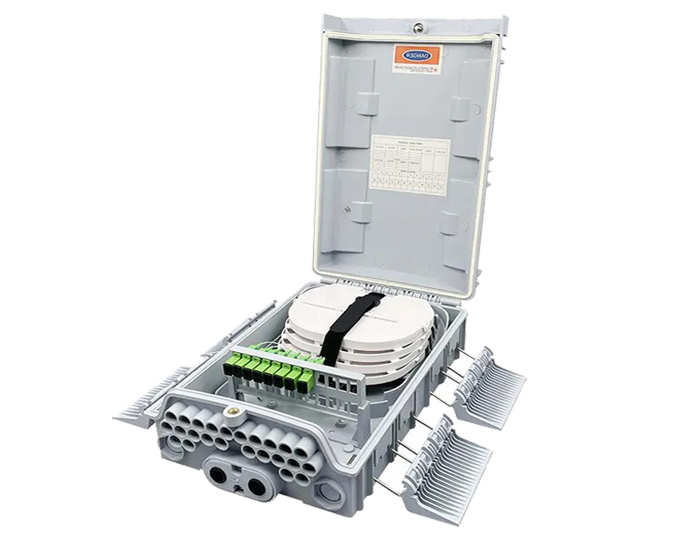

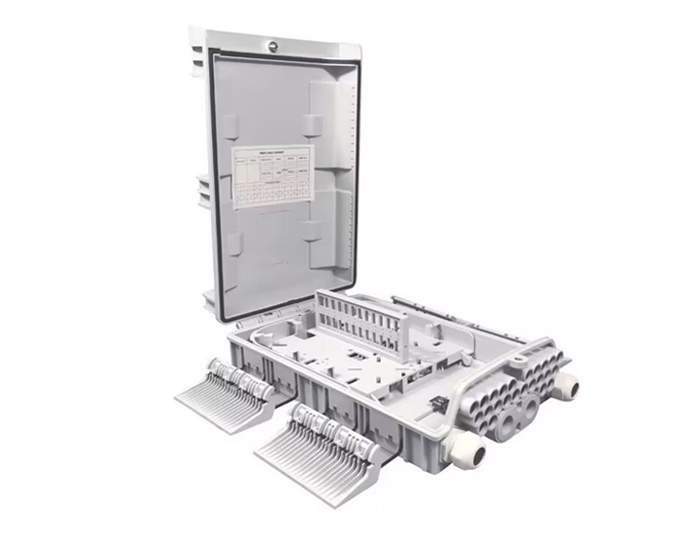

RGP-FDB-024G 24 Core Outdoor Fiber Termination Box provide fiber optic cable management could be able to hold up to 24 subscribers. It is used as a termination point for the feeder cable to connect and drop cable at the user access point in fiber optic network. The Outdoor Fiber Termination Box integrates with flap-up fiber splicing, splitting, distribution, storage and distribution. Have wall mounting and pole mounting installation.
The FTTH Termination Box range includes strain relief systems for main cables or for customer drops suitable for multiple applications: aerial, residential, building basement, building riser. The fiber box may house fusion splices, mechanical splices or splitters.
Feature:
Material : PC+ABS plastic alloy.
Water-proof design ; Protection level up to IP65.

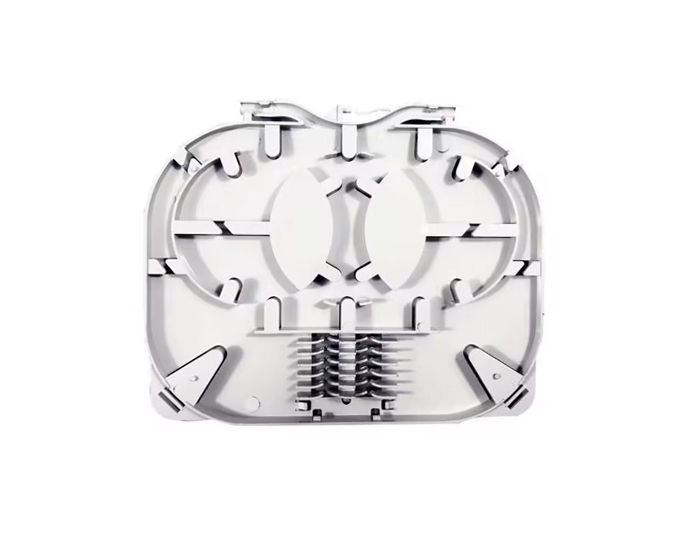

Integrated with flap-up splice cassette and optical adapter holder.
Suitable for the fusion splice or mechanical splice.
Mechanical sealing structure and mid-span cable entry.
Maximum 120F splice capacity,stainless anti-rust bolts and nuts.
Plug-and-play installation,easy for maintenance and expansion.
Fiber bend radius control more than 40mm.
180 degree access with buckled lock structure.
1*8 Micro Splitter can be installed in each splice tray as option.
1 mid-span cable entrance(Φ10-17.5mm)for uncut cable and 2 branch ports for distribution cable(Φ10-17.5mm),24 pcs of 2*3mm indoor FTTH drop cable an outdoor4-7mm figure-8 self-supporting drop cable for SC.
RoHS compliance.
Application:
FTTH access network.
Telecommunication Networks.
CATV Networks.
Data communications Networks.
Local Area Networks.
