Description:
RGP-FDB-016H 16 Core Optical Fiber Terminal Box are designed use in for both fibre-to-the-home and fibre-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.
The fiber box provides splicing, splitting, and distribution can be done in this box, and meanwhile, it provides solid protection and management for the FTTx network building. Multiple applications: aerial, residential, building basement, and building riser.
Feature:

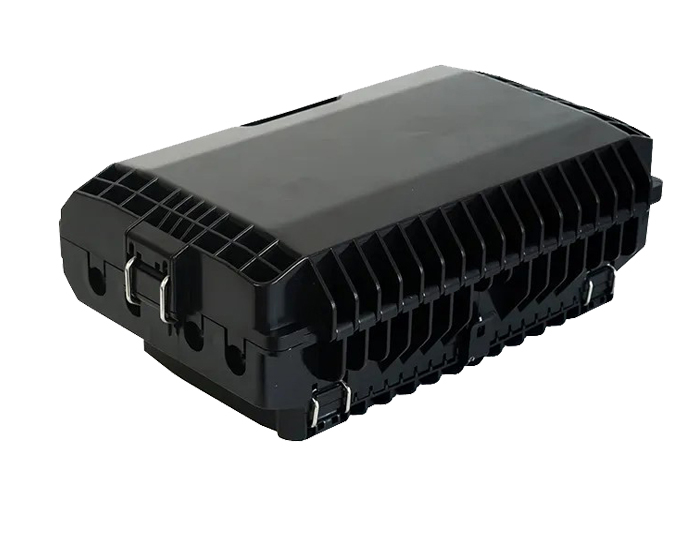

Total enclosed structure.
Material: PC, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
Clamping for feeder cable and drop cable; fiber splicing, fixation, storage, distribution...etc all in one.
Distribution panel can be flipped up, feeder cable can be placed by expression port, easy for maintenance and installation.
Suitable for bunchy fibers, Aerial, and Wall-mounting.

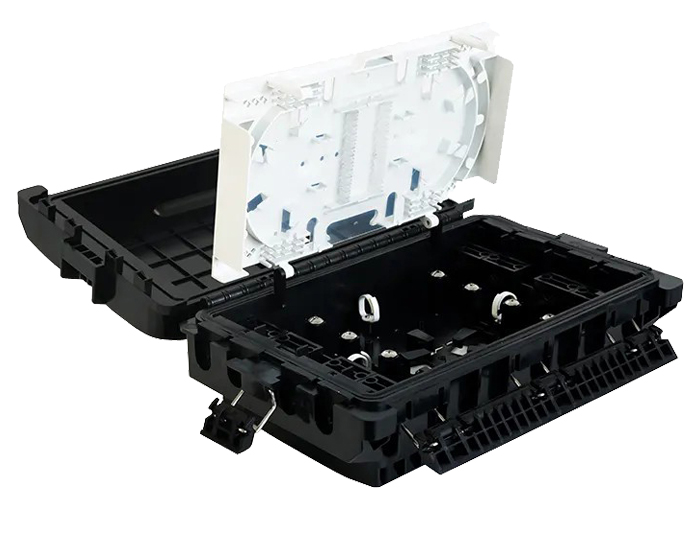

Plug-and-play installation, easy for maintenance and expansion, Integrated with flap-up splice cassette and cable management system.
Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.

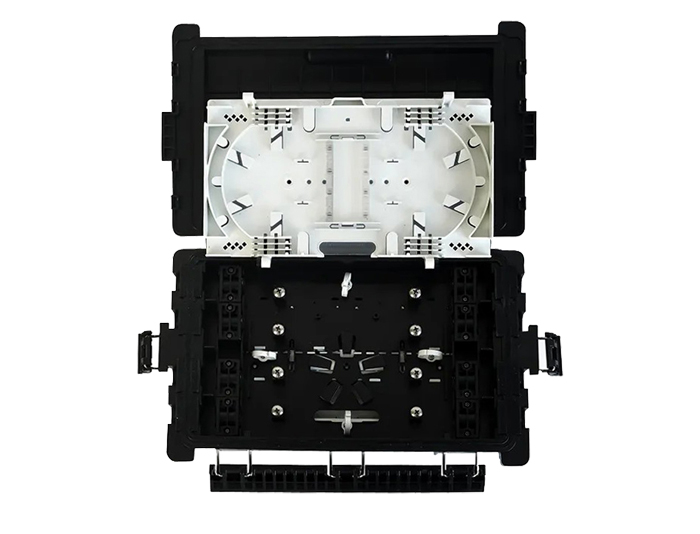

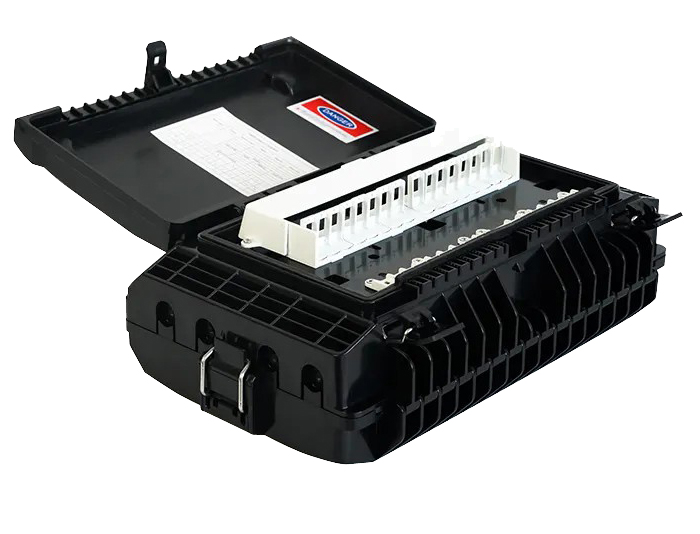

2 layers structure, the upper layer can install 16 pcs SC Fiber Adapter, and the lower layer can install 1 pc 24F splice trays, pre-install 2 pcs 1x8 PLC Splitter, easy for future expansion and maintenance.
4 cable ports entrance, for feeder cable (8-12mm), 16 ports for 2*3mm FTTH Drop Cable, 2*5mm Figure 8 FTTH Drop Cable.
Application:
FTTH access network.
Telecommunication Networks.
CATV Networks.
Data communications Networks.
Local Area Networks.
