Description:

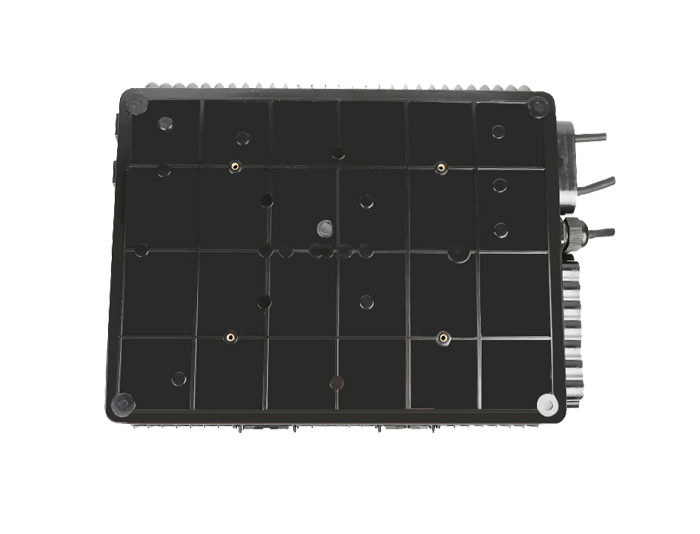

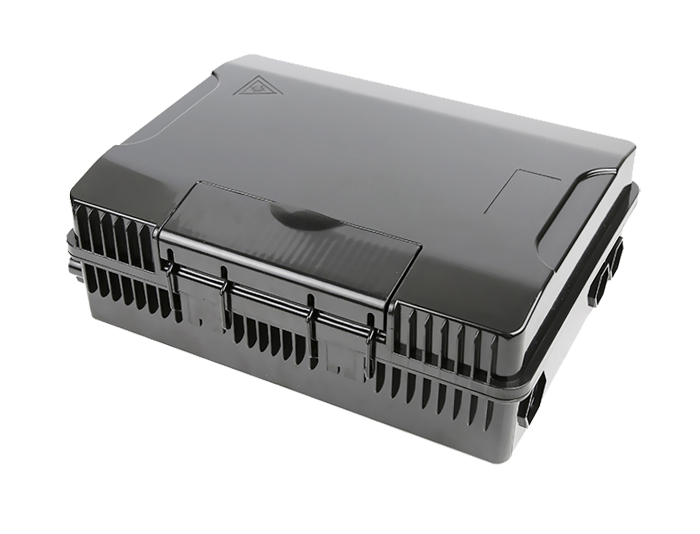

RGP-FDB-024F 24 Core Outdoor Fiber Termination Box are designed for use in both fibre-to-the-home and fibre-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.
The Fiber Termination Box range includes strain relief systems for main cables or for customer drops suitable for multiple applications: aerial, residential, building basement, building riser. The fiber box may house fusion splices, mechanical splices or splitters.
Feature:
Can accommodate 1x24 SC/ LC Duplex Adaptor.
Material : PC/ABS Alloy or Fire-Retardant ABS .
UV and weather proof ; Up to 24 FTTH drops.
Wall and pole mountable, Grounding device included.

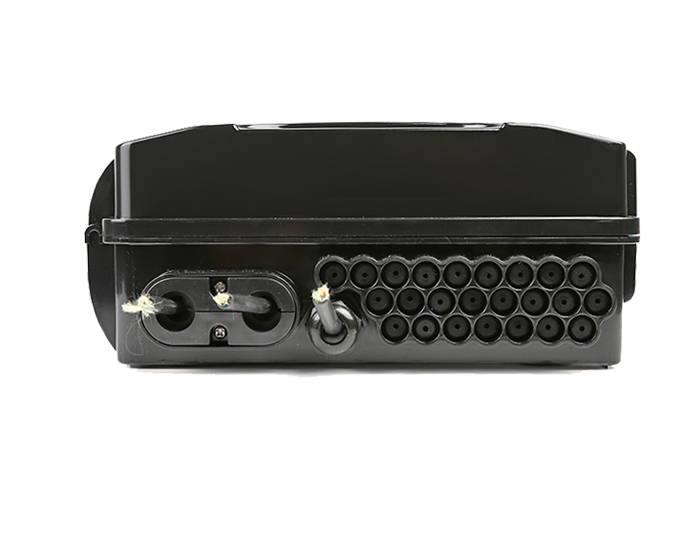

3 inlet ports( for cables with max diameter 21 mm), 24 outlet drop cable ports.
Suitable for used uncut OR cut fiber optic cable.

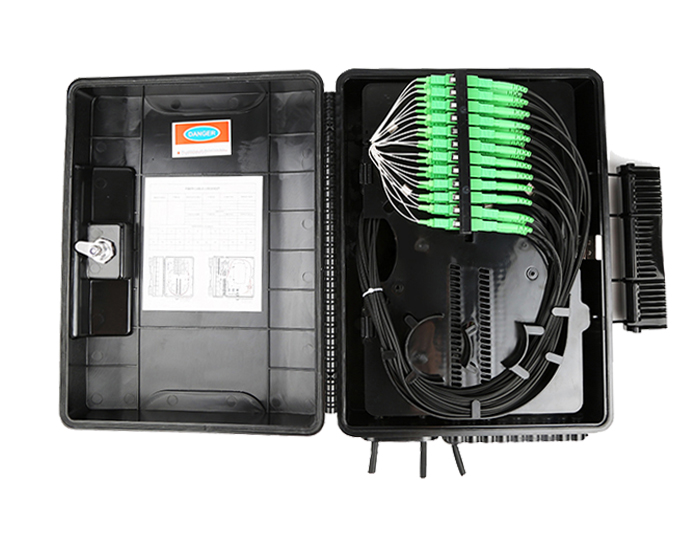

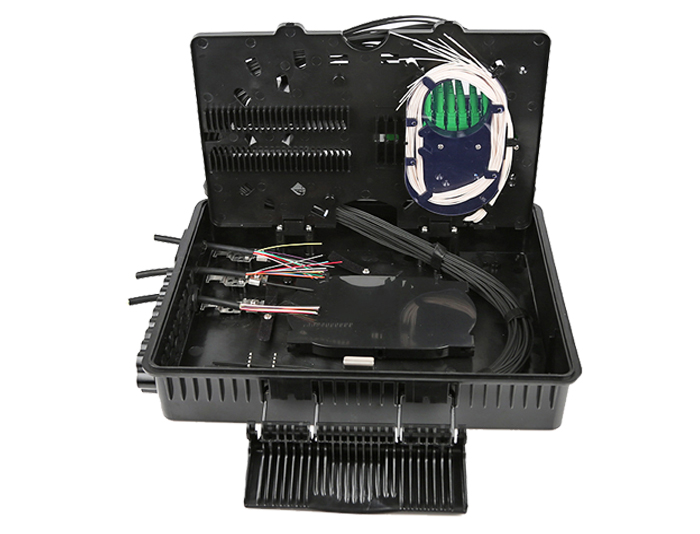

Turn-over structure, layout is reasonable with splicing zone below and distribution zone above.
Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.
The mark is clear on each fiber connection and distribution.
The door opening angle is greater than 180 degree for easy operation and maintenance.
The redundant fiber is wound and protected. .
Protection class: IP65.
RoHS compliance.
Application:
FTTH access network.
Telecommunication Networks.
CATV Networks.
Data communications Networks.
Local Area Networks.
