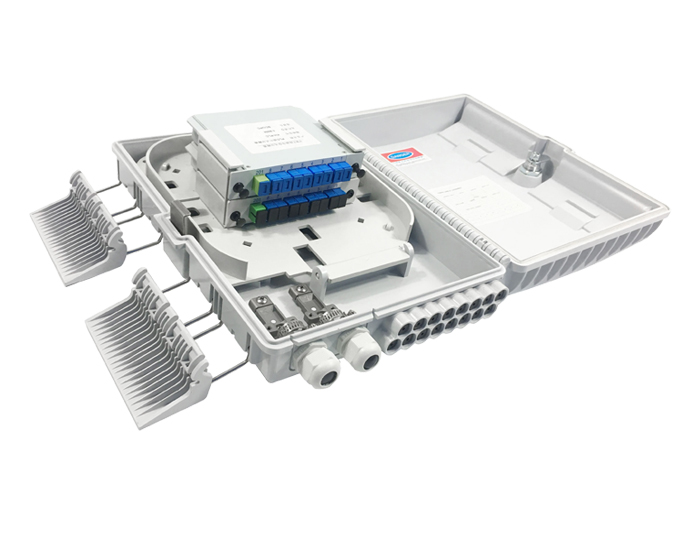

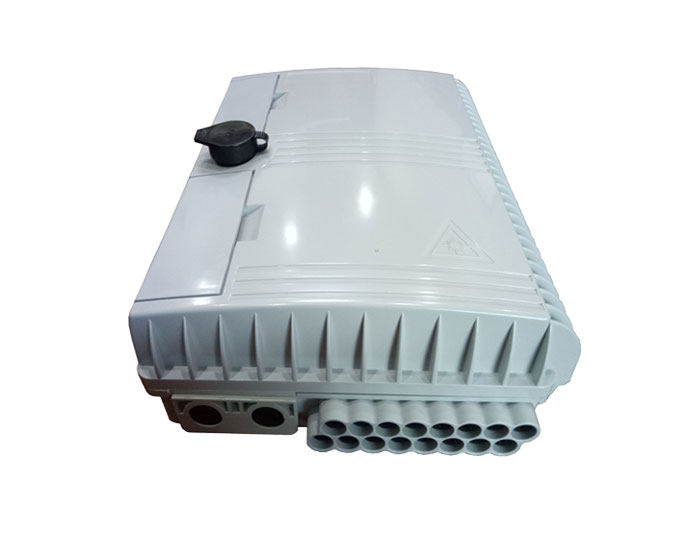

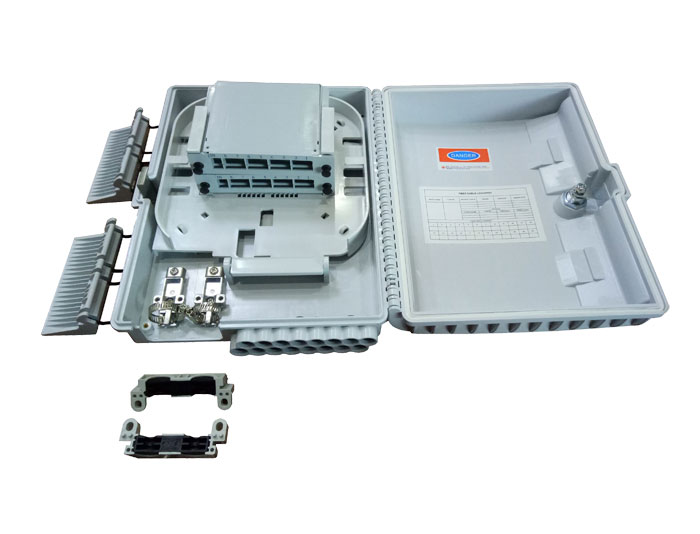

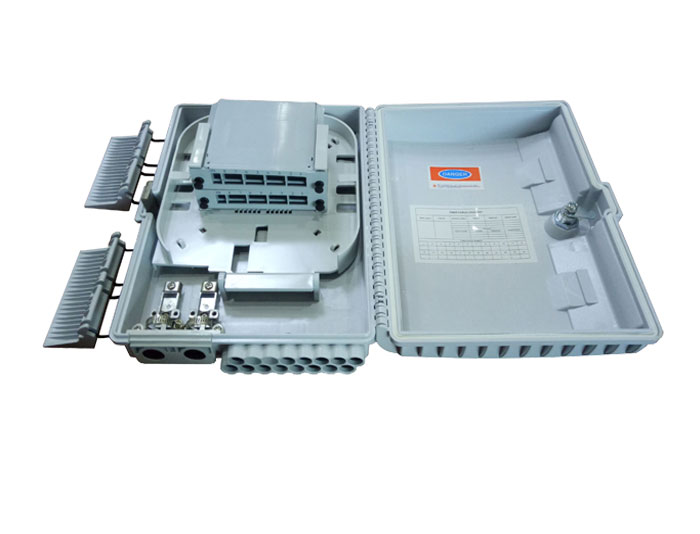

16 Core Outdoor Fiber Splitter Box with LGX Splitter FDB-016G

Publisher: MJADOM

Author: Andy

RGP-FDB-016G Optical Splitter Box called Fiber Splitter Box is used for connecting optical cable with various equipment in FTTX optical access network node. The New design box can pre-install 1x8 or 1x16 LGX Splitter and can easy to pre-install the cable, PLC Splitter, and fiber adapter, save time and energy.


The body of the box is made of 70%PC+30%ABS alloy material, It's a good of high-pressure resistance and corrosion resistance.



RGP-FDB-016G Optical Splitter Box also called Fiber Splitter Box is used for connecting optical cable with various equipment in FTTX optical access network node. In FTTH application, it is applied to the second stage splitter point of the optical fiber network. The optical cable can be connected by fusion or mechanical jointing method after introduction into the box. It is possible to realize cable termination, splitting and distribution function conveniently.

Can accommodate 1x16 Insert Splitter Box.

Material: PC/ABS Alloy or Fire-Retardant ABS.

UV and weather proof ; Up to 16 FTTH drops.

Wall and pole mountable.

2 inlet ports( for cables with max diameter 14 mm), 16 outlet drop cable ports.

Suitable for used uncut OR cut fiber optic cable.

Optical fiber distribution and splitting box are composed by cabinet body, splicing tray, splitting module and accessories.



The box has two layers. The outer layer is composed with mounting unit for splitter and cable.

management parts. The inner layer is equipped by splicing tray and cable storage unit for pass-through riser cable.



Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.

The mark is clear on each fiber connection and distribution.

The door opening angle is greater than 180 degrees for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP65

RoHS compliance.

FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks.

Configuration

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
RGP-FDB-016G

16 Splices,

1x16 PLC Insert Splitter Box

295mmx220mm

x85 mm

10 PCS

2 Inlet Port ( Cut or Uncut Port )

+16 Drop Cable Outlet Ports

15.7 KGS

450mmx320mm

x450mm

Related Products

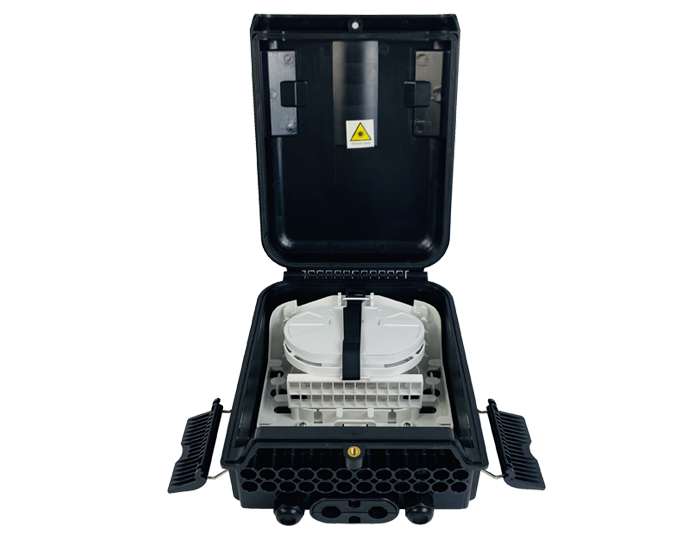

16 Core Outdoor IP65 FTTH Optical Fiber Terminal Box F2E-601-16H
16 Core Outdoor IP65 FTTH Optical Fiber Terminal Box F2E-601-16H

RGP-F2E-601-16H Optical Fiber Terminal Box design to protect joints of optical cable can hold up to 16 subscribers. it's made of Modified P.P+GF and the tray is 100% New ABS, which has high-pressure resistance and corrosion resistance. Available for 2 trays and each tray can splice 24 fibers.

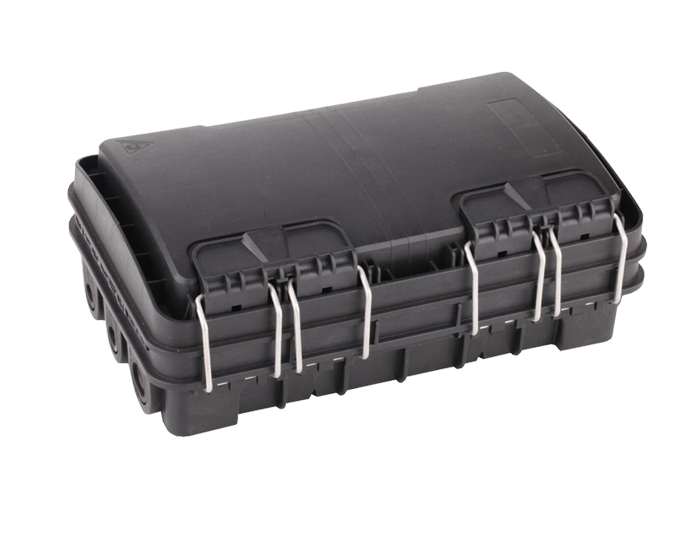

16 Core Outdoor Fibre Optic Cable Box - Fiber Distribution Box FDB-016E
