8 Core Fiber Splitter Box - Fiber Optic Splitter Box FDB-08F

Publisher: MJADOM

Author: Andy

RGP-FDB-08F 8 Core Fibre Splitter Box called Fiber Optic Splitter Box can load fiber optic splitter, fiber splitter, LGX Splitter, It's designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.

RGP-FDB-08F 8 Core Fibre Splitter Box called Fiber Optic Splitter Box can load fiber optic splitter, fiber splitter, LGX Splitter, It's designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.


The range includes strain relief systems for main cables or for customer drops suitable for multiple applications: aerial, residential, building basement, building riser. The distribution boxes may house fusion splices, mechanical splices or splitters.

Can accommodate 1x8 Insert Splitter Box.

Offers spaces for splitters and up to 8 fusions.

Material : PC/ABS Alloy or Fire-Retardant ABS .

UV and weather proof ; Up to 8 FTTH drops.

Wall and pole mountable, Grounding device included.

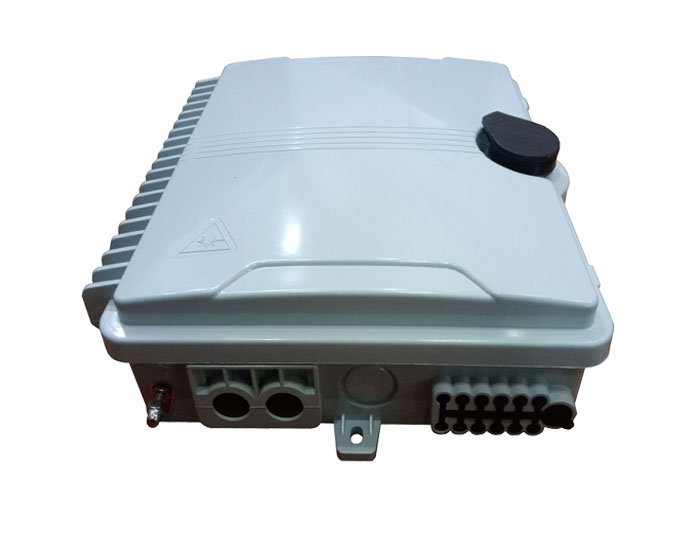

2 inlet ports( for cables with max diameter 12 mm), 8 outlet drop cable ports.

Suitable for used uncut fiber optic cable.

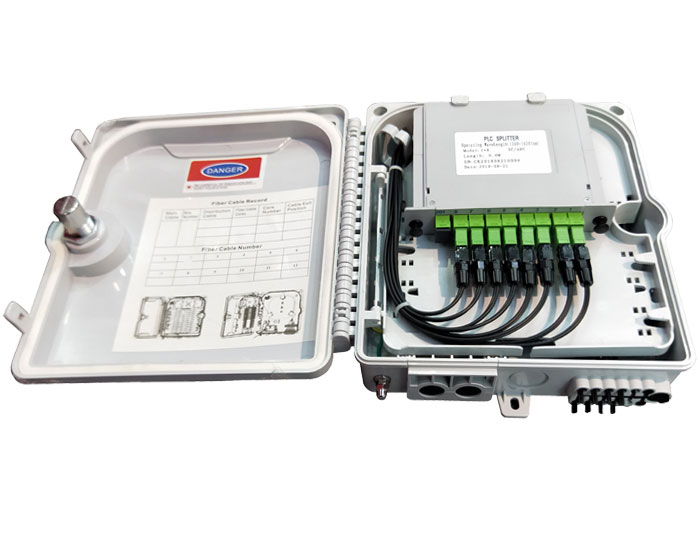

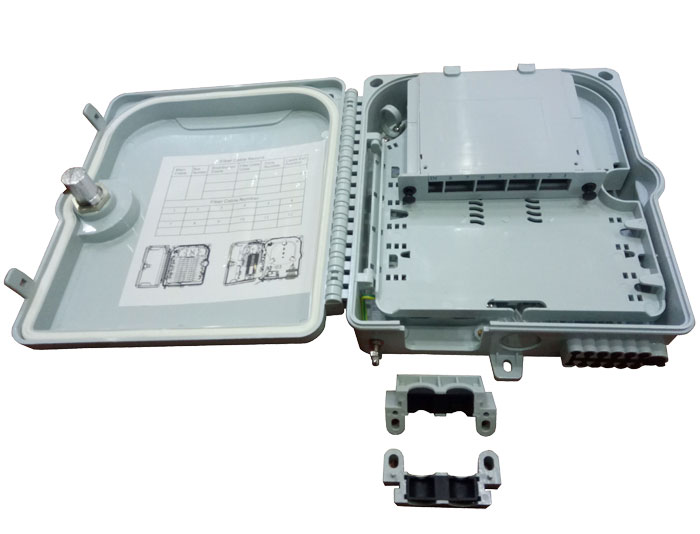

The box has two layers. The outer layer is composed with mounting unit for splitter and cable management parts.

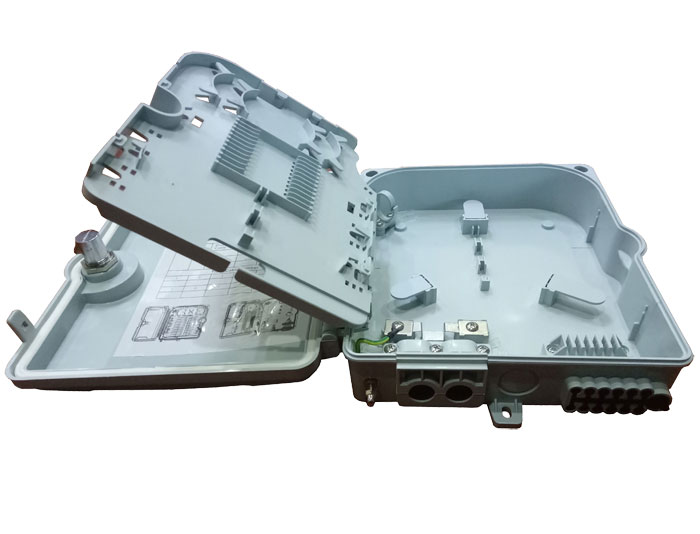

The inner layer is equipped by splicing tray and cable storage unit for pass-through riser cable.



Turn-over structure, layout is reasonable with splicing zone below and distribution zone above.

Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.

The mark is clear on each fiber connection and distribution.

The door opening angle is greater than 180 degree for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP65

RoHS compliance.

FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks.


Configuration

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
RGP-FDB-08F

8 Splices,

1x8 PLC Insert Splitter Box

225mmx200mm

x65 mm

20 PCS2 Inlet for Uncut Port +8 Drop Cable Outlet Ports13 KGS

490mmx460mm

x330mm
