2 Port Fiber Termination Box Fiber Optic Distribution Box FDB-02A

Publisher: MJADOM

Author: Andy

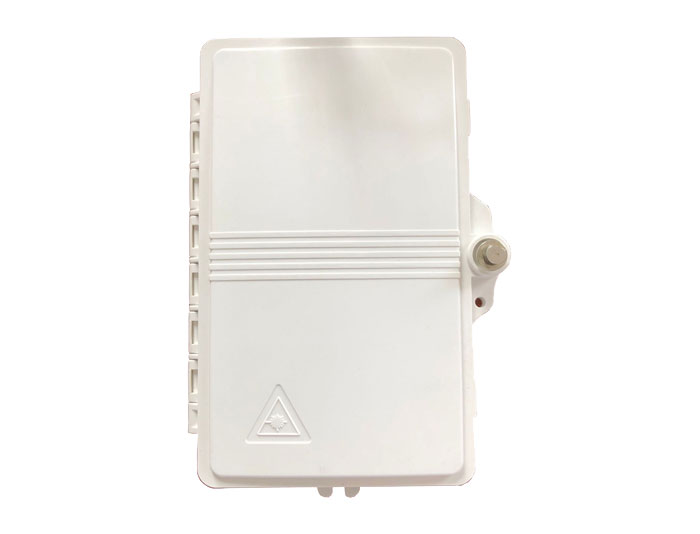

RGP-FDB-02B  2 Port Fiber Termination Box also called Fibre Optic Distribution Box are designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, the body of the box is made of 70% PC+30% ABS. both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.

RGP-FDB-02B  2 Port Fiber Termination Box also called Fibre Optic Distribution Box is designed for use in both fiber-to-the-home and fiber-to-the-premises networks for point-to-point or PON network architectures, both indoor and outdoor models are available to accommodate either standard cables or window cut (break out) cables.


The range includes strain relief systems for main cables or for customer drops suitable for multiple applications: aerial, residential, building basement, building riser. The distribution boxes may house fusion splices, mechanical splices, or splitters.

Can accommodate 1x2 SC/ LC Duplex Adaptor.

Material : PC/ABS Alloy or Fire-Retardant ABS .

UV and weather proof ; Up to 2 FTTH drops.

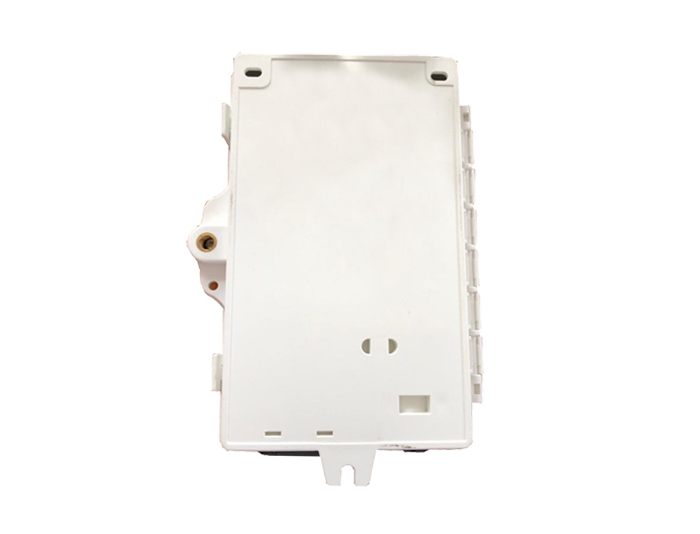

Wall and pole mountable, Grounding device included.

1 inlet ports( for cables with max diameter 14 mm), 2 outlet drop cable ports.

Suitable for used uncut fiber optic cable.

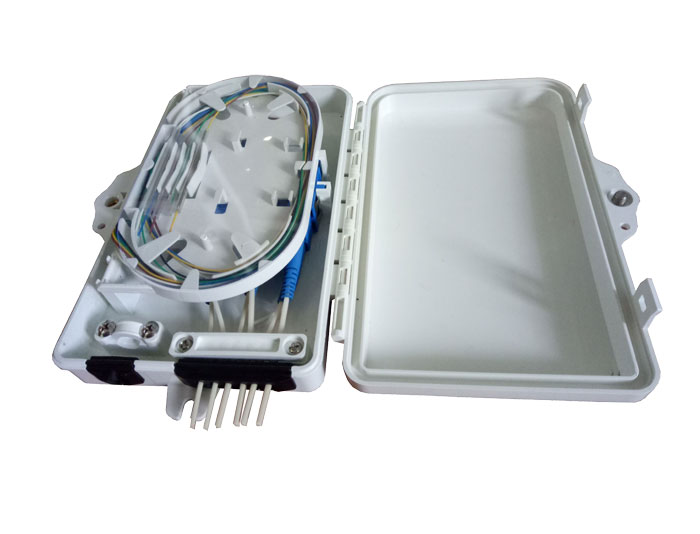

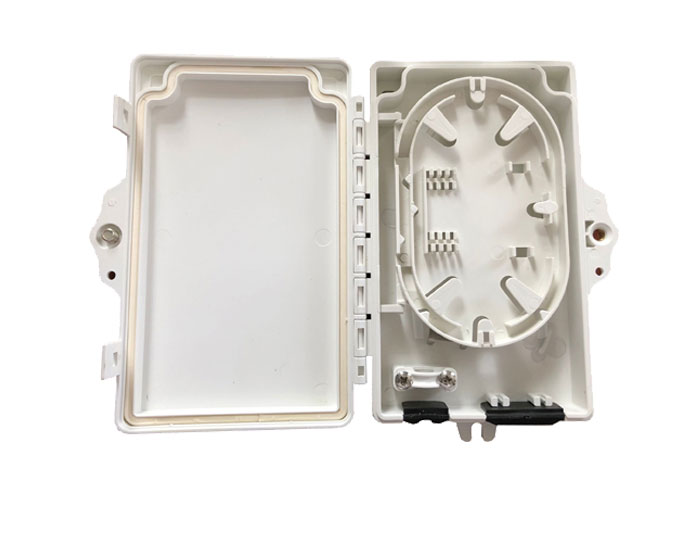

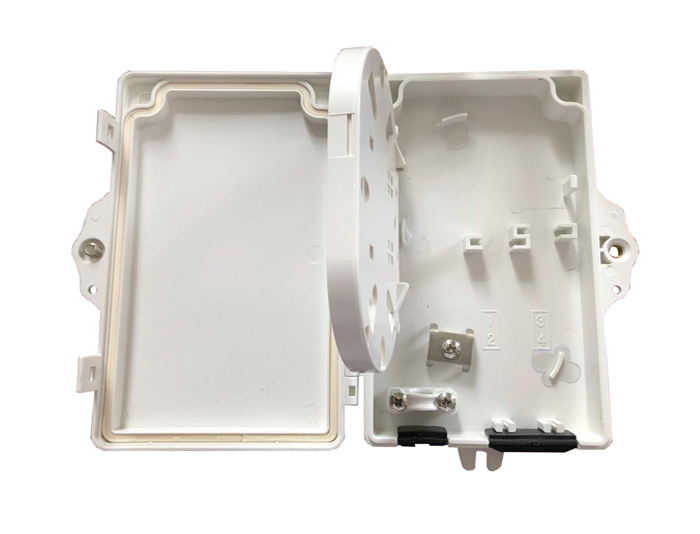

Turn-over structure, layout is reasonable with splicing zone below and distribution zone above.



Fiber route reasonable, fiber bending radius at any place is greater than 30 mm.

The mark is clear on each fiber connection and distribution.

The door opening angle is greater than 180 degree for easy operation and maintenance.

The redundant fiber is wound and protected.

Protection class: IP65

RoHS compliance


Application:

FTTH access network.

Telecommunication Networks

CATV Networks

Data communications Networks

Local Area Networks.


Configuration

ModelCapacityDimensionPCS/CartonCable portsG.W/CartonSize of Carton
RGP-FDB-02B

2 Splices,

2 SC/LC Duplex adaptors

or 1x2 PLC Splitter

167mmx102mm

x31 mm

60 PCS1 Inlet for Uncut Port + 2 Drop Cable Outlet Ports22.5 KGS

320mmx340mm

x310mm
