Description:

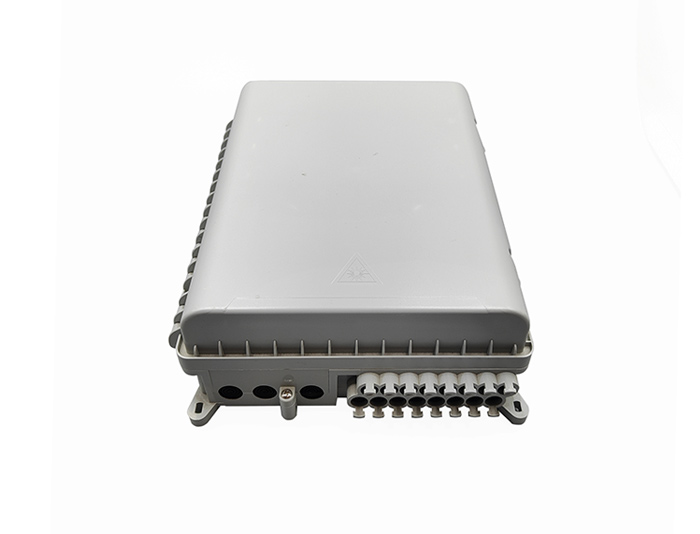

RGP-F2E-506J 16 Core FTTH Fiber Termination Box provides a high density Aerial mounted & Pole mounted solution for the next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. F2E-506H Fiber Terminal Box is normally installed in the way of aerial mounting & pole mounting. features with ruggedness, which is tested under harsh conditions and stand up to even the most severe conditions of moisture, vibration and extreme temperatures.
Outdoor Fiber Termination Box can be used for FTTH deployments (PON and P to P networks) as well as for use with high fiber and city center deployments.
Feature:
Material: Modified P.P.
Sealing Structure: Mechanical Sealing.
Seal Material: Thermoplastic rubber.

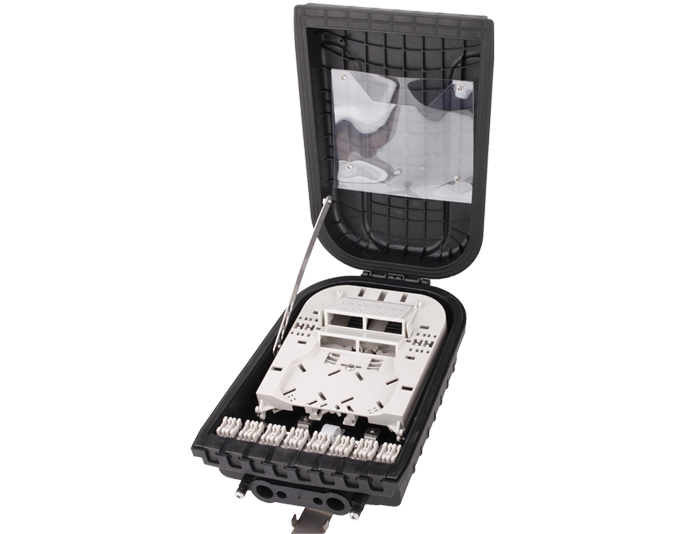

180-degree access with buckled lock structure
Dis-mountable adaptor panel, Support mid-span termination.

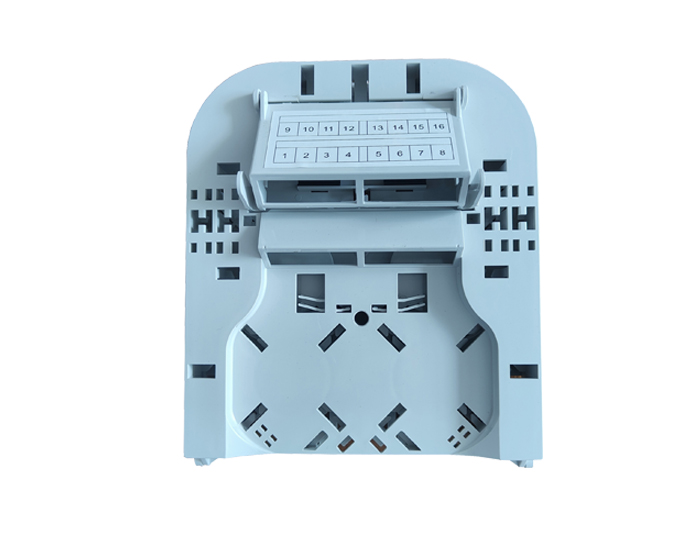

Rotatable and dis-mountable splice tray for easy splicing.
Plug-and-play installation, easy for maintenance and expansion.

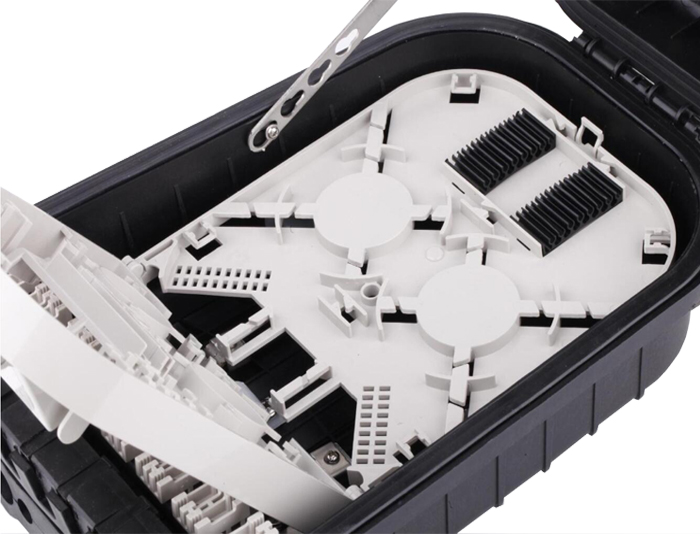

Integrated with flap-up splice cassette and cable management system.
Manage fibers in a reasonable fiber radius condition, Fiber bend radius control more than 40mm.
Impact test:1K10. Pull Force:100N. Full Rugged design.
1*8 or 1*16 Fiber Optic Splitter can be installed in each splice tray as option.

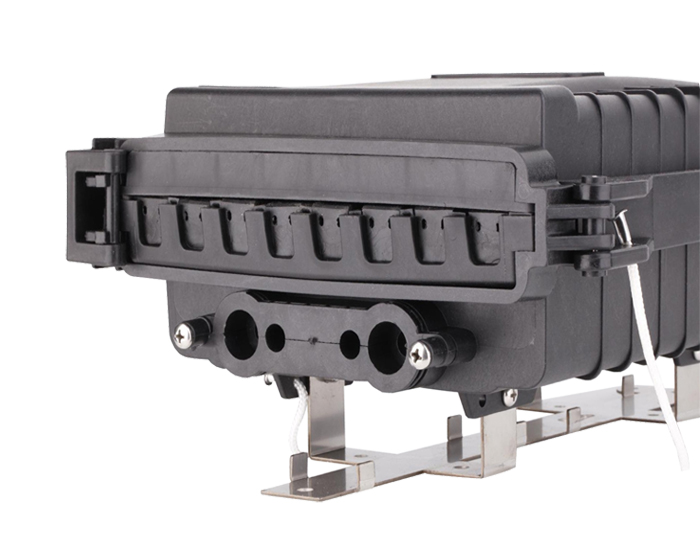

4 Round Ports for distribution cable(Φ8-14mm),16 ports cable entrance for FTTH drop distribution cables.
Protection class: IP68.
RoHS compliance.
Applications :
Aerial Mounting & Wall Mounting & Pole Mounting Installation.
