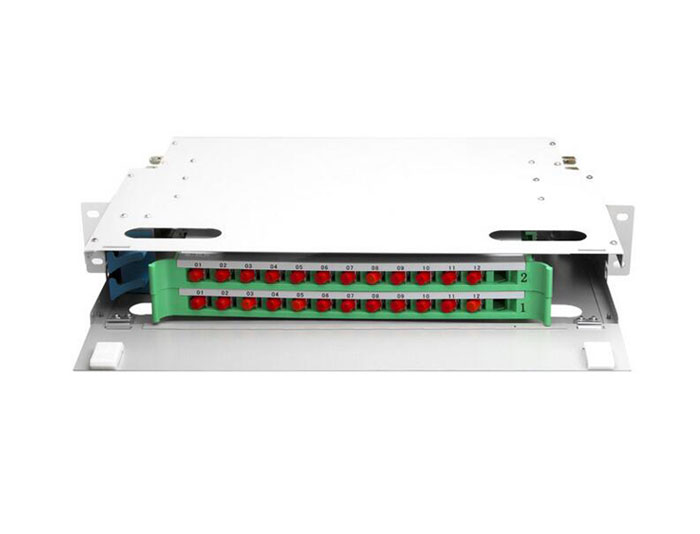

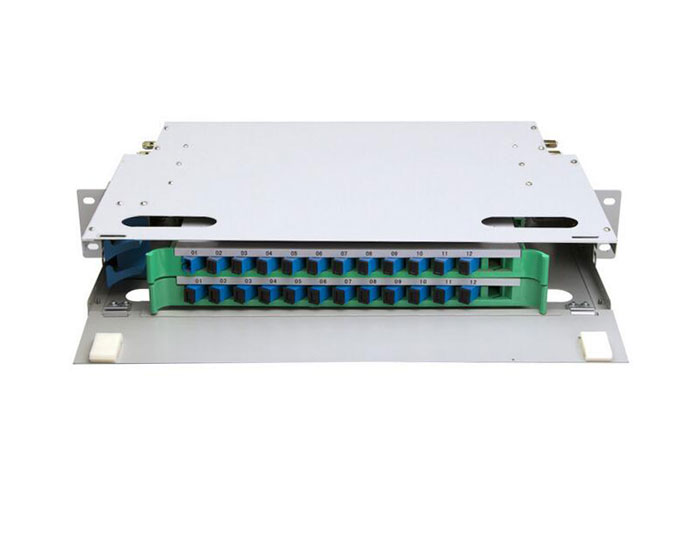

24 Port ODF Fiber Optic Distribution Unit ODF-RF24A

Publisher: MJADOM

Author: Andy

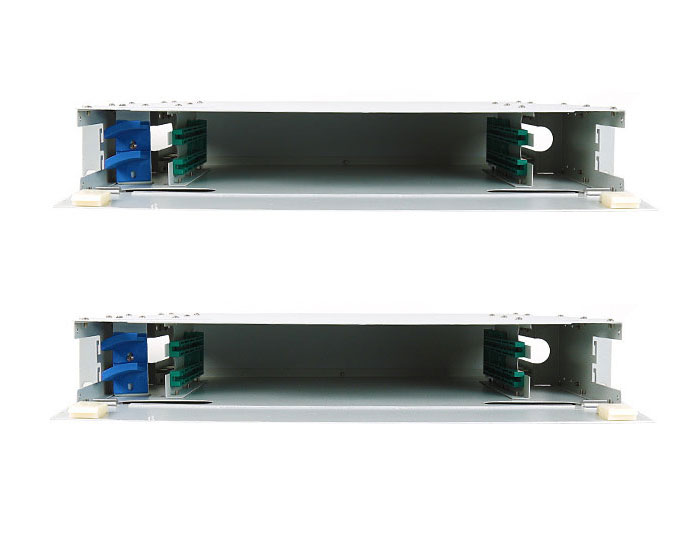

RGP-ODF-RF24A Series Rack-Mount Fiber Optic Distribution Unit also called Fiber Optical Distribution Frame or Fiber Distribution Panel is a modularized design with sliding trays inside and cold-rolled steel box, coated anti-corrosive paint. It could be pre-installed with various kinds of fiber optic adapters and pigtails, provide cross-connect and interconnect between incoming fiber optic cables and fiber optic equipment. MJADOM offers a full range of Fiber Optical Distribution Frame & Enclosure, Fiber Termination Box, Fiber Optic Distribution Box, FTTH Fiber Access Terminal Box, Buy high-performance Fiber Optic products at MJADOM.COM.

RGP-ODF-RF24A Series Rack-Mount Fiber Optic Distribution Unit also called Fiber Optical Distribution Frame or Fiber Distribution Panel is a modularized design with sliding trays inside and cold-rolled steel box, coated anti-corrosive paint. It could be pre-installed with various kinds of fiber optic adapters and pigtails, provide cross-connect and interconnect between incoming fiber optic cables and fiber optic equipment.



It is with standard 19-inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss, this frame is ideal for indoor fiber optic cables connection storage, distribution, and management.


Buy Fiber Optic Distribution Frame (Rack Mount /Wall Mount, Fiber Patch Panel, 12-96 Fibers, LC/SC adapter ) for Fiber Distribution Terminal from reliable fiber optic supplier-MJADOM.COM.


Feature:

Material: Cold-Roll Steel Box and anticorrosive paint (housing).

Can be used in 19" Standard distribution frame, lightweight and reasonable structure.

Front and rear covers with special lock (pressure closure) can be opened for connecting and maintaining.

The front mark on the plate is easy for identification and operation.

The hanger position can be adjusted for different installation cases.


Plug and Play splicing and terminating tray, universal for a variety of adapters such as SC, FC, LC, etc.

Designed for protection against electrical interference ( over-voltage and over-current ), according to ITU-T Rec K.11.

Supplied with all accessories required for proper assembly and connection to the transmission and test equipment.

Fiber Tray: ABS, 12 cores, compliance UL94 V-0.

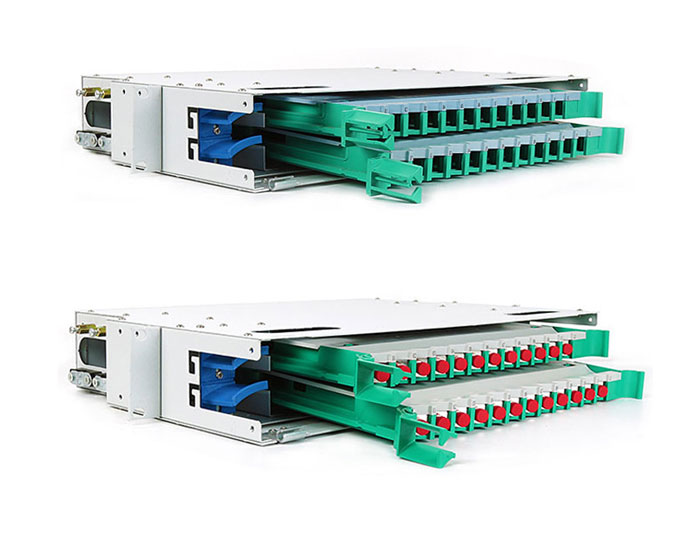

Slide-out tray for easy of splice and withdraw the fibers during testing and distributing. Compliance with ITU-T L.50 standard.

Suitable for ribbon and single fiber.

Suitable for different cable types SM G.652, G.655, G657, MM G651.

Various panel plate to fit different adapter interface ( FC,SC,LC,ST ).


Bending radius in any part of the organizing unit > 30mm.

Enough storage space for cable and pigtail (1.5m).

The trays could be pulled out for operation, which makes installation easy and convenient, Easy for management and operation.


Application:

FTTH access network.

Telecommunication Networks.

CATV Networks.

Data communications Networks.

Local Area Networks.


Configuration

Order Configuration:

ModelCore CountHeightDimension(mm)Weight(kgs)
RGP-ODF -RF144A144F7.5U485x305x333.7514 KGS
RGP-ODF-RF96A96F5U485x305x222.511 KGS
RGP-ODF-RF72A72F4U485x305x1789 KGS
RGP-ODF-RF48A48F3U485x305x133.57 KGS
RGP-ODF-RF24A24F2U485x305x894.6 KGS
RGP-ODF-RF12A12F1U485x305x44.53.4 KGS



Related Products

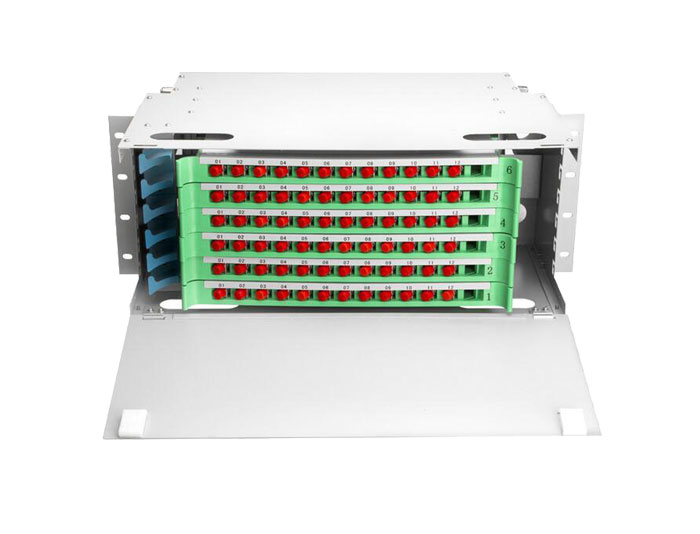

Fiber Optical Distribution Frame (ODF) GPX109A
Fiber Optical Distribution Frame (ODF) GPX109A

RGP-GPX109A Fiber Optical Distribution Frames, it is applicable to central offices and optical branches, it serves such functions as leading in fixing and protecting optical cables, storing and managing pigtails, and fixing and cross-connection.

19

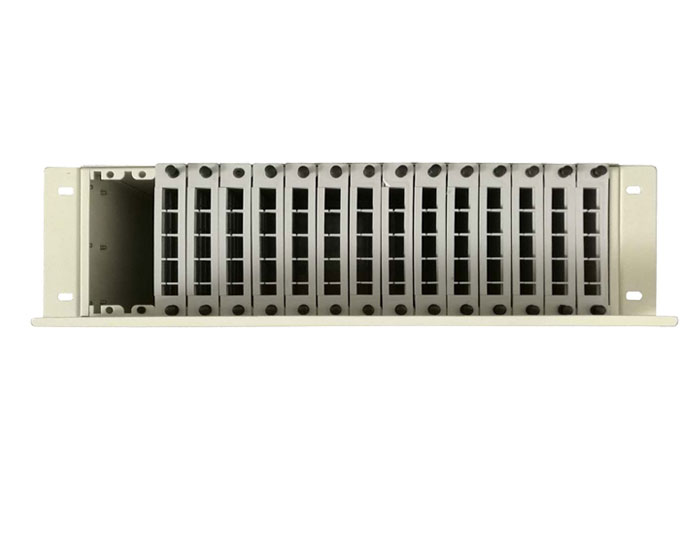

19" Rack-Mount Chassis with LGX Module ODF-RF48B
