ODF FIBER

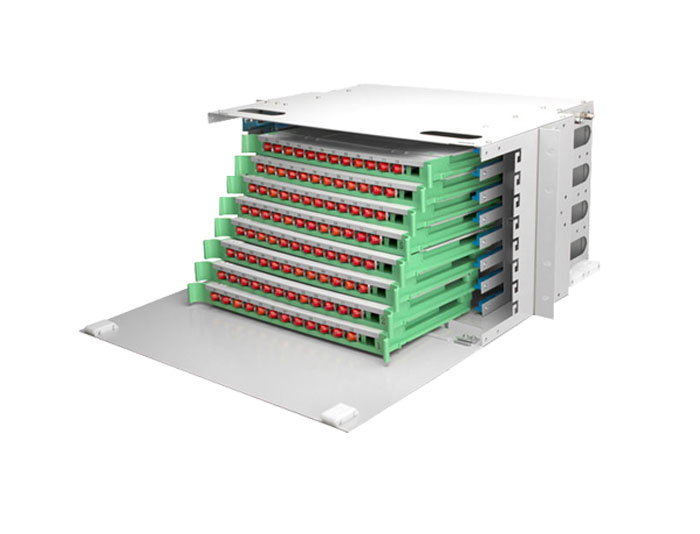

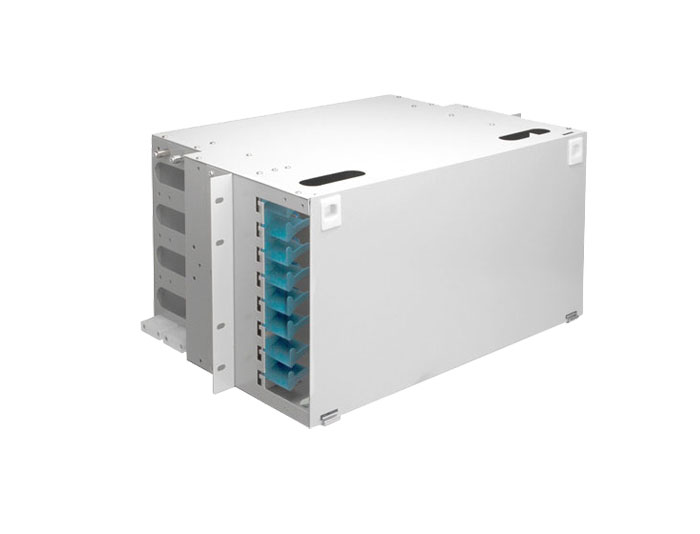

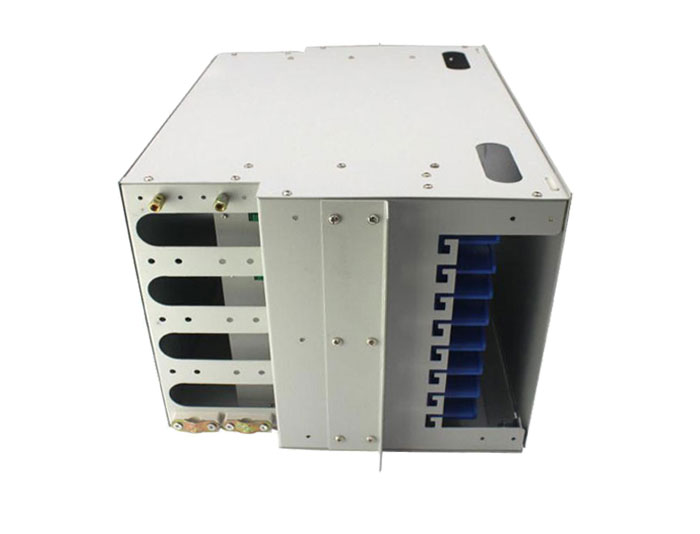

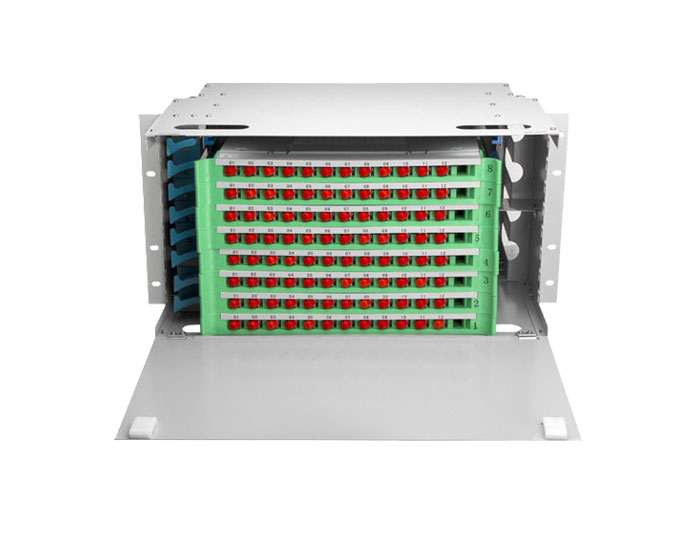

RGP-ODF-RF-96A Series Rack-Mount 96 Port ODF Optical Fiber Distribution Frame also called 96 Port ODF or ODF 96 Port or 96 Port Fiber Patch Panel is a modularized design with sliding trays inside and cold-rolled steel box, coated with anti-corrosive paint. It could be pre-installed with various kinds of fiber optic adapters and pigtails, providing cross-connect and interconnect between incoming fiber optic cables and fiber optic equipment.

It is of standard 19-inch size and properly designed to control the bend radius of the cable inside the enclosure to avoid extra optical loss, this frame is ideal for indoor fiber optic cable connection storage, distribution, and management.

Buy High-Performance Optical Distribution Frame (Rack Mount /Wall Mount, Fiber Distribution Panel, Fiber Patch Panel, 12-144 Fibers, LC/SC adapter ) for Fiber Distribution Terminal from reliable fiber optic supplier-MJADOM.COM.

Feature:

Material: Cold-Roll Steel Box and anticorrosive paint (housing).

Can be used in 19" Standard distribution frame, lightweight and reasonable structure.

Front and rear covers with special lock (pressure closure) can be opened for connecting and maintaining.

The front mark on the plate is easy for identification and operation.

The hanger position can be adjusted for different installation cases.

Plug and Play splicing and terminating tray, universal for a variety of adapters such as SC, FC, LC, etc.

Designed for protection against electrical interference ( over-voltage and over-current ), according to ITU-T Rec K.11.

Supplied with all accessories required for proper assembly and connection to the transmission and test equipment.

Fiber Tray: ABS, 12 cores, compliance UL94 V-0.

Slide-out tray for easy of splice and withdraw the fibers during testing and distributing. Compliance with ITU-T L.50 standard.

Suitable for ribbon and single fiber.

Suitable for different cable types SM G.652, G.655, G657, MM G651.

Various panel plate to fit different adapter interface ( FC,SC,LC,ST ).

Bending radius in any part of the organizing unit > 30mm.

Enough storage space for cable and pigtail (1.5m).

The trays could be pulled out for operation, which makes installation easy and convenient, Easy for management and operation.

Application:

FTTH access network.

Telecommunication Networks.

CATV Networks.

Data communications Networks.

Local Area Networks.
