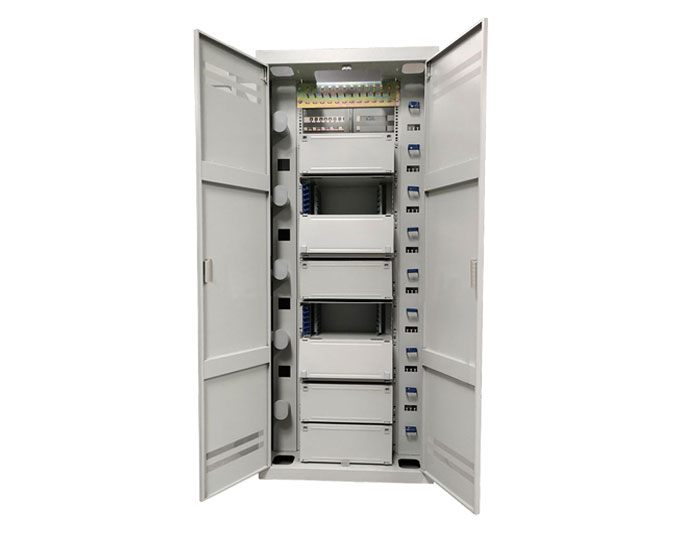

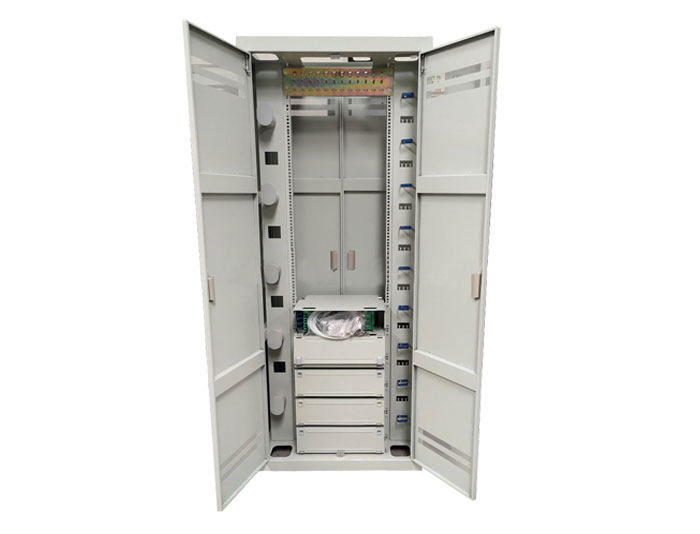

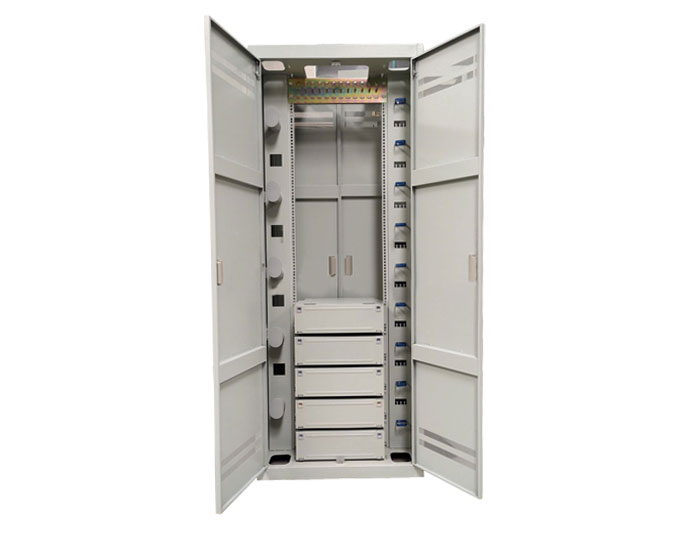

Fiber Optical Distribution Frame (ODF) GPX109A

Publisher: MJADOM

Author: Andy

GPX109A, As an integrated splicing and distribution frame, it is applicable to central offices and optical branches, it serves such functions as leading in fixing and protecting optical cables, storing and managing pigtails, and fixing and cross-connection. Meanwhile, such value-added modules as optical splitters and wave-division multiplexers ( WDM ) can be installed as a requirement by customers. MJADOM provides from 288F to 720F Optical Distribution Frame (ODF) series that can support fast network expansion, more cables, and connections, and the frames to hold them, are required, buy high-performance fiber optic products at MJADOM.

GPX109A, As an integrated splicing and distribution frame, it is applicable to central offices and optical branches, it serves such functions as leading in fixing and protecting optical cables, storing and managing pigtails, and fixing and cross-connection. Meanwhile, such value-added modules as optical splitters and wave-division multiplexers ( WDM ) can be installed as a requirement by customers.


It is used for the intermediate distribution of optical cables, implementing cross-connection and route configuration of optical fibers between optical transmission nodes. After the optical introduction unit is installed, it can serve as the optical distribution cabinet for either splicing & distribution. It is a high-density, moderate-capacity and front-facing operation optical distribution cabinet, used for splicing and distribution or intermediate distribution.


Buy High-Performance Optical Distribution Frame (Rack Mount /Wall Mount, Fiber Distribution Panel, Fiber Patch Panel, 12-144 Fibers, LC/SC adapter ) for Fiber Distribution Terminal from reliable fiber optic supplier-MJADOM.COM.


Feature:

Material: Cold-Roll Steel Box and anticorrosive paint (housing).

Fully-closed structure with the advantages of good performance of dust-proof, pleasing, and neat appearance.

Fibre-management-unit structure, modular design, flexible configuration, convenient installation.

Enough space for fiber distribution and storage space and very easy for installation and operations.

Fully front side operation, convenient for maintenances.



Cable inlet system is installed on the top of the frame which has excellent performance for fixing the cables.

Cables can be inlet either from the top or the bottom of the frame subject to different requirements.

This frame is suitable for both common bundle cables and ribbon type cables.

Reliable cable fixture cover and earth protection device provided.

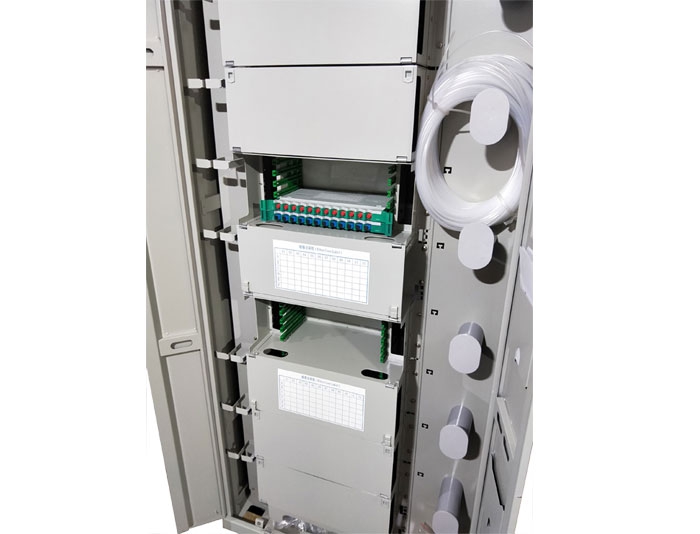

An integrated splice and distribution unit is adopted. Each unit holds up to 12 FC adapters and up to 24 SC/LC adapters. All units have specially designed slots and can be easily pulled out for operation at any time.

The fiber separation hook of the splice and distribution module (the hook on the left) can be disassembled to fit for both wide and narrow structure frames.

Up to 6 units make up a module.

The worktable is provided if one module contains 6 units.



All adapters are installed 30 degrees inclining to the operation surface which is easier for connecting and also protects installers' eyes from the lights.

No screw needed for installing adapters.

Reasonable fiber route, ensure fiber bending radius larger than 37.5mm at any position.



Working Environment:

Working temperature: - 5°C ~ + 40°C.

Relative humidity: < 85% ( +30 °C ).

Atmosphere pressure:  70 kpa ~ 106 kpa.

Storage temperature: - 25°C ~ + 55°C.


Technical Parameters:

Fiber Connector Insertion Loss: ≤ 0.3 dB.

Fiber Connector Return Loss: ≥ 50 dB (UPC); ≥ 60 dB (APC).

Flammability: ABS, UL 94V-0 standard.


Application:
FTTX application.
Consolidation point.
Datacenter & Central Office.
Cellular tower base station.
LAN & WAN projects.


Complied Standards :
Meet national standards, such as YD/T925-2009, GB/T2423-2008, GB/T3873-1998, GB/T 9286-1998, and international standards, such as IEC 61300-3-15, IEC 61300-3-16, IEC 61300-3-17, IEC 61300-3-23, etc.


Configuration

Order Configuration :

ModelSpecification72 cores ODF      ( pieces )Remark
CapacitySize

GPX109A

Fiber Optical Distribution Frames

7202600x840x3001012 cores fusion units
5762200x840x3008
5042000x840x3007
5042600x600x3007
3602200x600x3005
2882000x600x3004
ModelSpecificationWorking Environment Remark
CapacitySize

GPX109B

Fiber Optic Distribution Frames

7202600x840x300IndoorEnclosed type frame
5762200x840x300
5042200x600x300
4082000x600x300
2882000x600x300
