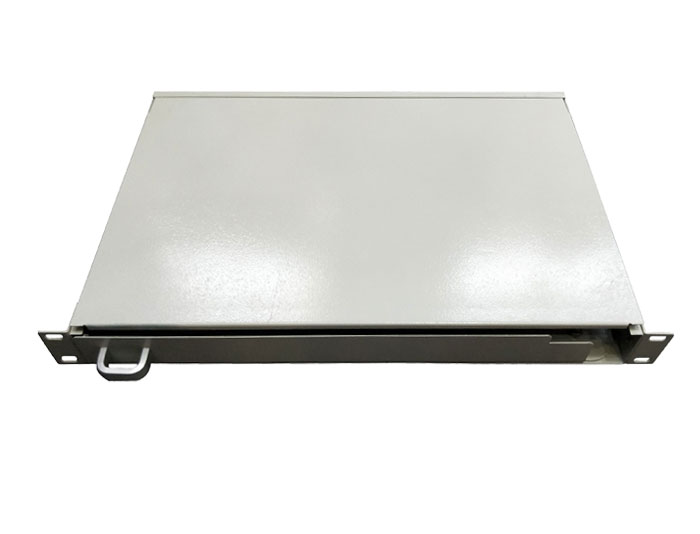

19 Inch 12 Port Swing Out Fiber Optic Patch Panel GZFB-2088A

Publisher: MJADOM

Author: Andy

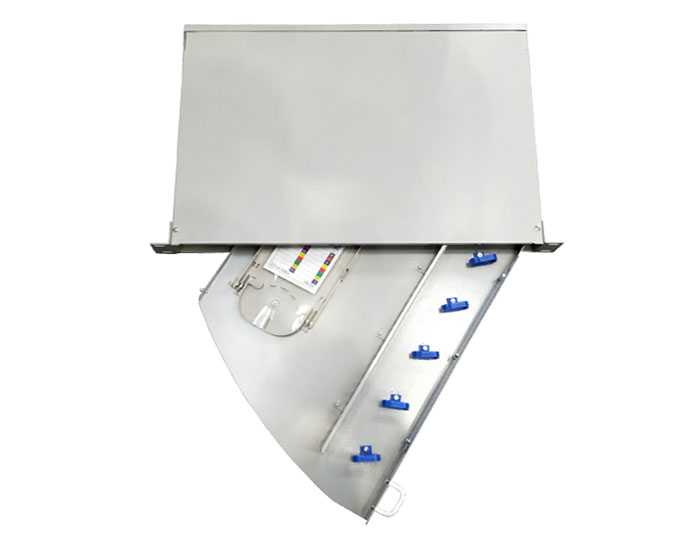

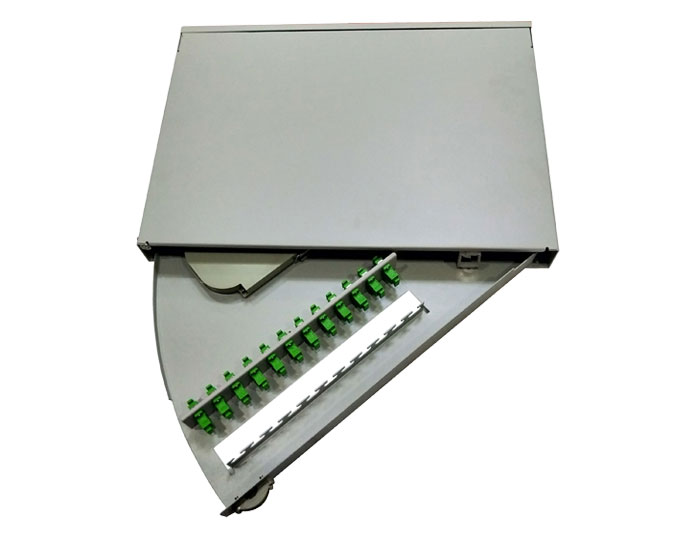

RGP-GZFB-2088A-R12 19 Inch 12 Port Swing Out Fiber Optic Patch Panel also called Fiber Terminal Box is a style of fiber optic housing that swings outward to allow access to components inside no need for removing the panel above. This facilitates termination and splicing while keeping network connections secure. When dealing with fiber optic networking it's crucial to consider the security of network components, especially considering its fragility. MJADOM offers a full range of Fiber Patch Panel & Enclosure Fiber Termination Box, Fiber Optic Distribution Box, FTTH Fiber Access Terminal Box, Buy High-Performance Fiber Optic products at MJADOM.COM.




RGP-GZFB-2088A-R12 19 Inch Swing Out Fiber Optic Patch Panel also called Fiber Terminal Box is a style of fiber optic housing that swings outward to allow access to components inside no need for removing the panel above. This facilitates termination and splicing while keeping network connections secure. When dealing with fiber optic networking it's crucial to consider the security of network components, especially considering its fragility.


This swing-out patch panel is manufactured of 16 gauge powder-coated steel, can support SC simplex, LC duplex or FC adapters; The swing-out patch panel fits one rackmount unit with two 19" or 23" mounting supports.


Buy Fiber Patch Panel (Rack Mount /Wall Mount, Fiber Termination Box, 12-96 Fibers, LC/SC adapter ) for Fiber Distribution Terminal from reliable fiber optic supplier-MJADOM.COM.

Features:

Swing Out type, Compatible with 19 and 23 inches racks and cabinets. (according to customer requirement).

Dimension : 485x310x45 (mm) 1U ; 1U=44.45mm ; Weight :  4.5KG.

Material: 16 gauge powder coated steel.

Capacity: common 1U 24 (up to 4U 96 according to customer requirement).

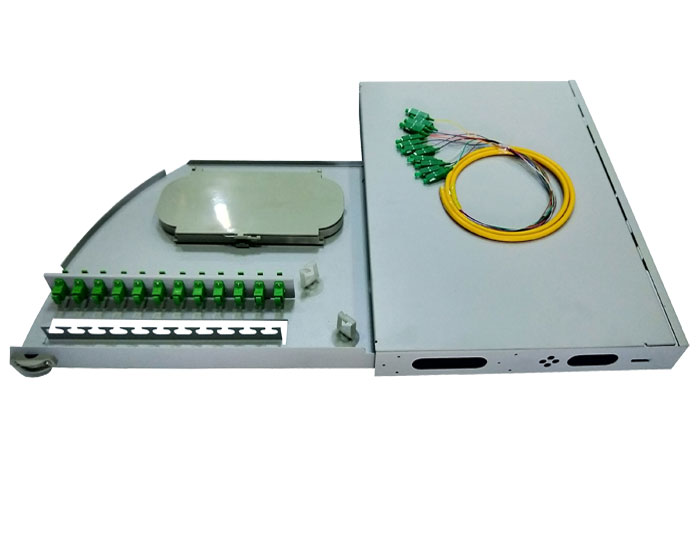

SC / FC / LC Patch Cord and break-out cable; various connectors are available.
Bending controls guide and protect the pigtail cable and ensure controllable cable bending.

Insertion Loss ≤ 0.2dB; Return Loss ≥ 65dB.


Performance:

Operating temperature: -5℃~+40℃(Indoor type),-20℃~+60℃(Outdoor type).
Ambient humidity: ≤95%(+40℃).
Atmospheric pressure: 70 kPa~106 kPa.
Insulation resistance: not less than 2 x 104 M Ω / 500 V (DC).
Withstand Voltage: not less than 3000V(DC)/1min.
Insertion loss (dB): ≤0.3dB ;

Return loss (dB): PC type≥45dB, UPC type≥50dB, APC type≥60dB.


Application:
FTTX application.
Consolidation point.
Datacenter & Central Office.
Cellular tower base station.
LAN & WAN projects.


Complied Standards :
Meet national standards, such as YD/T925-2009, GB/T2423-2008, GB/T3873-1998, GB/T 9286-1998, and international standards, such as IEC 61300-3-15, IEC 61300-3-16, IEC 61300-3-17, IEC 61300-3-23, etc.

Configuration

Order Infomation:

Model No.NameSpliced fiber storage capacity

Dimension

(HxWxD)

CapacityAdaptors

RGP-GZFB

-2088A-R12

19 Inch Swing Out

Fiber Optic Patch Panel

24 Splices; 1U 44.45mm
(Max. 4U & 96 Splices)
 485mmx310mmx45mm

1U 24 Splices;

(up to 4U 96 splices according to customer requirement).

Max.FC 96 Panel,

LC 192 Panel or SC 96 Panel
