Wall Mount Fiber Optic Patch Panel KJN-3011A

Publisher: MJADOM

Author: Andy

RGP-KJN-3011A The Wall Mount Fiber Optic Patch Panel includes a variety of two-door wall mount box configurations, these products are designed specifically to act as part of the fiber distribution system in an enterprise networkcell site backhaul network, or as the demarcation point for the service provider ar the customer's location, can load up to 96 fiber optic cables with SC connectors,or 192 cables with LC connectors. Manufacturer of Wall Mount Fiber Patch Panel, Fiber Termination Box, Fiber Optic Distribution Box, FTTH Fiber Access Terminal Box offered by MJADOM in China.

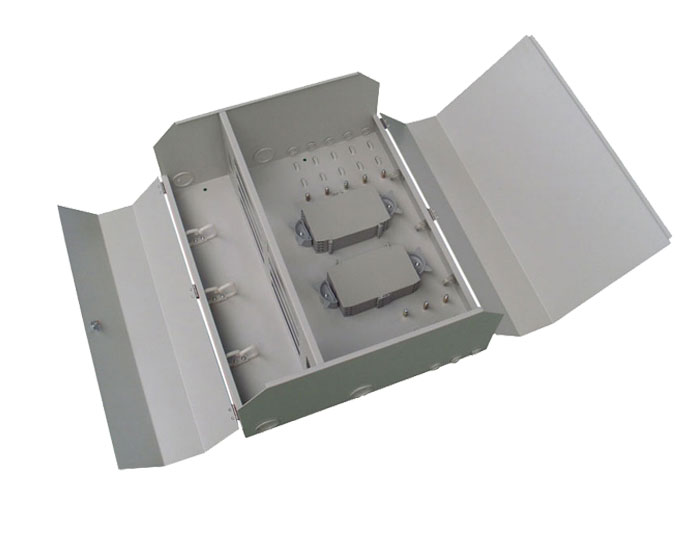

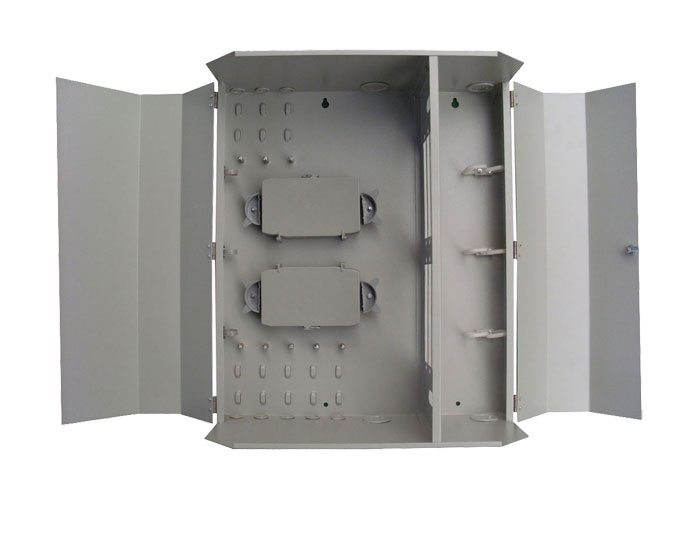

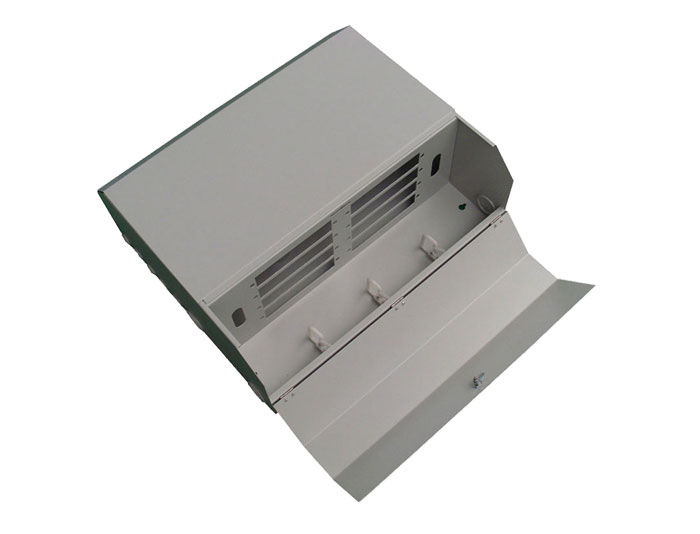

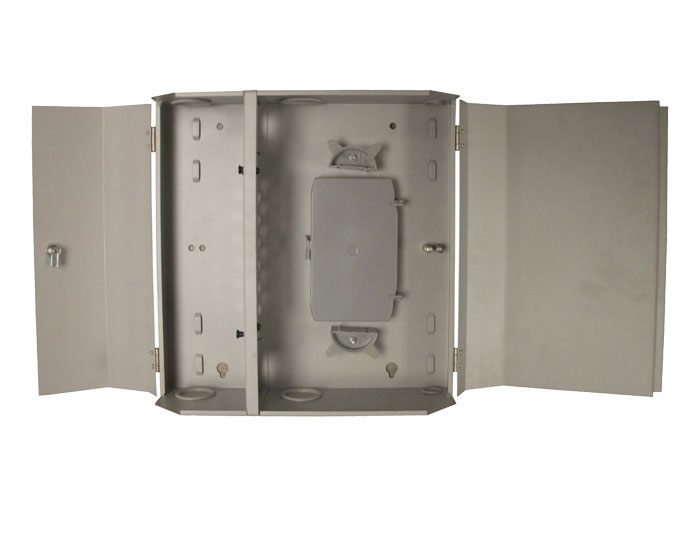

RGP-KJN-3011A The wall mounts fiber optic distribution box products include a variety of two-door wall mount box configurations, these products are designed specifically to act as part of the fiber distribution system in an enterprise network cell site backhaul network, or as the demarcation point for the service provider ar the customer's location, can load up to 96 fiber optic cables with SC connectors, or 192 cables with LC connectors.


Excellent labeling, grommets, door latches, and ribbon pigtails routing reinforce the value these products bring to the physical layer of any network with higher quality and reliability, greater operational efficiencies, and network simplification.


Buy Fiber Patch Panel (Rack Mount /Wall Mount, Fiber Termination Box, 12-96 Fibers, LC/SC adapter ) for Fiber Distribution Terminal from reliable fiber optic supplier-MJADOM.COM.

Features:

Indoor Fiber Wall Mount Terminal Box.

Arc-shaped case.

Economical, "build-as-you-grow" solution.

Configurable locking options that allows users and service providers separate access for security.

6-fiber adapter mounting bar.

Flexible design accommodates 24,48,72 and 96 fibers SC connectors,or 192 cables with LC connectors.


Double-sided and inserted structure, on rear for storing fibers and on front for splicing.

Acceptance of cable clamp at each corner Grounding screws, mounting screws, and dust caps are including with each panel.

Easy implementation and maintenance.

Clear cable routing, easy for storage, Convenient expansion.


Performance:

Working Temperature:-40°~+85°

Ambient humidity: ≤95%(+40℃).

Atmospheric pressure: 70 kPa~106 kPa.

Insulation Resistance (between the cabinet and the carthing device):>1000MΩ/500V(DC).

Dielectric Steength (between the cabinet and the carthing device):on-puncture,no are-over under 3000VDC/1 min.
Insertion loss (dB): ≤0.3dB.
Return loss (dB): PC type≥45dB, UPC type≥50dB, APC type≥60dB.

Application:
FTTX application.
Consolidation point.
Datacenter & Central Office.
Cellular tower base station.
LAN & WAN projects.


Complied Standards :
Meet national standards, such as YD/T925-2009, GB/T2423-2008, GB/T3873-1998, GB/T 9286-1998, and international standards, such as IEC 61300-3-15, IEC 61300-3-16, IEC 61300-3-17, IEC 61300-3-23, etc.


Configuration

Order Info :

Model No.
Capacity (Core)Cable Port (max)Core capacity Tray

Max diameter

Of cable(mm)

Width (mm)Depth (mm)Height (mm)Weight(kg)

RGP-KJN-3011A

Wall Mount Fiber Optic Distribution Box

(Double Doors)

24612-24φ223101003103.5
48612-24φ224001003606
72612-24φ224001403607.5
96812-24φ224001803609.5
