19 Inch 96 Core Slide Out Rack Mount Fiber Patch Panel GZFB-2022B-R96

Publisher: MJADOM

Author: Andy

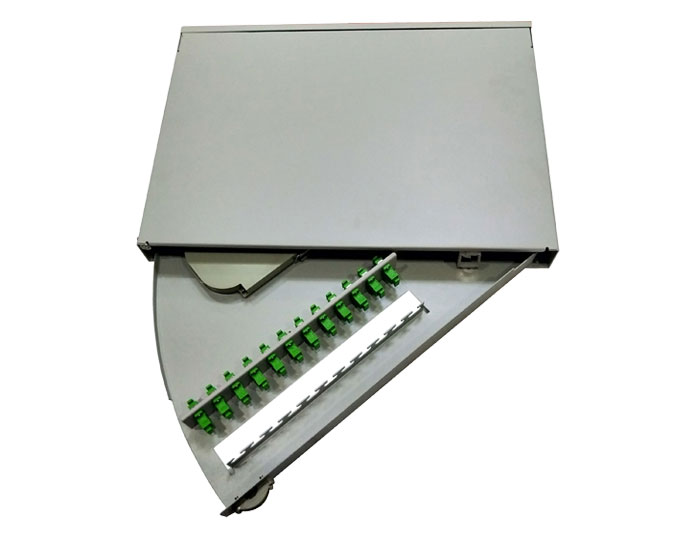

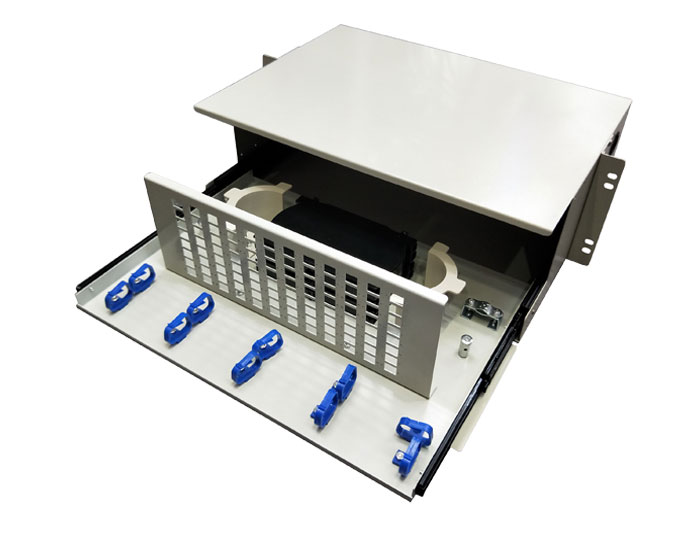

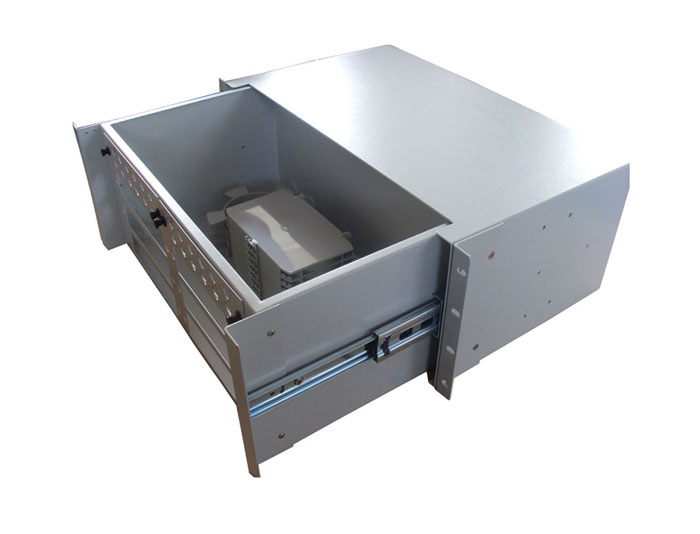

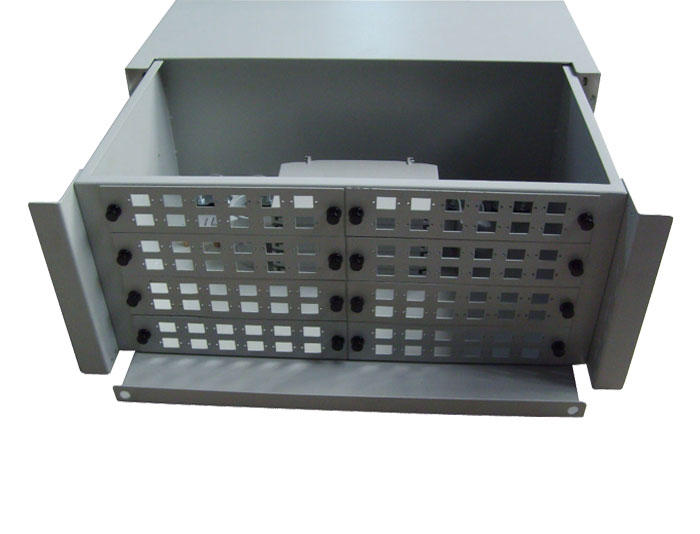

RGP-GZFB-2022B-R96 The Slide out 19 Inch Rack Mount Fiber Patch Panel also called Fiber Termination Box or Fiber Patch Panel 96 Port is designed for space-saving and high-density applications. The patch panel is made of 16 gauge cold rolled steel(CRS) with a black or grey powder-coated finish. Equipped with sliding drawer and removable back cover, it allows a simplified from access, inside-panel manipulation and splices.

RGP-GZFB-2022B-R96 The Slide out 19 Inch Rack Mount Fiber Patch Panel also called Fiber Termination Box or Fiber Patch Panel 96 Port is designed for space-saving and high-density applications. The patch panel is made of 16 gauge cold rolled steel(CRS) with a black or grey powder-coated finish. Equipped with sliding drawer and removable back cover, it allows a simplified from access, inside-panel manipulation, and splices.


Adapter strips up to 96 fibers, or cassettes can be installed into the 12 LGX cut-outs using their push pin mechanism.

A moving tray provides built-in cable management by holding and arranging the cables. This drawer mechanism enables easy access to the rear of the panel and eliminates the need for moving the panel above, the technician's easy access back into the enclosure after installation for repairs and maintenance.


Buy Fiber Patch Panel (Rack Mount /Wall Mount, Fiber Termination Box, 12-96 Fibers, LC/SC adapter ) for Fiber Distribution Terminal from reliable fiber optic supplier-MJADOM.COM.


Features:

Standard 19" structure, hanger position can be adjusted, adapting to different installation scenarios.

Sliding-type tray to access pigtails.

Slide type rack mount bracket to adjust the depth.

Welded screw in the middle of the inner surface for splice cassette.

The standard color is RAL 9005 black; RAL 7035 light grey is also available.


Cable clamps on the inner surface for fixing cable.

Front and back flexible wire guard.

Installation hardware and instruction manual included.

Compatible with 19 and 23 inches racks and cabinets.

Drawer structure, Separately & Snap-in Adaptor Plate, convenient for use, maintenance and operation.

Unified rack, a variety of adapter panels can be chosen, flexible for modification and expansion.

Application to FC (D type), SC/ LC (duplex) and other adapters by choosing different adapter panels.


Performance :
Operating temperature: -5℃~+40℃(Indoor type),-20℃~+60℃(Outdoor type).
Ambient humidity: ≤95%(+40℃).
Atmospheric pressure: 70 kPa~106 kPa.


Insulation resistance: not less than 2 x 104 M Ω / 500 V (DC).
Withstand Voltage: not less than 3000V(DC)/1min.
Insertion loss (dB): ≤0.3dB.
Return loss (dB): PC type≥45dB, UPC type≥50dB, APC type≥60dB.

Application:
FTTX application.
Consolidation point.
Datacenter & Central Office.
Cellular tower base station.
LAN & WAN projects.


Complied Standards :
Meet national standards, such as YD/T925-2009, GB/T2423-2008, GB/T3873-1998, GB/T 9286-1998, and international standards, such as IEC 61300-3-15, IEC 61300-3-16, IEC 61300-3-17, IEC 61300-3-23, etc.

Configuration

Order Information :

NameTypeDimension (HxWxD)Adapter PanelMax. Capacity(Cores)Max diameter of cable(mm)Working EnvironmentNote

19 Inch Fiber Optic

Patch Panel

RGP-GZFB-2022B 485×300×52 (1U~4U) Separately & Snap-in Adaptor Plate 96 Cores φ22 Indoor

Adaptor Type /

Metal Sliding Mounting Bracket
