144 Core, 6 Trays, Mechanical Sealing FTTH Fiber Optic Closure TSB-207-32SC

Publisher: MJADOM

Author: Andy

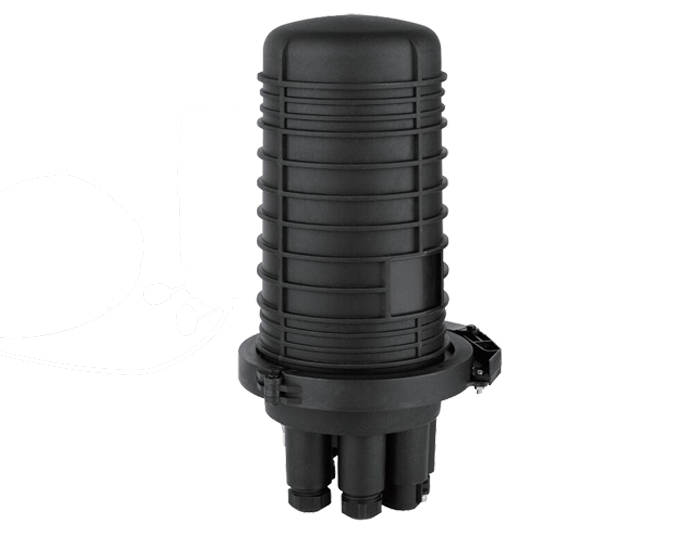

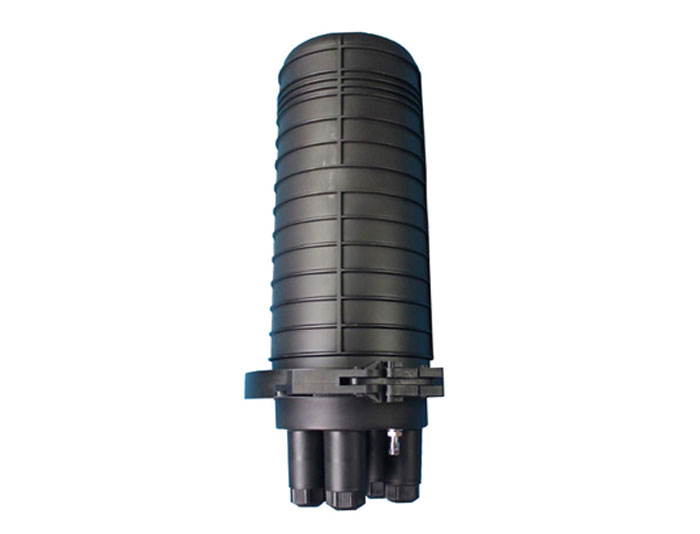

RGP-TSB-207-32SC Dome Fiber Optic Splice Closure is the most important part of the FTTH Network, which is a compact and flexible closure that provides for connections between fiber optic cable and passive optical splitters in the outside Plant.


The body of the closure is made up of Modified P.P and the inner splice tray is 100% New ABS, It has a good high-pressure resistance and corrosion resistance.


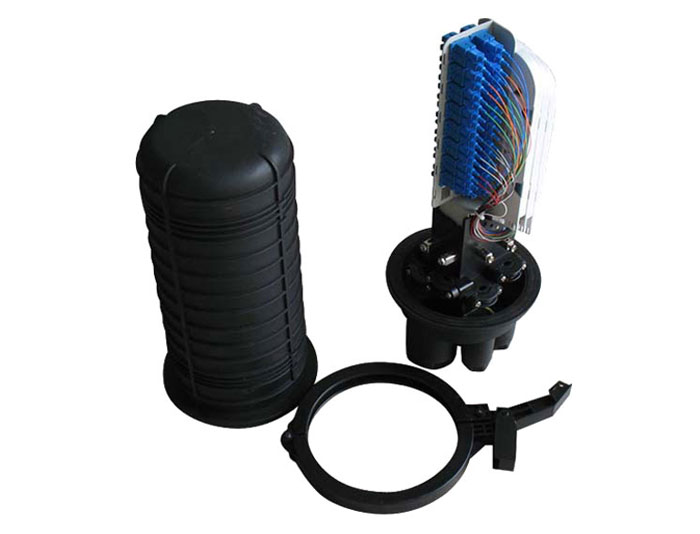

FTTH Fiber Optic Closure TSB-207-32SC.

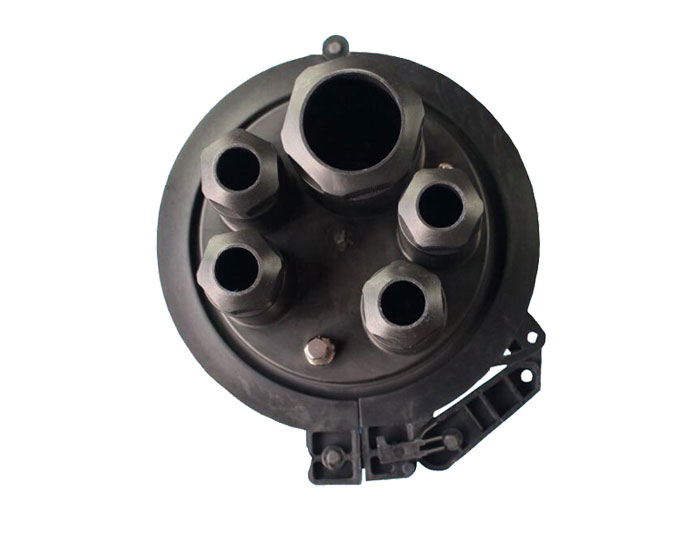

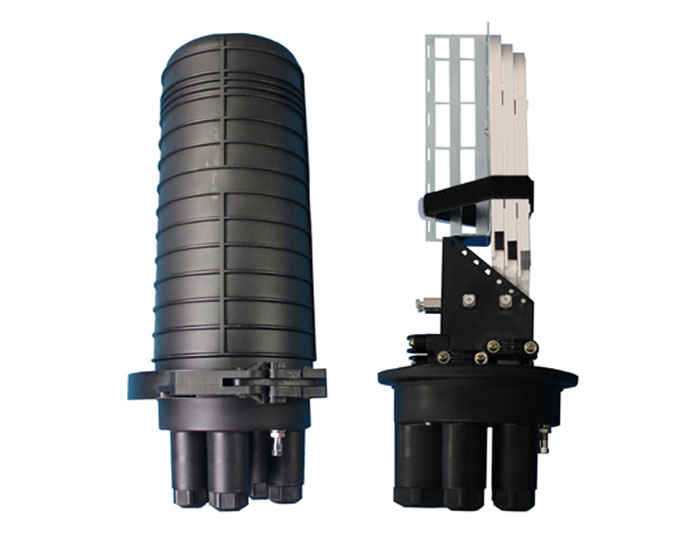

RGP-TSB-207-32SC Dome FTTH Fiber Optic Splice Closure is a compact and flexible closure that provides for connections between fiber optic cable and passive optical splitters in the outside Plant. The Closure has one large round port for express cable applications and four small round cable ports, the closure features an O-ring sealing system along with an innovative latching/locking mechanism. This combination is designed to allow simple, watertight closure. Utilizes mechanical sealing technology for cable sealing which helps provide a watertight seal.


The closure can be mounted to support aerial, buried, and underground applications. It offers a robust, user-friendly, and cost-effective solution for connecting feeder and distribution cables via optical splitters in the FTTP network and is distinctive for such applications as rural and brownfield deployments. The unique design of the sealed fiber distribution closure supports the needs of discrete and varied deployment options and provides for rapid network installation and service turn-up.


An optional built-in air valve is designed to allow flash testing.

Closure Material : MPP - Modified P.P

Closure Seal Material : Innovative latching / locking O-ring closure sealing system.

Allow for Mini PLC Splitter functionality.
Max for 32 SC simplex adaptors.

Max for 32 drop cable.

Splitter types supported: 1x32, 1x16, 1x8, 1x4, 1x2 etc PLC Splitter.

Splitters are easy to insert and remove without a affecting adjacent splitters.


Accept cut, uncut and taut sheath applications

Accept all fiber optic cable

Sheath retention & central strength member termination system included

Ribbed closure construction-lightweight plastic offers strength and resistance to chemical and U.V attack.

Mechanical sealing.


Hinged tray design, Splice trays can be easily increased and reduced according to capacity.

Modular splice holder design.

Closure can be flash tested.

Protection level: IP68.

RoHS compliance.



Aerial mounting.

Pole Mounting.

Buried, Under-ground.

Vault, Handhole & Manhole.


Configuration

Standard Accessories:

ItemNameUsageQuantity
1FOSC CoverProtecting fiber cable splices in whole1 pc
2FOSC BaseFixing internal and external structure1 pc
3Splice cassetteFixing heat shrink protective sleeve and holding fibersMax. 3 trays (Configuration as per capacity)
4Fiber Holding TrayHolding fibers with protective coatN/A
5Pressure Testing ValveAfter inject air, it is used for  pressure testing and sealing testingConfiguration as per requirement.
6Earthing Deriving DeviceDeriving metallic parts of fiber cables in FOSC for earthing connectionConfiguration as per requirement.
7Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
8Adapter PanelTo install fiber optical adaterSame as capacity
9Nylon TieTo fix buffer tubes with fibers insideSame as capacity
10Grounding WireTo connect with grounding device1pc
11Abrasive ClothTo polish fiber optic cable1pc
12Labelling PaperTo label fibers1 pc
13Buffer TubeTo protect fibers and be fixed on splice trays1 pc
14Installation bolts and nutsTo fix splice cassette1 pc


Optional Accessories:

Pole Mounting Kits, Earthing Deriving Device, Air Valve.


Shipping Infomation

SpecificationSizePcs/CartonWeight
Internal Carton Box455mmx235mmx235mm1 pc6.0 KGS
Outside Carton Box730mmx480mmx460mm6 pcs24.0 KGS


Order Information:

Model NoSplice TraySpliced fiber storage capacity(single fusion)Size(mm)Height x diameterCable portsPLC SplitterMax. diameter of cable(mm)
RGP-TSB-207A-32SC

Tray 201A

Capacity: 24F, Can hold 3 Trays

72 Splices

(3x24 splices)

450mm x230 mm1 large round port + 4 round ports1x32, 1x 16 PLC, 1x8 splitter, Can Hold 36 pcs SC Adaptors

1 large round port: for 1 loop cable with max dia 17.mm.

4 round ports: each port for 1 cable with max dia 17.5mm

or each port for 8 pcs of drop cable with diameter 2x3.1 mm, 3x3mm

or 6 pcs of drop cables with diameter 2x5mm, 2x3.1mm, 3x3mm

or 4 pcs of cables with diameter 7mm

RGP-TSB-207B-32SC

Tray 201B

Capacity: 24F, Can hold 3 Trays

72 Splices

(3x24 splices)
