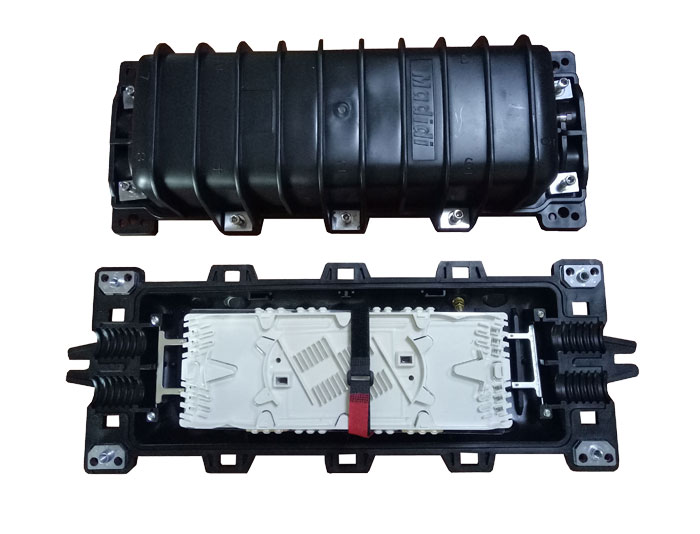

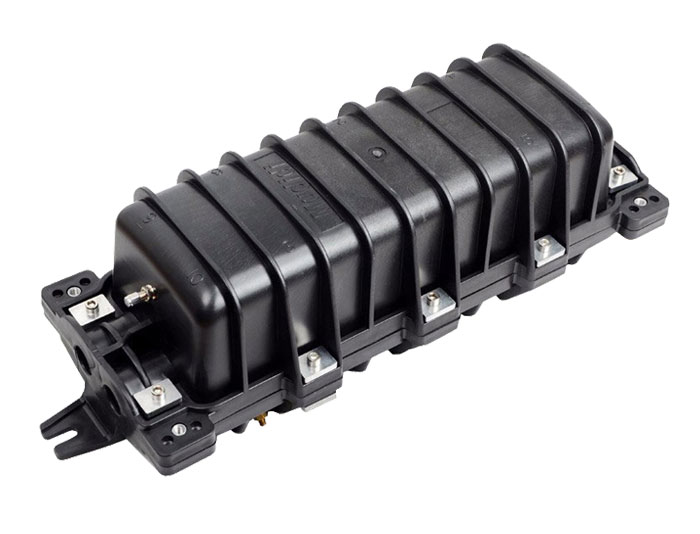

Horizontal Fiber Optic Splice Closure (RGP-TSB-104B), It made of plastic molded parts and has a new gasket seal making them ideal for a wide variety of applications. RGP-TSB-104B Closure adopt 4 Round Port design, 2 Inlet & 2 Outlet.
A reusable gasket makes tool-less re-entry easy, while bolted halves provide greater security than that of dome closures, you can re-enter, re-configure and add or remove cables in all outside plant and inside plant environments. Can be effectively used in nearly any environment including aerial (pole and strand) mount, central office vault, manhole, pedestal, and handhole.
Fiber Optic Splice Closure | Fiber Joint Closure | MJADOM
Closure Material: MPP-Modified P.P.
Closure Seal Material: Vulcanized silicone rubber.
May be used for cut, uncut and taut sheath applications.
Flexible drop or cable addition.
Sheath retention & central strength member fasten system included.
Ribbed closure construction and lightweight plastic provide strength and resistance to chemical and U.V attack.
The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable and fiber can be operated individually.
Bolted halves & Gasket seals design.
Unique strength member clamp assembly & Spacious fiber management areas.
Compatible with most common cable types: e.g. Loose tube, central core, slotted core, ribbon fiber.
Protection class: IP68.
RoHS compliance.
Reusable & Re-entry Test.
Aerial (pole and strand) mounting.
Under-ground.
Pedestal & handhole & manhole direct buried applications.
