144 Core Heat Shrinkable Dome Fiber Optic Splice Closure TSB-206B

Publisher: MJADOM

Author: Andy

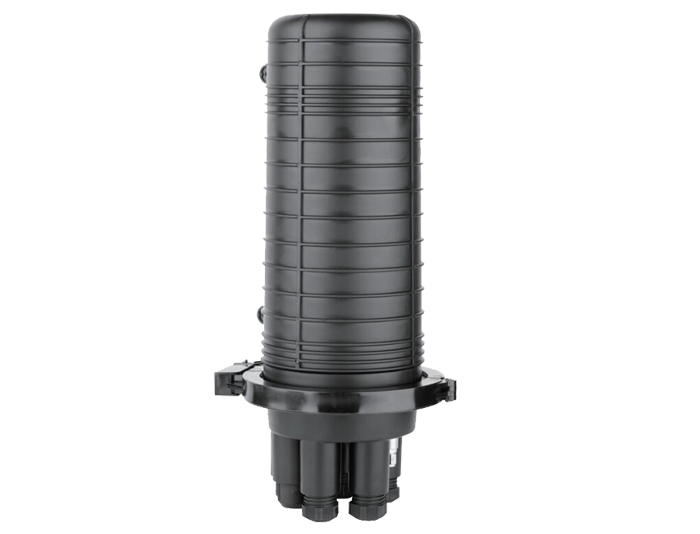

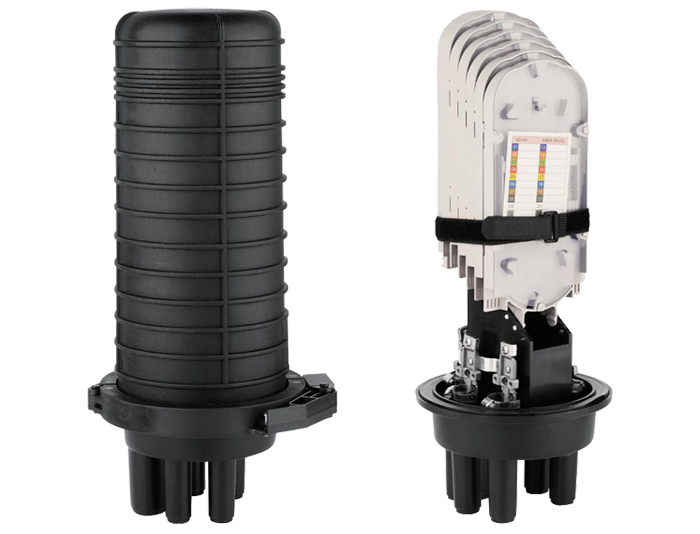

RGP-TSB-206B 144 Core Heat Shrinkable Dome Fiber Optic Splice Closure have one oval port for express cable applications and four round cable ports, the dome closure features an O-ring sealing system along with an innovative latching/locking mechanism. Utilizes heat shrinkable tubing technology for cable sealing which helps provide a watertight seal.



Description:


RGP-TSB-206B 144 Core Heat Shrinkable Dome Fiber Optic Splice Closure have one oval port for express cable applications and four round cable ports, the dome closure features an O-ring sealing system along with an innovative latching/locking mechanism. This combination is designed to allow simple, watertight closure. Utilizes heat shrinkable tubing technology for cable sealing which helps provide a watertight seal.

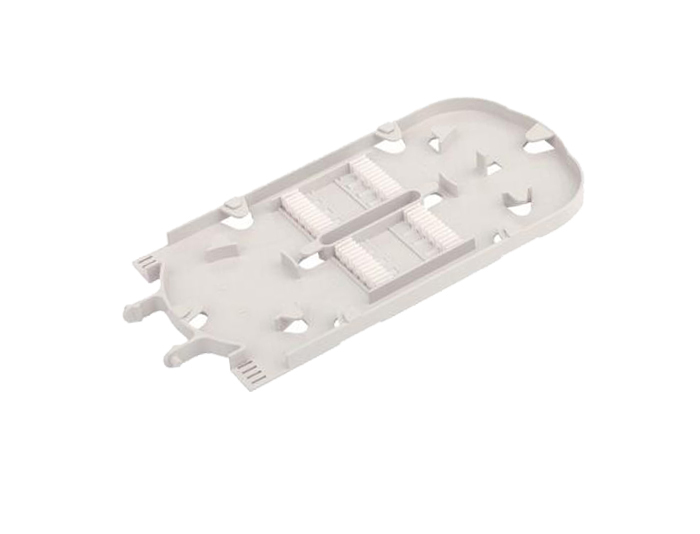

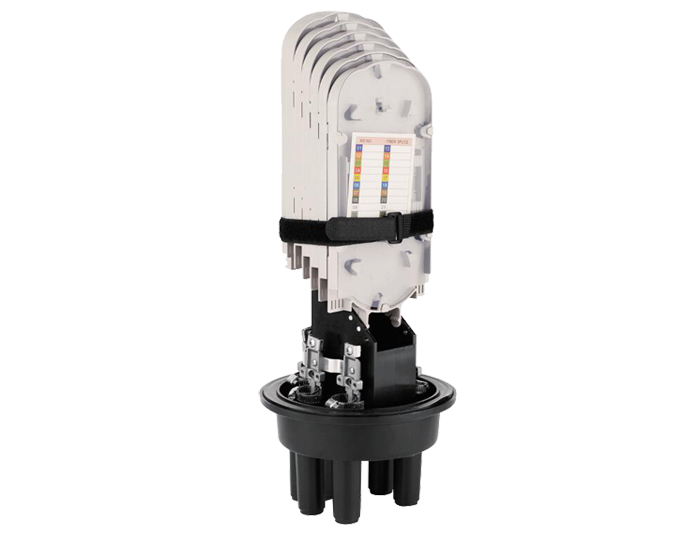

The closure fiber optic is equipped with a built-in fiber management system which provides a separate area for storing, fiber optic cabling, protecting, and "expressing" buffer tubes, singles and ribbon fibers. The hinged splice trays include a modular splice holder design which allows them to accept single fusion, single mechanical, and various mass fusion splice (4-,6-,8- and 12- fiber ribbon) by simply replacing the splice holder.

An optional built-in air valve is designed to allow flash testing.



Feature:


Closure Material: MPP-Modified P.P.

Closure Seal Material : Innovative latching / locking O-ring closure sealing system.

May be used for all fiber cable.

May be used for cut, uncut and taut sheath applications.

Sheath retention & central strength member fasten system included.

Built-in integral multipurpose fiber storage system.



Heat shrinkable tubing seal.

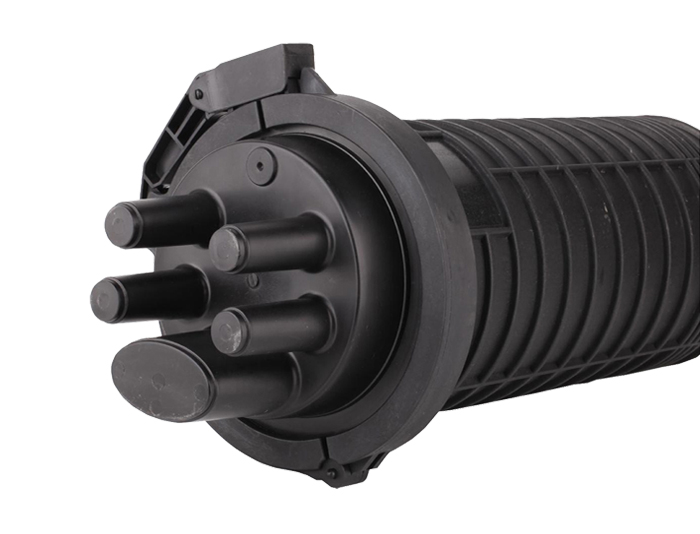

1 oval hole and 4 round holes for cable entrance.

Maximum capacity: 144 Fibers (6 trays,24 fiber/tray)

Applicable Splitter: 1x8 or 1x16 PLC Splitter can be installed in each splice tray as option.



Hinged tray design, Splice trays can be easily increased and reduced according to capacity.

Modular splice holder design.

Installation and reentry with a minimum of tools.

Closure can be flash tested.

Protection class: IP68.

RoHS compliance.



Applications:
Aerial mounting, Wall Mounting, Pole Mounting, Buried, Under-ground, Vault, Handhole & Manhole.


Configuration

Standard Accessories:


ItemNameUsageQuantity
1FOSC CoverProtecting fiber cable splices in whole1 pc
2FOSC BaseFixing internal and external structure1 pc
3Splice cassetteFixing heat shrink protective sleeve and holding fibersMax. 6 trays (Configuration as per capacity)
4Fiber Holding TrayHolding fibers with protective coatN/A
5Pressure Testing ValveAfter inject air, it is used for pressure testing and sealing testingConfiguration as per requirement.
6Earthing Deriving DeviceDeriving metallic parts of fiber cables in FOSC for earthing connectionConfiguration as per requirement.
7Fiber Splice Protective SleevesTo protect fiber splicesSame as capacity
8Nylon TieTo fix buffer tubes with fibers insideSame as capacity
9Grounding WireTo connect with grounding device1pc
10Abrasive ClothTo polish fiber optic cable1pc
11Labelling PaperTo label fibers1 pc
12Buffer TubeTo protect fibers and be fixed on splice trays1 pc



Shipping Information:

SpecificationSizePcs/Carton Weight
Internal Carton Box460mmx Ø210mm1 pc    3.5 KGS
Outside Carton Box600mmx490mmx490mm6 pcs21.5 KGS


Configuration :

Model No.Splice TraySpliced fiber storage capacitySize(mm)L*W*HCable portsMax. diameter of cable(mm)
 RGP-TSB-206B

Tray 206B

Capacity : 24 splices

144 Splices (6x24 Splices) 450mmx210mm1 Oval Port + 4 Round Ports

1xOval port , Ø 10-18mm

4xRound port , Ø 8-18mm
